NSN 3110-00-190-9288 F993L01X1E9, Z993L01, Z993L01LR1E
Product Details | ANNULAR BALL BEARING
3110-00-190-9288 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: F993L01X1E9, Z993L01, Z993L01LR1E, Z993L01X1E9, Z993L01XR1CJ, Z993L01XRCJ, 12265576-2, 3090269000, 309-0269-000, 0192821, 019282-1, 101KSZZ0175, 101KSZZ01-75, 101KSZZ20GRS, 101KSZZQ5A7ANG25, 1101459622, 11014596-22, 116C387117, 116C3871-17, 4810911, 481091-1, 5682002, 5682-002, 56822, 5682-2, 6001.2RSRL15W, 60012RSJLK, 6001-2RSJLK, 60012RSRL15W, 6101KKF4G75, 7415940P025, 741594GP025, 9101NPPFS10160X, 9101NPPFS160, 9101NPPMILG3278, 9101NPPMILG3278A, 9101PPANG25, 9101PPFS10160, 9101PPFS160, 9101PPMILG3278A, 9175461, 993101X1522MILG3278A, 993L01X1292ANG25, 993L01X1292EP1, 993L01X1MILG3278, 993L01X1MILG3278A, 993L01XR1292E, 3110-00-190-9288, 00-190-9288, 3110001909288, 122655762, 001909288
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-190-9288 | 00014 ( BEARING, BALL, ANNULAR ) |

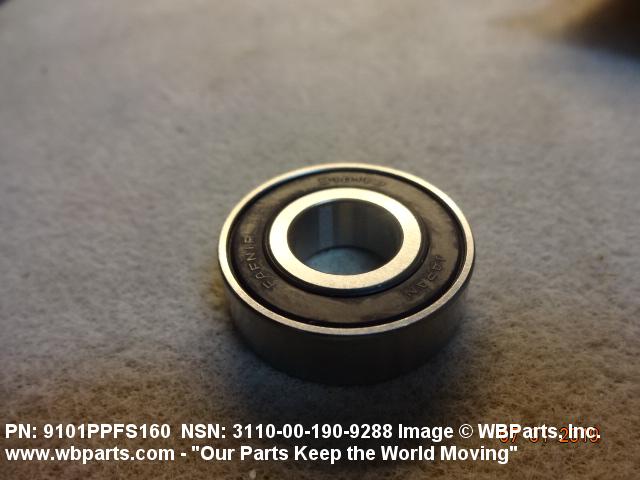

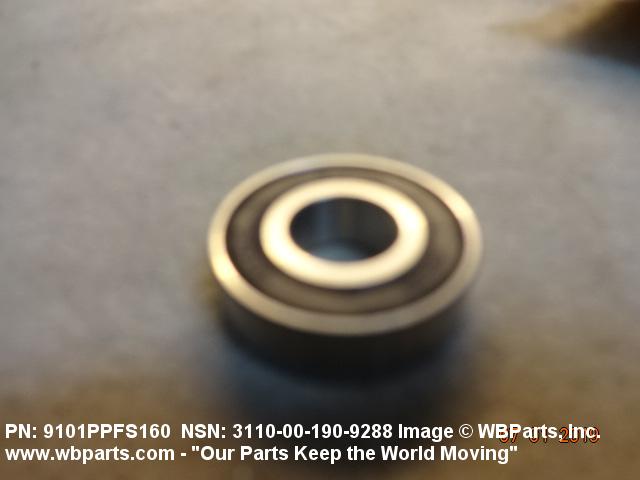

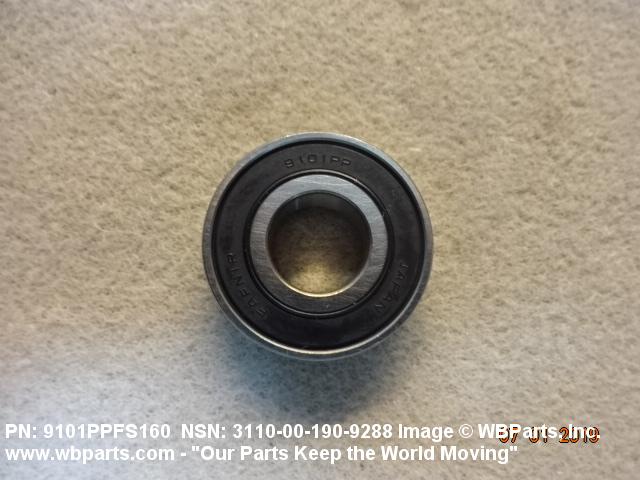

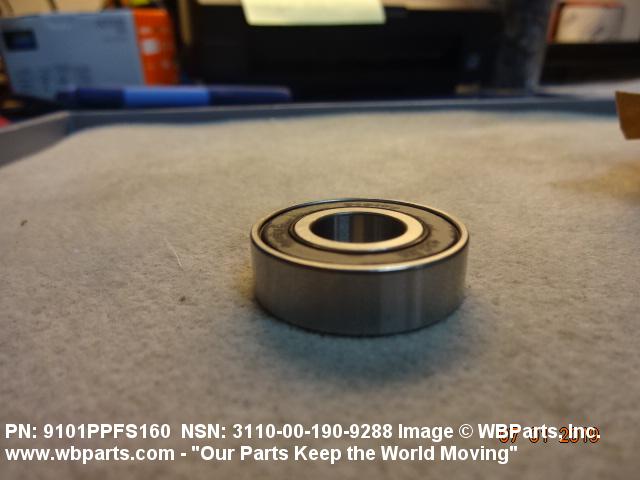

Drawings & Photos | NSN 3110-00-190-9288
Demand History | NSN 3110-00-190-9288
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 116C3871-17 | 2024-07-206 | 10 | DIBBS |
| 116C3871-17 | 2024-03-77 | 10 | DIBBS |
| 116C3871-17 | 2024-01-17 | 139 | DIBBS |
| 116C3871-17 | 2024-01-09 | 139 | DIBBS |
| 122655762 | 2019-12-353 | 1 | UK |
| 116C387117 | 2019-06-171 | 2 | United States |
| 9101PPFS160 | 2019-06-171 | 2 | United States |
| 3110-00-190-9288 | 2015-09-262 | 70 | DIBBS |
| 3110-00-190-9288 | 2015-09-253 | 70 | DIBBS |
| 3110-00-190-9288 | 2015-09-245 | 130 | DIBBS |
| 3110-00-190-9288 | 2015-06-155 | 132 | DIBBS |
| 3110-00-190-9288 | 2015-03-85 | 35 | DIBBS |
| 3110-00-190-9288 | 2015-03-70 | 20 | DIBBS |
| 3110-00-190-9288 | 2014-09-247 | 30 | DIBBS |
| 101KSZZ0175 | 2013-06-163 | 20 | PH |
| 3110-00-190-9288 | 2013-06-163 | 20 | PH |
| 3110-00-190-9288 | 2013-06-160 | 20 | Philippines |
| 0192821 | 2013-06-158 | 20 | PH |
| 3110-00-190-9288 | 2012-12-353 | 817 | DIBBS |
| 3110-00-190-9288 | 2011-11-307 | 500 | DIBBS |
| 3110-00-190-9288 | 2011-10-301 | 45 | US |
| 3110-00-190-9288 | 2011-10-284 | 500 | DIBBS |
| 3110-00-190-9288 | 2011-09-270 | 124 | DIBBS |
| 3110-00-190-9288 | 2011-08-227 | 230 | DIBBS |
| 3110-00-190-9288 | 2011-06-181 | 9 | DIBBS |
| 3110-00-190-9288 | 2011-06-161 | 101 | DIBBS |
| 3110-00-190-9288 | 2010-12-363 | 130 | DIBBS |
| 3110-00-190-9288 | 2009-04-93 | 291 | DIBBS |
| 3110-00-190-9288 | 2008-12-344 | 154 | DIBBS |
| 3110-00-190-9288 | 2008-09-247 | 239 | DIBBS |
| 3110-00-190-9288 | 2008-06-177 | 106 | DIBBS |
| 3110-00-190-9288 | 2008-04-106 | 75 | DIBBS |
| 993101X1522MILG3278A | 2007-08-233 | 30 | US |
| 3110-00-190-9288 | 2007-08-213 | 156 | DIBBS |
| 3110-00-190-9288 | 2007-07-187 | 112 | DIBBS |
| 3110-00-190-9288 | 2007-04-102 | 166 | DIBBS |
| 3110-00-190-9288 | 2007-02-41 | 202 | DIBBS |
| 3110-00-190-9288 | 2007-01-31 | 115 | DIBBS |
Cross Reference | NSN 3110-00-190-9288
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 019282-1 | 15901 | SPECTROLAB, INC. |
| 101KSZZ01-75 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 101KSZZ20GRS | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 101KSZZQ5A7ANG25 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 11014596-22 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| 116C3871-17 | 05606 | GENERAL DYNAMICS-OTS, INC. DBA GD-OTS (WILLISTON) |
| 116C3871-17 | 09721 | GENERAL BEARING CORP |
| 116C3871-17 | 15901 | SPECTROLAB, INC. |
| 116C3871-17 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| 116C3871-17 | 43991 | FAG BEARINGS CORPORATION |
| 116C3871-17 | 50294 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB |
| 116C3871-17 | 52676 | SKF USA INC. |
| 116C3871-17 | 83086 | NEW HAMPSHIRE BALL BEARINGS, INC. DIV HITECH DIVISION |
| 12265576-2 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 309-0269-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 481091-1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 5682-002 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 5682-2 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 6001-2RSJLK | 52676 | SKF USA INC. |
| 6001.2RSRL15W | 43991 | FAG BEARINGS CORPORATION |
| 6101KKF4G75 | 43991 | FAG BEARINGS CORPORATION |
| 7415940P025 | 24446 | GENERAL ELECTRIC CO |
| 741594GP025 | 24446 | GENERAL ELECTRIC CO |
| 9101NPPFS10160X | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 9101NPPFS10160X | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| 9101NPPFS160 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 9101NPPFS160 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| 9101NPPMILG3278 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 9101NPPMILG3278 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| 9101NPPMILG3278A | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 9101NPPMILG3278A | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| 9101PPANG25 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 9101PPANG25 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| 9101PPFS10160 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 9101PPFS10160 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| 9101PPFS160 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 9101PPFS160 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| 9101PPMILG3278A | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 9101PPMILG3278A | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| 9175461 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 993101X1522MILG3278A | 24617 | GENERAL MOTORS CORP |
| 993101X1522MILG3278A | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| 993L01X1292ANG25 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| 993L01X1292EP1 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| 993L01X1MILG3278 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| 993L01X1MILG3278A | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| 993L01XR1292E | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| F993L01X1E9 | 24617 | GENERAL MOTORS CORP |
| F993L01X1E9 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| Z993L01 | 24617 | GENERAL MOTORS CORP |
| Z993L01 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| Z993L01LR1E | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| Z993L01X1E9 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| Z993L01XR1CJ | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| Z993L01XRCJ | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-190-9288
Related Products | NSN 3110-00-190-9288
Technical Data | NSN 3110-00-190-9288
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING STEEL RETAINER RUBBER SYNTHETIC SEAL |
| STYLE DESIGNATOR | 10A NON-LOADING GROOVE, NON-SEPARABLE |

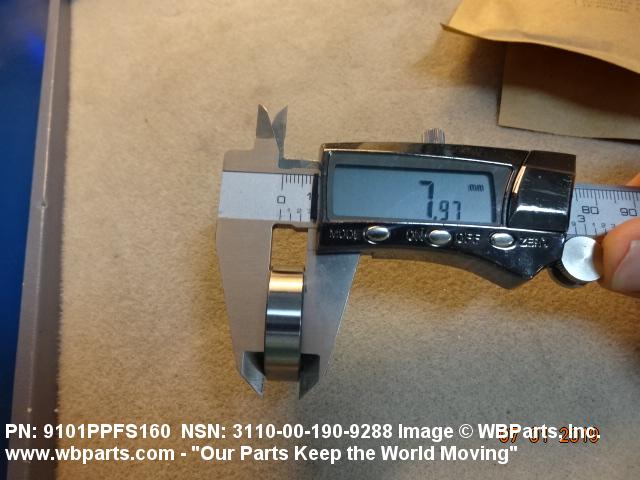

| OVERALL WIDTH | 8.0 MILLIMETERS NOMINAL |

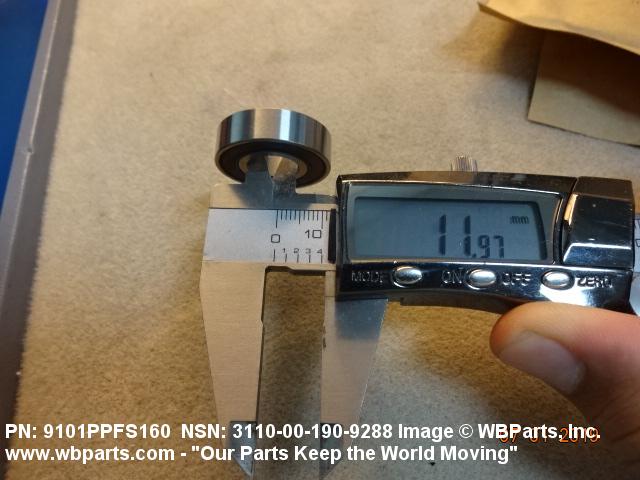

| BORE DIAMETER | 12.00 MILLIMETERS NOMINAL |

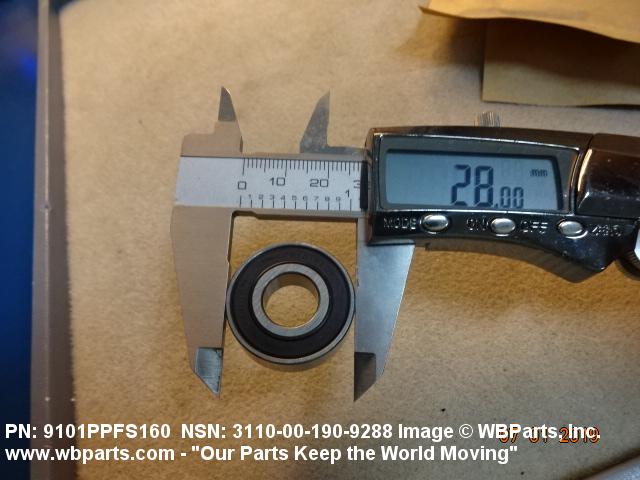

| OVERALL OUTSIDE DIAMETER | 28.00 MILLIMETERS NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
Restrictions/Controls & Freight Information | NSN 3110-00-190-9288
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-190-9288
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
