Product Details | BEARING BALL

3110-00-188-2863 A homogenous spherical body, a series of which provides the rolling elements in a BEARING, BALL (as modified). The item is designed primarily to alleviate friction. It may have other usages such as the checking component in a ball-type check valve. Excludes BALL, CHECK; BALL, VALVE, PORTED.

Part Alternates: AAF216CP24, AN216C224, AN216C2-24, SP323, 1X19, 216C224, 216C2-24, 216CP24, 38STAINLESSSTEELBALLGRADE2, 3-8STAINLESSSTEELBALLGRADE2, 9044010003, 9-044-01-0003, 999750240200, 999-75024-0200, 3110-00-188-2863, 00-188-2863, 3110001882863, 001882863

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG) NSN Assign. NIIN
31 01 JAN 1963 00-188-2863

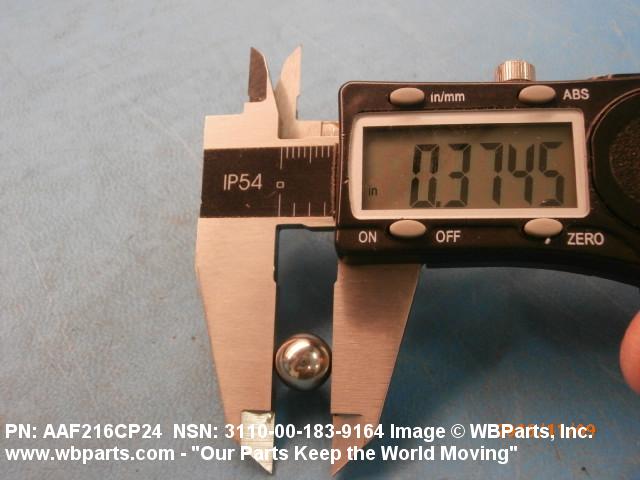

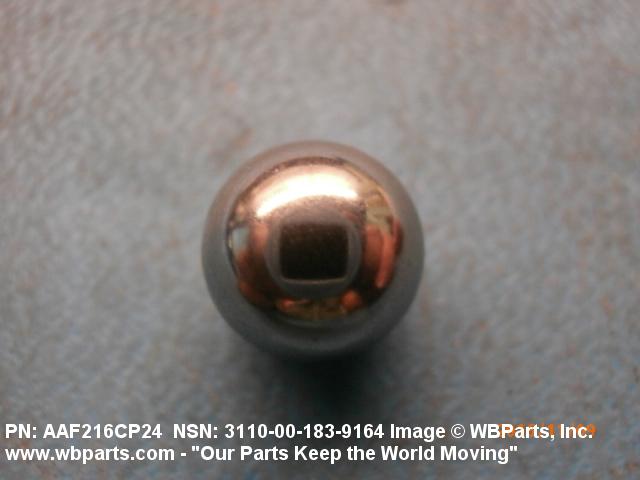

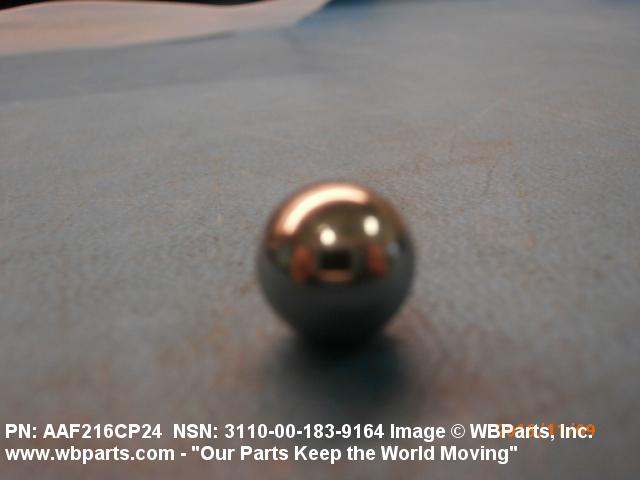

Drawings & Photos | NSN 3110-00-188-2863


Demand History | NSN 3110-00-188-2863

Part Number Request Date QTY Origin
AAF216CP24 2016-09-273 6 United States
AAF216CP24 2016-08-223 6 United States
216CP24 2012-07-207 1 United States

Cross Reference | NSN 3110-00-188-2863

Part Number Cage Code Manufacturer
1X19 60506 LUBRIQUIP INC DBA LUBRIQUIP INC. A UNIT OF IDEX
216C2-24 88042 ARMY AIR FORCE DRAWINGS UNDER CUSTODIANSHIP OF THE AIR
216CP24 80049 DEPARTMENT OF THE AIR FORCE
216CP24 88042 ARMY AIR FORCE DRAWINGS UNDER CUSTODIANSHIP OF THE AIR
3-8STAINLESSSTEELBALLGRADE2 52676 SKF USA INC.
9-044-01-0003 00742 AIR PRODUCTS AND CHEMICALS, INC. DBA AIR PRODUCTS
999-75024-0200 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
AAF216CP24 07878 AERONAUTICAL AND SUPPORT EQUIPMENT TYPE DESIGNATION SYSTEM /ASETDS/
AN216C2-24 88042 ARMY AIR FORCE DRAWINGS UNDER CUSTODIANSHIP OF THE AIR
SP323 94592 FLUID CONDITIONING PRODUCTS, INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-188-2863

Technical Data | NSN 3110-00-188-2863

Characteristic Specifications
MATERIAL STEEL CORROSION RESISTING OVERALL
ROLLING ELEMENT DIAMETER 0.3750 INCHES NOMINAL
SPECIAL FEATURES METALLIC HARDNESS RATING ROCKWELL C MIN 50.0 IN. AND MAX 58.0 IN.
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE 999-75024-0200

Restrictions/Controls & Freight Information | NSN 3110-00-188-2863

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 114820 BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating P 77.5
Less than truck load rating P 77.5
Water commodity Code 742 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
