NSN 3110-00-179-7299 V211WI5MBRA1122, X60434, 2060401301
Product Details | STACK BALL BEARING
3110-00-179-7299 A multiple assembly of more than two bearings matched for duplex mounting. Designed primarily for aircraft propeller and rotary wing aircraft rotor blade applications. See also BEARING, BALL, ANNULAR.
Part Alternates: V211WI5MBRA1122, X60434, 2060401301, 206-040-130-1, 3110-00-179-7299, 00-179-7299, 3110001797299, 001797299
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 19 FEB 1969 | 00-179-7299 | 30214 ( BEARING, BALL, STACK ) |

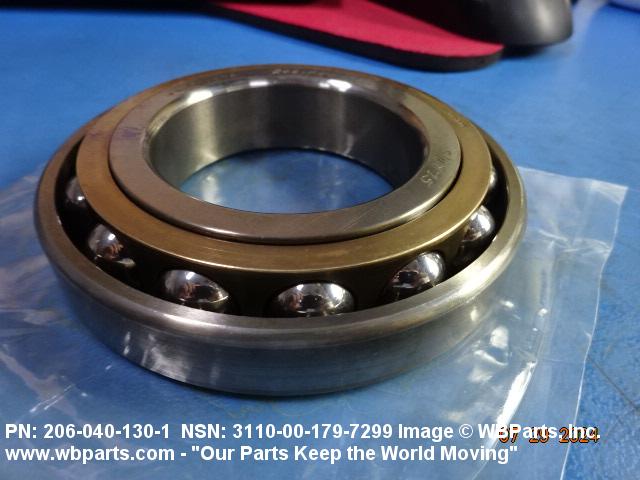

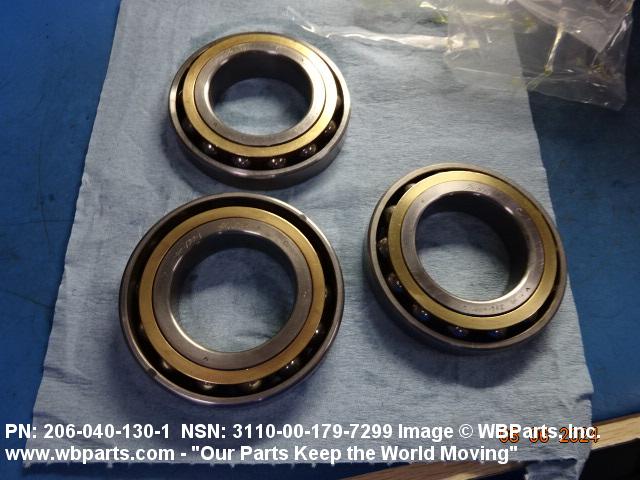

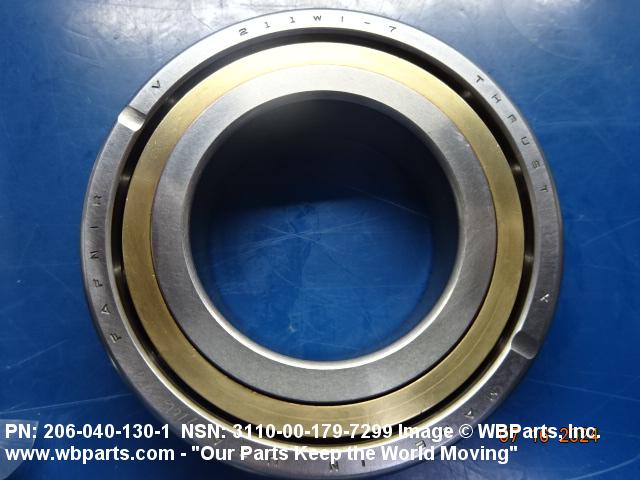

Drawings & Photos | NSN 3110-00-179-7299
Demand History | NSN 3110-00-179-7299
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-179-7299 | 2024-06-165 | 1 | United States |
| 3110-00-179-7299 | 2017-06-157 | 6 | DIBBS |
| 3110-00-179-7299 | 2017-02-55 | 6 | DIBBS |
| 3110-00-179-7299 | 2017-02-43 | 6 | DIBBS |
| 3110-00-179-7299 | 2016-09-251 | 14 | DIBBS |
| 2060401301 | 2012-07-205 | 3 | US |
| 3110-00-179-7299 | 2011-08-220 | 32 | DIBBS |
| 3110-00-179-7299 | 2011-06-175 | 25 | DIBBS |
| 3110-00-179-7299 | 2011-05-123 | 19 | DIBBS |
| 3110-00-179-7299 | 2011-01-28 | 3 | DIBBS |
Cross Reference | NSN 3110-00-179-7299
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-179-7299
Related Products | NSN 3110-00-179-7299
Technical Data | NSN 3110-00-179-7299
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING COPPER ALLOY 864 RETAINER |
| MATERIAL DOCUMENT AND CLASSIFICATION | FED-STD-66, FED STD SINGLE MATERIAL RESPONSE BALL FED-STD-66, FED STD SINGLE MATERIAL RESPONSE INNER RING FED STD-66, FED STD SINGLE MATERIAL RESPONSE OUTER RING ASTM-B-147,81346 ASSN STD SINGLE MATERIAL RESPONSE RETAINER |
| STYLE DESIGNATOR | 224 STACK |
| OVERALL WIDTH | 2.4503 INCHES MINIMUM AND 2.4803 INCHES MAXIMUM |
| BORE DIAMETER | 2.1651 INCHES MINIMUM AND 2.1654 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 3.9367 INCHES MINIMUM AND 3.9370 INCHES MAXIMUM |
| STACK ARRANGEMENT | 3 ANGULAR CONTACT BEARINGS,2 TANDEM MTD,1 REVERSED |
| SPECIAL FEATURES | STABILIZED FOR OPERATION FROM M65 DEG F TO P300 DEG F,ASSY RELATIONSHIP MARKING (V) ON OD OF BEARING ELEMENTS,SAME SER NO. PERMANENTLY MARKED ON ALL BEARING ELEMENTS |
| TEST DATA DOCUMENT | 21335-APS-33 SPECIFICATION AND 21335-APS-36A SPECIFICATION AND 38443-AES-1A05 SPECIFICATION AND 38443-AES-10A9 SPECIFICATION |
| MANUFACTURERS CODE | 97499 |
| MFR SOURCE CONTROLLING REFERENCE | 206-040-130-1 |
Restrictions/Controls & Freight Information | NSN 3110-00-179-7299
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-179-7299
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BP | OH-58A and OH-58C |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
