NSN 3110-00-159-9061 AA59646, A-A-59646, A-A-59646/08ACEB
Product Details | ANNULAR BALL BEARING
3110-00-159-9061 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: AA59646, A-A-59646, A-A-59646/08ACEB , A-A-59646/08ECEB , AA5964608ACEB, AA5964608ECEB, FF-B-2844/06, FF-B-2844/06CD1BG, FFB284406, FFB284406CD1BG, 710192, 3110-00-159-9061, 00-159-9061, 3110001599061, 001599061
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-159-9061 | 00014 ( BEARING, BALL, ANNULAR ) |

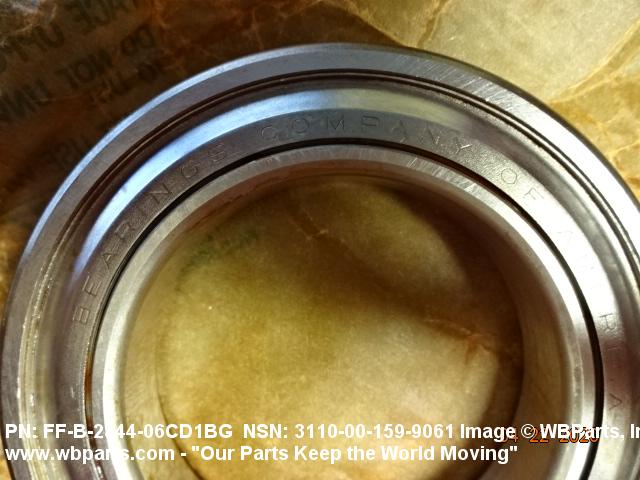

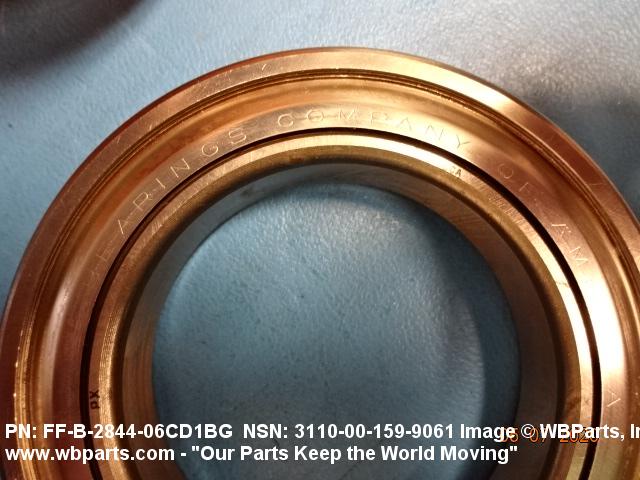

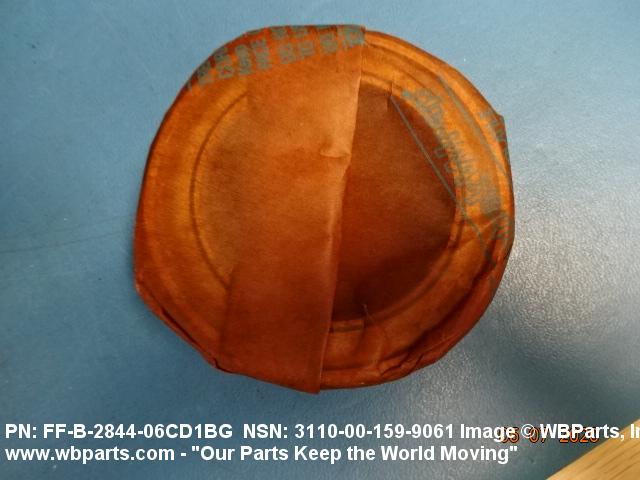

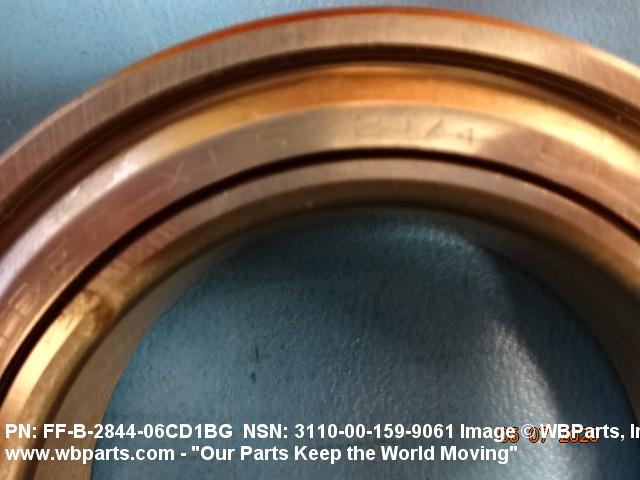

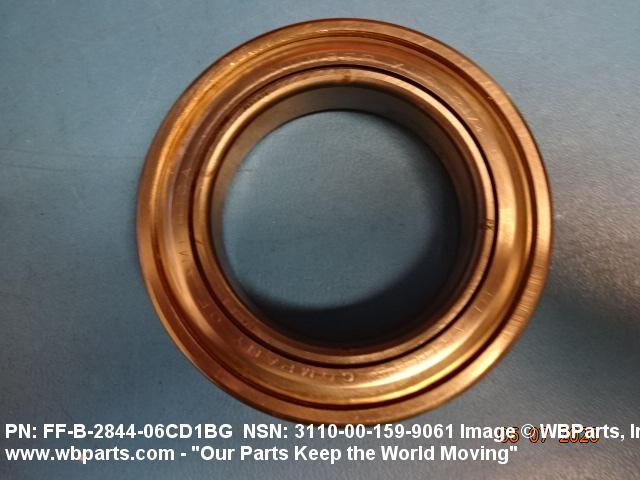

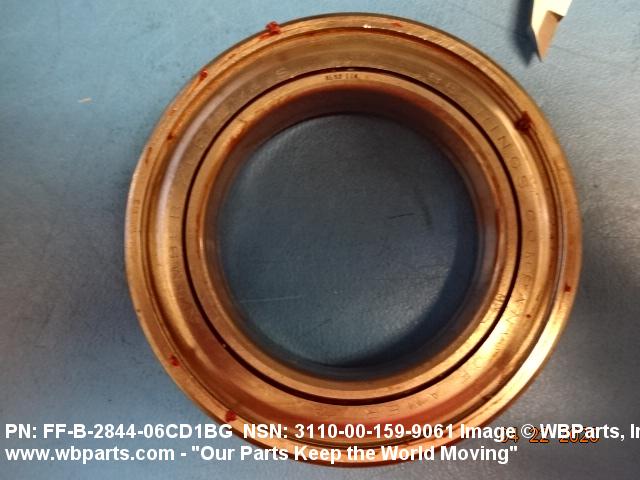

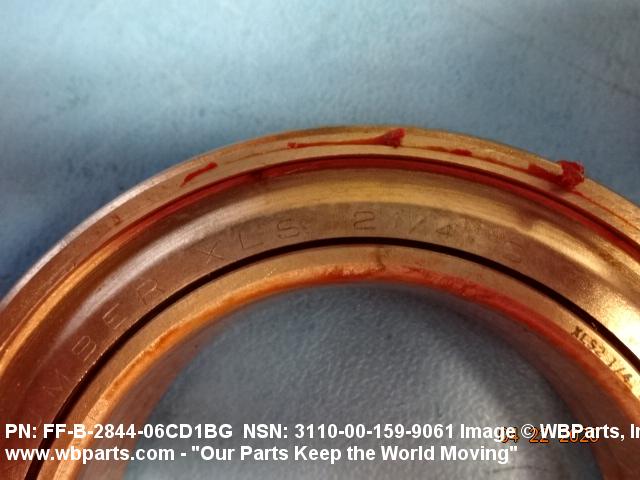

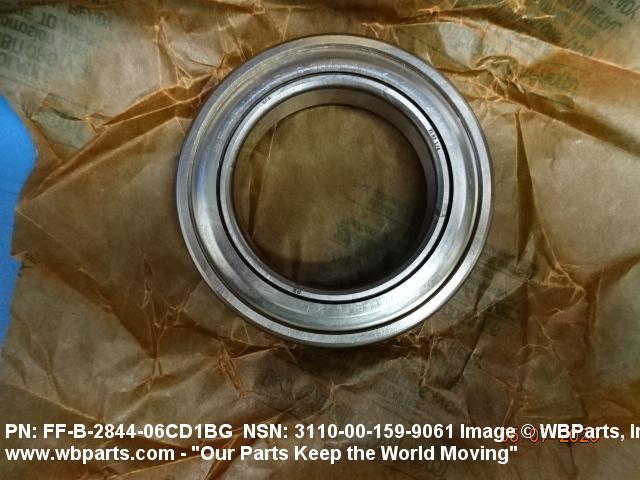

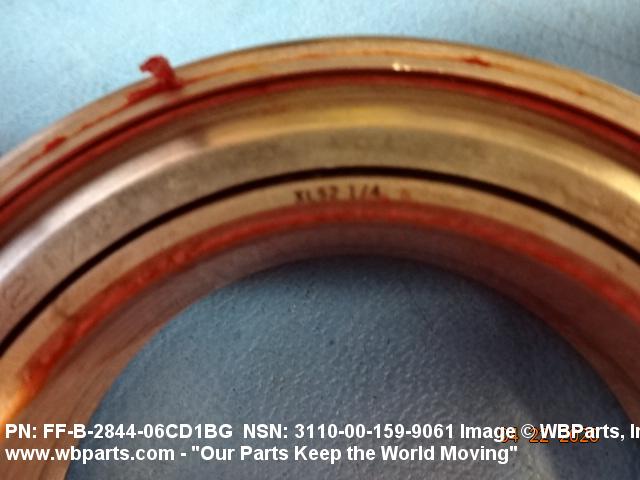

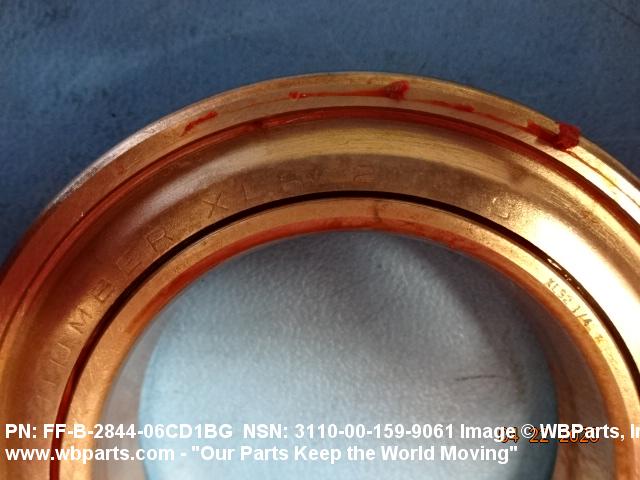

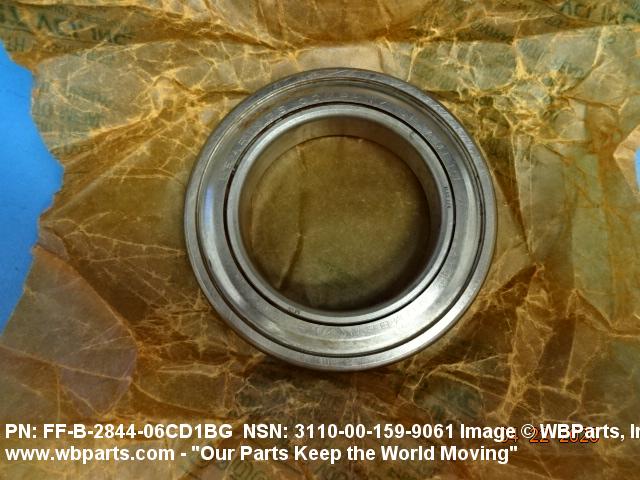

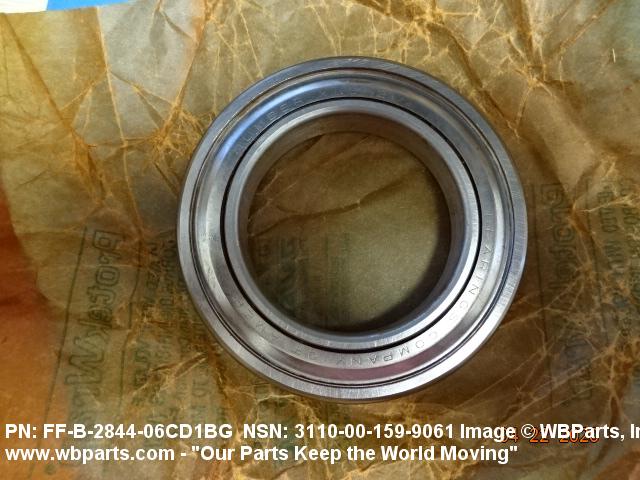

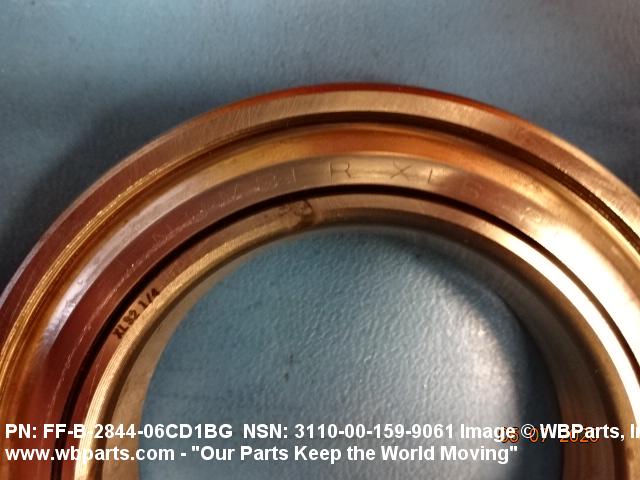

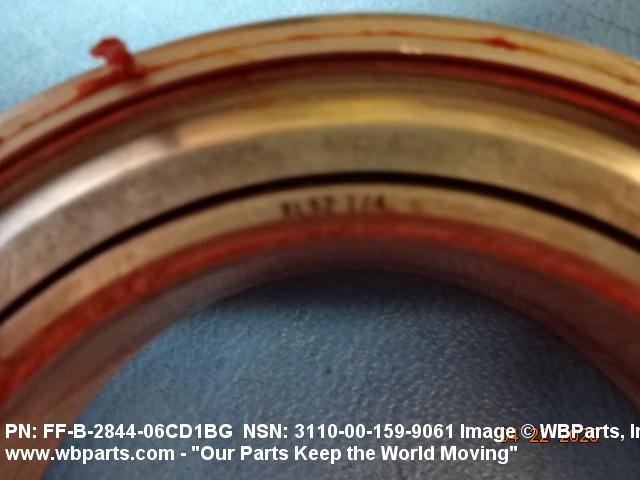

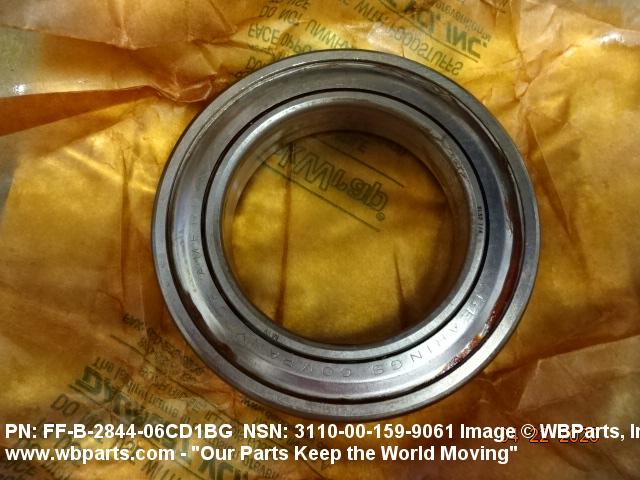

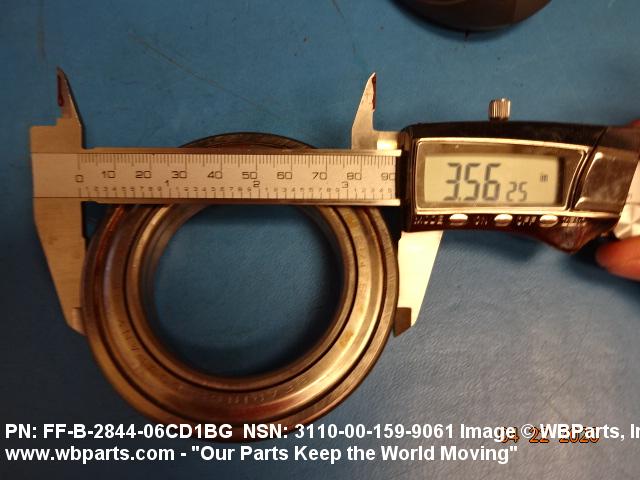

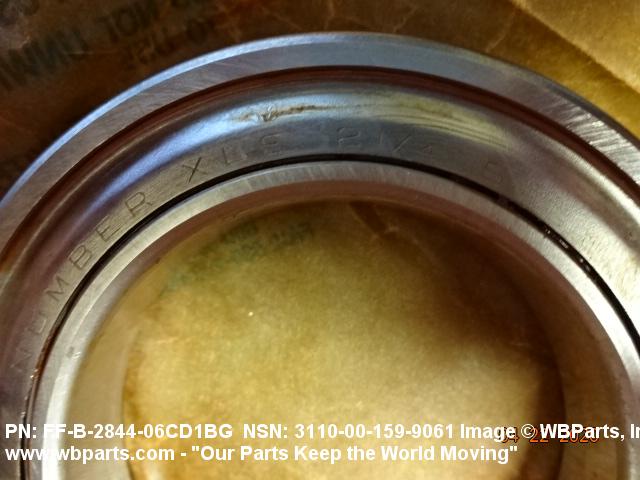

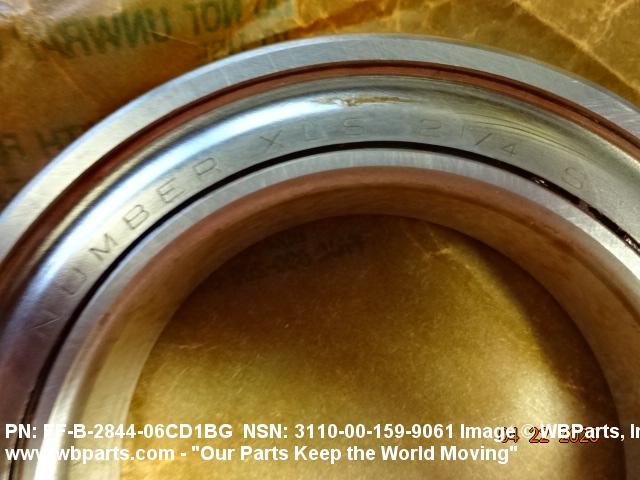

Drawings & Photos | NSN 3110-00-159-9061
Demand History | NSN 3110-00-159-9061
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-159-9061 | 2023-05-150 | 7 | DIBBS |
| 3110-00-159-9061 | 2023-04-102 | 3 | United States |
| 3110-00-159-9061 | 2021-08-228 | 7 | United States |
| 3110-00-159-9061 | 2021-04-97 | 13 | United States |
| 3110-00-159-9061 | 2021-01-22 | 7 | DIBBS |
| 3110-00-159-9061 | 2020-12-355 | 7 | DIBBS |
| 3110-00-159-9061 | 2020-11-328 | 13 | DIBBS |
| 3110-00-159-9061 | 2020-10-294 | 13 | DIBBS |
| 3110-00-159-9061 | 2020-04-108 | 13 | United States |
| 3110-00-159-9061 | 2019-11-329 | 7 | DIBBS |
| 3110-00-159-9061 | 2019-11-321 | 7 | DIBBS |
| 3110-00-159-9061 | 2019-06-164 | 13 | DIBBS |
| 3110-00-159-9061 | 2019-06-155 | 13 | DIBBS |
| 3110-00-159-9061 | 2018-10-301 | 13 | DIBBS |
| 3110-00-159-9061 | 2014-08-227 | 20 | DIBBS |
| 3110-00-159-9061 | 2014-04-110 | 20 | DIBBS |
| 3110-00-159-9061 | 2014-03-64 | 20 | DIBBS |
| 3110-00-159-9061 | 2014-02-56 | 20 | DIBBS |
| 3110-00-159-9061 | 2013-12-356 | 20 | DIBBS |
| 3110-00-159-9061 | 2010-07-188 | 2 | Colombia |
Cross Reference | NSN 3110-00-159-9061
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 710192 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| A-A-59646 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A-A-59646/08ACEB | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A-A-59646/08ECEB | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| FF-B-2844/06 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| FF-B-2844/06CD1BG | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-159-9061
Related Products | NSN 3110-00-159-9061
Technical Data | NSN 3110-00-159-9061
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 10A NON-LOADING GROOVE, NON-SEPARABLE |

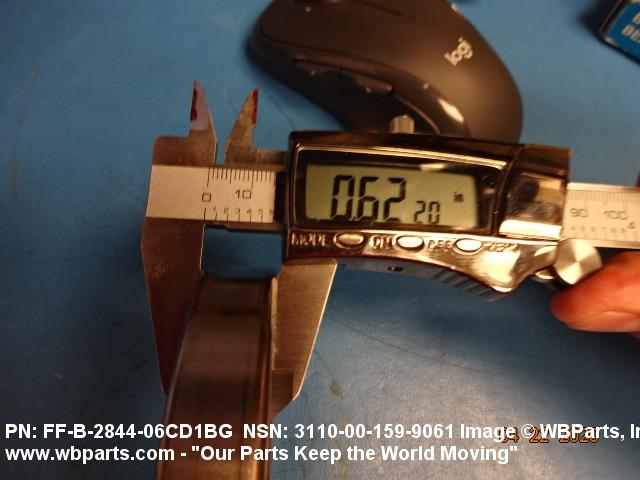

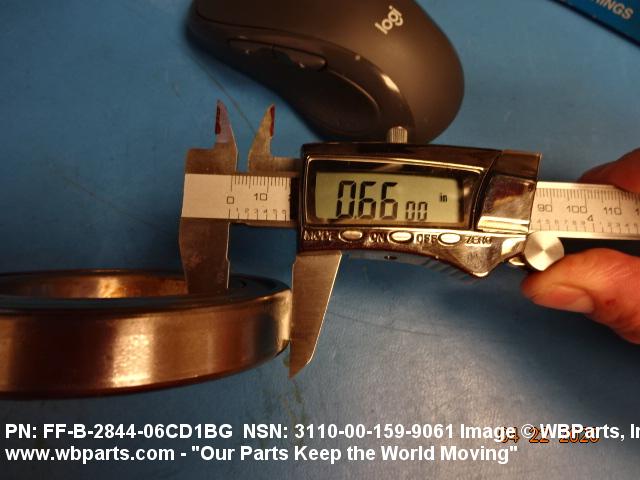

| OVERALL WIDTH | 0.6250 INCHES NOMINAL |
| BORE DIAMETER | 2.2500 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 3.5625 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | DOD-G-24508 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SHIELD QUANTITY | 2 |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 115 TYPE AND 00 GRADE |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY OVERALL OUTSIDE DIAMETER AND BY SHIELD,QUANTITY |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-59646 |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-B-2844/06 |
Restrictions/Controls & Freight Information | NSN 3110-00-159-9061
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-159-9061
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
