NSN 3110-00-158-6586 SDT023201, SDT-023-201, SDT21695
Product Details | THRUST ROLLER BEARING
3110-00-158-6586 An antifriction bearing having a roller rolling element, designed to resist axial thrust, or to support an axial load.
Part Alternates: SDT023201, SDT-023-201, SDT21695, 3110-00-158-6586, 00-158-6586, 3110001586586, 001586586
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-158-6586 | 00020 ( BEARING, ROLLER, THRUST ) |
Drawings & Photos | NSN 3110-00-158-6586
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-158-6586
Related Products | NSN 3110-00-158-6586
Technical Data | NSN 3110-00-158-6586
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL INNER WASHER STEEL OUTSIDE WASHERS STEEL OR COPPER ALLOY RETAINER STEEL ROLLER STEEL SLEEVE |

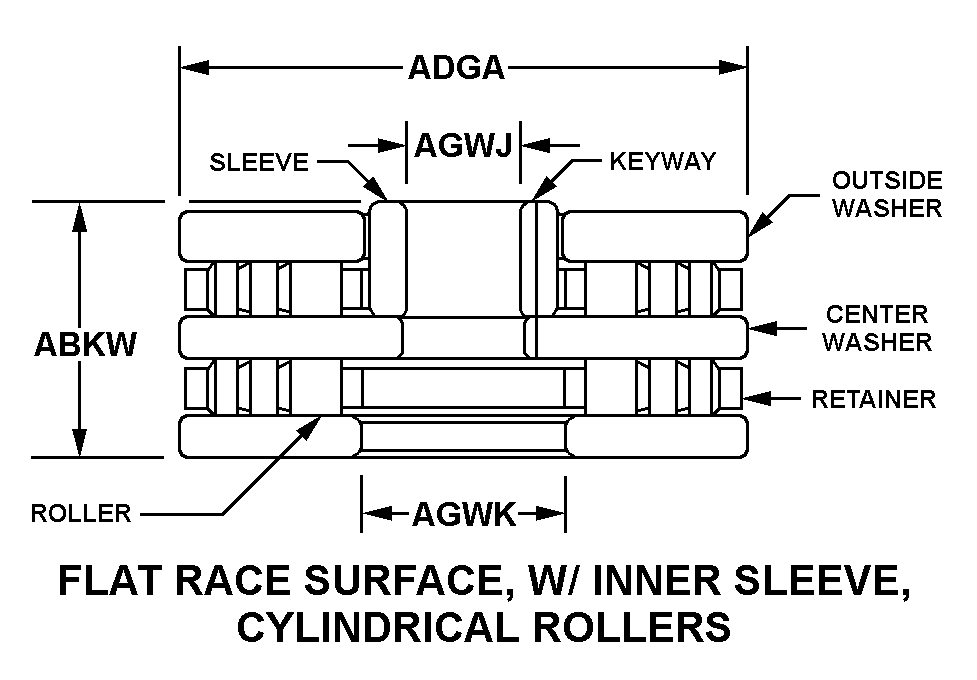

| STYLE DESIGNATOR | 332 FLAT RACE SURFACE, WITH INNER SLEEVE, CYLINDRICAL ROLLERS |
| OVERALL HEIGHT | 1.0030 INCHES MINIMUM AND 1.0050 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 5.0610 INCHES MINIMUM AND 5.0620 INCHES MAXIMUM |
| BORE SMALLEST DIAMETER | 2.2510 INCHES MINIMUM AND 2.2530 INCHES MAXIMUM |
| LARGEST BORE DIAMETER | ANY ACCEPTABLE |
| SURFACE FINISH | GROUND |
| ALIGNMENT TYPE | RIGID |
| THRUST DIRECTIONAL CAPABILITY DESIGNATION | SIMPLIFIED DOUBLE ACTING |
| SPECIAL FEATURES | W/INNER AND OUTER SLEVES ALSO OIL HOLE AND GROVE IN OUTER SLEEVE |
Restrictions/Controls & Freight Information | NSN 3110-00-158-6586
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-158-6586
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
