NSN 3110-00-156-3416 M8000113, M8000-113, M8000M110
Product Details | ANNULAR BALL BEARING
3110-00-156-3416 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: M8000113, M8000-113, M8000M110, M8000M113, C87039X1E, R87039X1E, R87039X1E3, 31100015634116 , 39FSFB106A023A75B0000, 39KLD2FS10160S3, 39KLD2FS160, 87039X1225MILG3278, 87039X1ANG25, 87039X1E, 87039X1LT, 87039XR1E9, B30, 3110-00-156-3416, 00-156-3416, 3110001563416, 001563416
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-156-3416 | 00014 ( BEARING, BALL, ANNULAR ) |

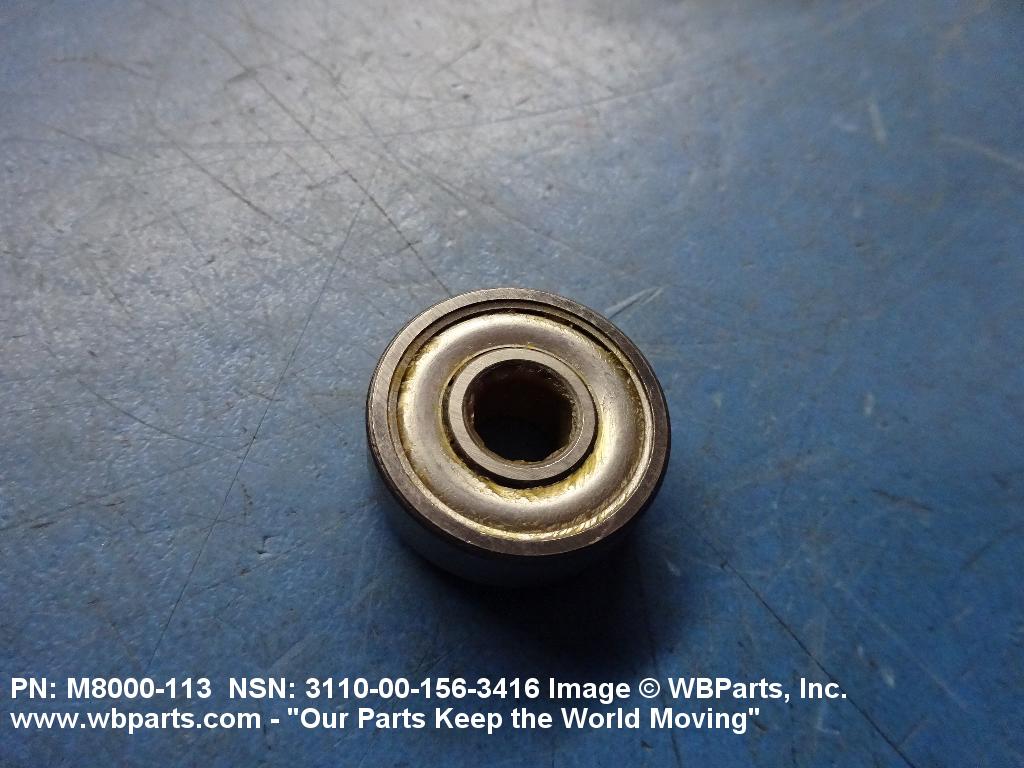

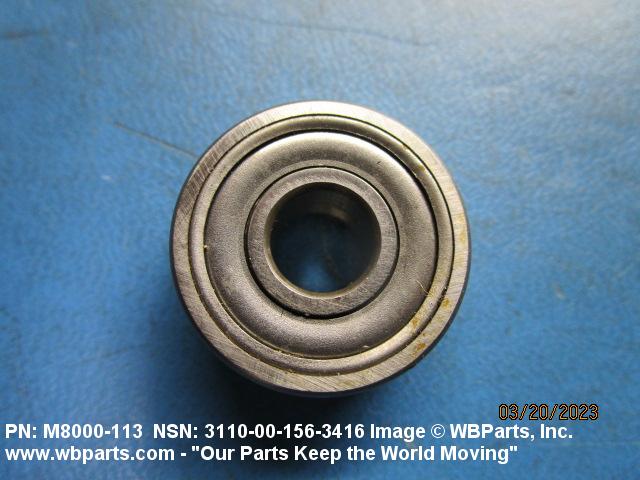

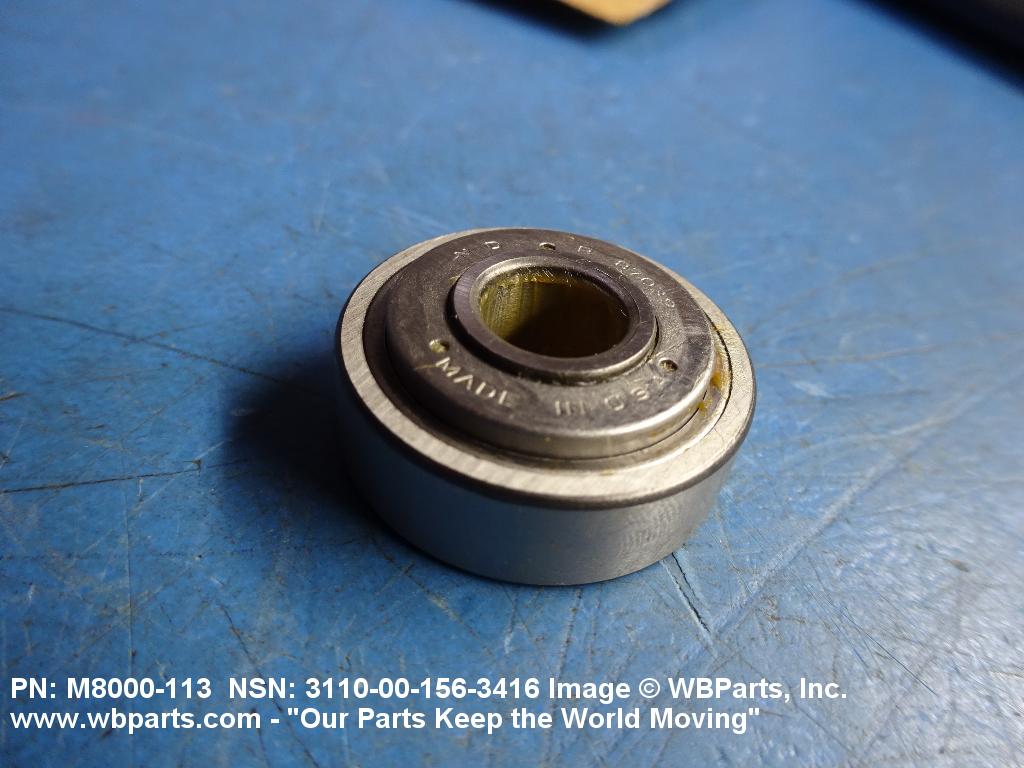

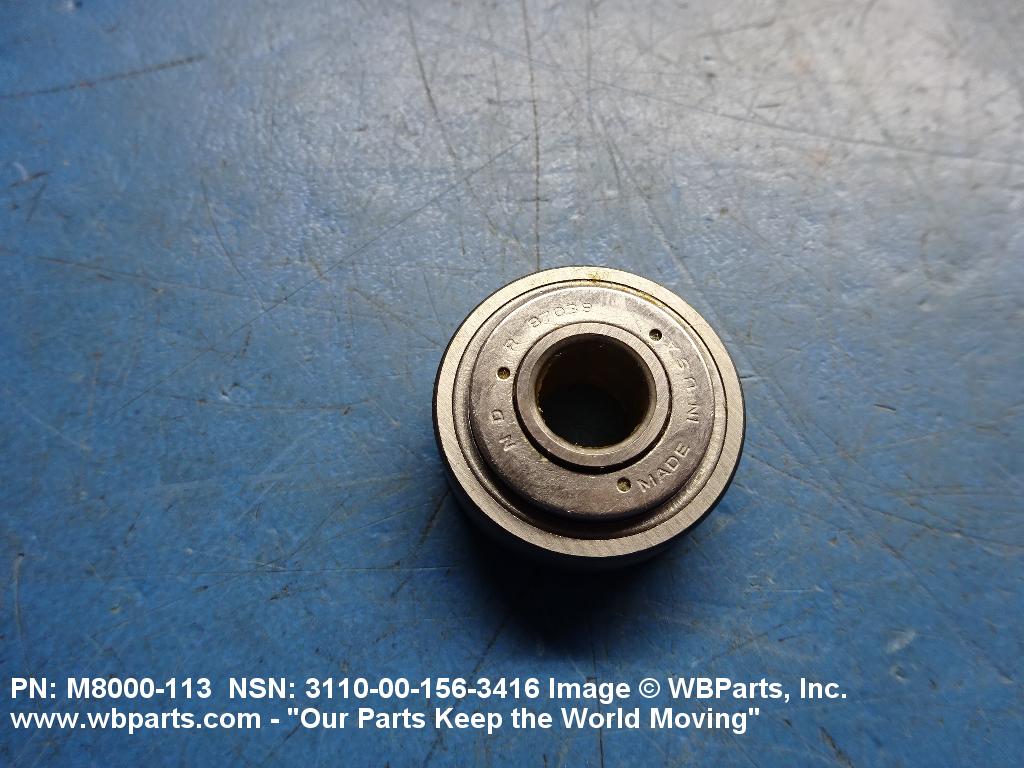

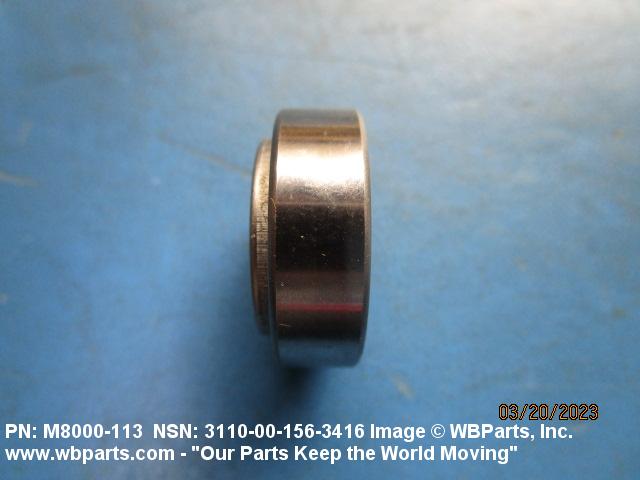

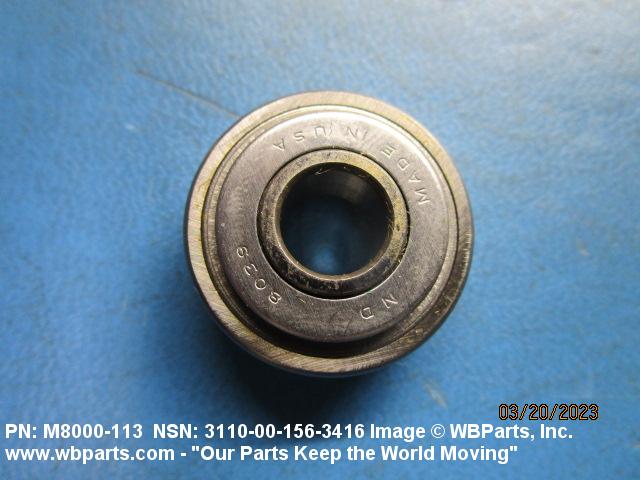

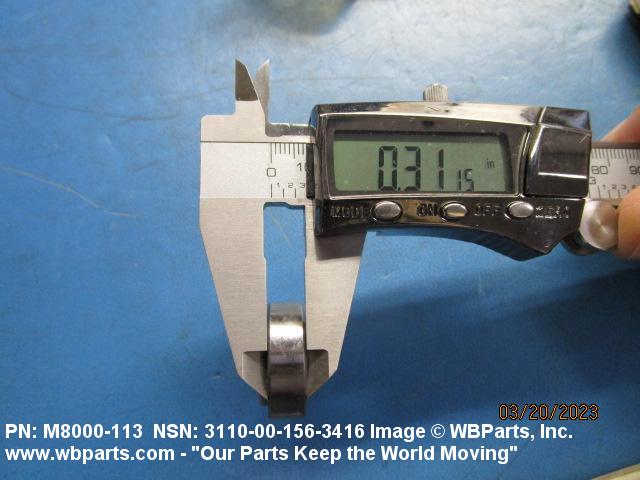

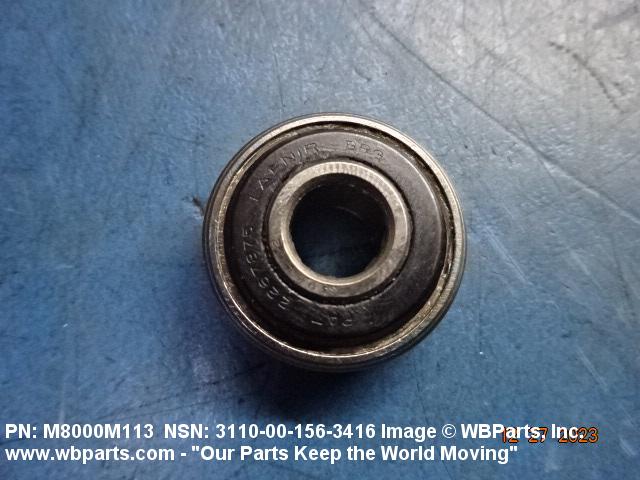

Drawings & Photos | NSN 3110-00-156-3416
Demand History | NSN 3110-00-156-3416
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-156-3416 | 2024-10-283 | 2 | Germany |
| 3110-00-156-3416 | 2024-07-191 | 2 | Germany |
| 3110-00-156-3416 | 2024-02-53 | 8 | Germany |
| 3110-00-156-3416 | 2023-12-353 | 5 | Germany |
| 3110-00-156-3416 | 2023-12-352 | 10 | Germany |
| 3110-00-156-3416 | 2023-11-311 | 2 | Germany |
| 3110-00-156-3416 | 2023-09-257 | 2 | Germany |
| 3110-00-156-3416 | 2023-07-195 | 4 | us |
| 3110-00-156-3416 | 2023-07-193 | 4 | Germany |
| 3110-00-156-3416 | 2023-03-68 | 2 | Germany |
| 3110-00-156-3416 | 2023-01-11 | 16 | US |
| 3110-00-156-3416 | 2022-11-325 | 4 | Germany |
| 3110-00-156-3416 | 2022-11-305 | 3 | Germany |
| 3110-00-156-3416 | 2022-10-301 | 1 | Germany |
| 3110-00-156-3416 | 2022-09-265 | 1 | Germany |
| 3110-00-156-3416 | 2022-05-122 | 7 | United States |
| 3110-00-156-3416 | 2021-08-225 | 2 | Germany |
| 3110-00-156-3416 | 2017-01-09 | 15 | United States |
| 3110-00-156-3416 | 2015-04-117 | 12 | United States |
| 3110-00-156-3416 | 2014-09-260 | 12 | United States |
| 3110-00-156-3416 | 2013-05-151 | 12 | United States |
| 3110-00-156-3416 | 2008-12-344 | 10 | Australia |
| 3110-00-156-3416 | 2008-02-42 | 10 | Australia |
Cross Reference | NSN 3110-00-156-3416
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 31100015634116 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 3110001563416 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 39FSFB106A023A75B0000 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 39KLD2FS10160S3 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 39KLD2FS160 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 87039X1225MILG3278 | 24617 | GENERAL MOTORS CORP |
| 87039X1225MILG3278 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| 87039X1ANG25 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| 87039X1E | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| 87039X1LT | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| 87039XR1E9 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| B30 | 00724 | RAYTHEON COMPANY DBA RAYTHEON |
| C87039X1E | 24617 | GENERAL MOTORS CORP |
| C87039X1E | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| C87039X1E | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| M8000-113 | 21908 | NCR CORP POWER SYSTEMS DIV |
| M8000M110 | 28298 | SMITH AND SMITH AIRCRAFT CO |
| M8000M113 | 28298 | SMITH AND SMITH AIRCRAFT CO |
| R87039X1E | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| R87039X1E3 | 24617 | GENERAL MOTORS CORP |
| R87039X1E3 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| R87039X1E3 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-156-3416
Related Products | NSN 3110-00-156-3416
Technical Data | NSN 3110-00-156-3416
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING STEEL RETAINER RUBBER SYNTHETIC SEAL |
| STYLE DESIGNATOR | 42 NON-LOADING GROOVE, NON-SEPARABLE |

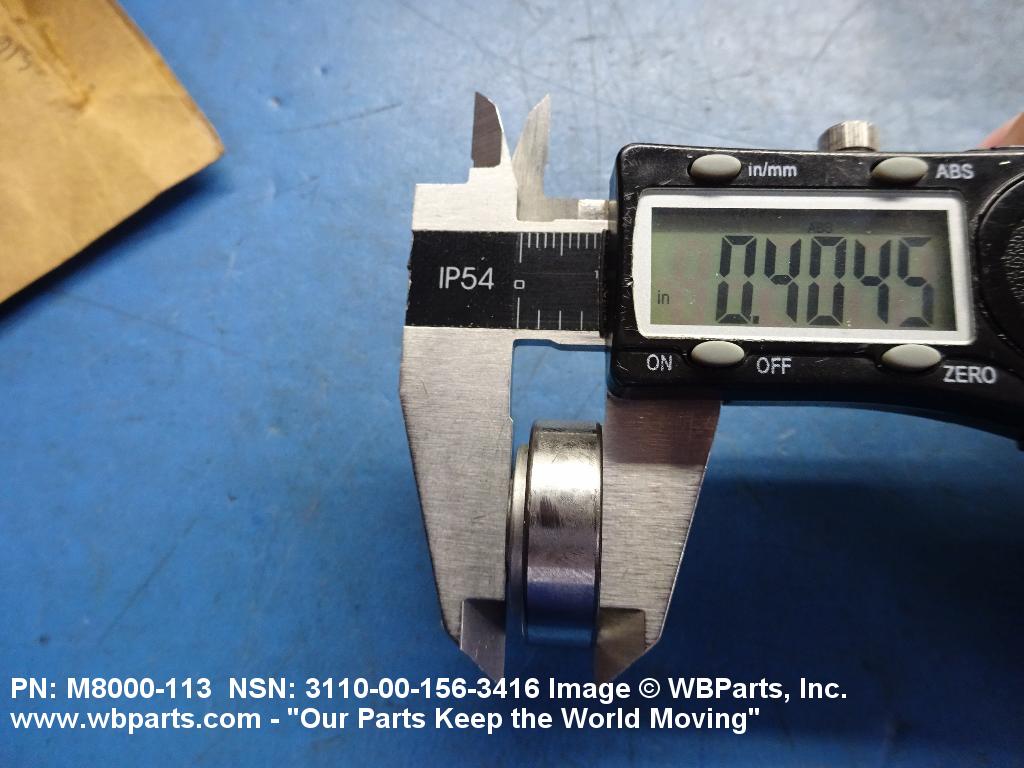

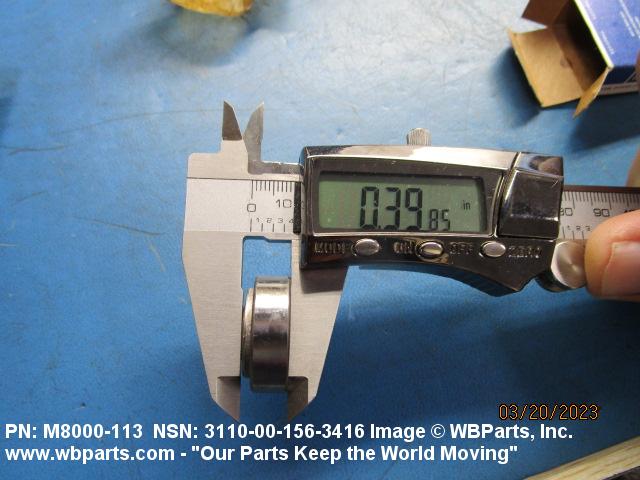

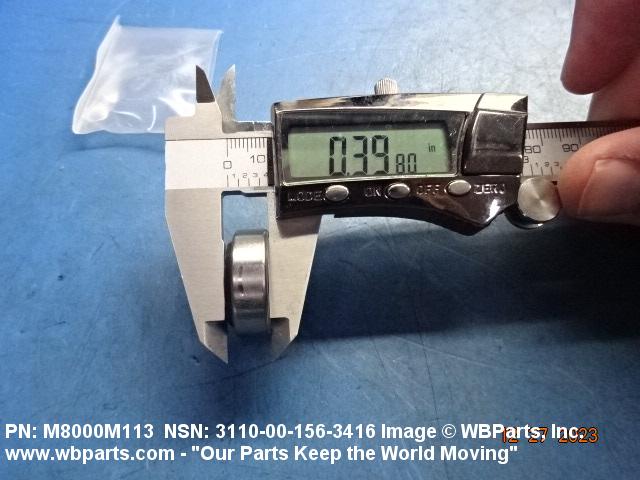

| OVERALL WIDTH | 0.4060 INCHES NOMINAL |

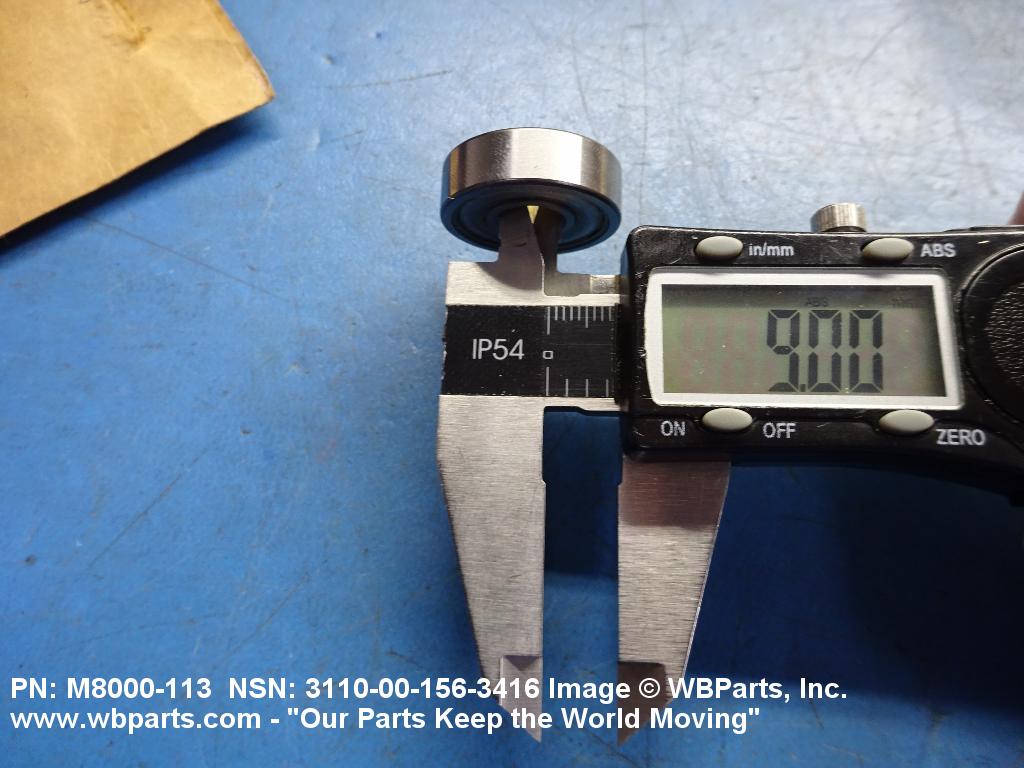

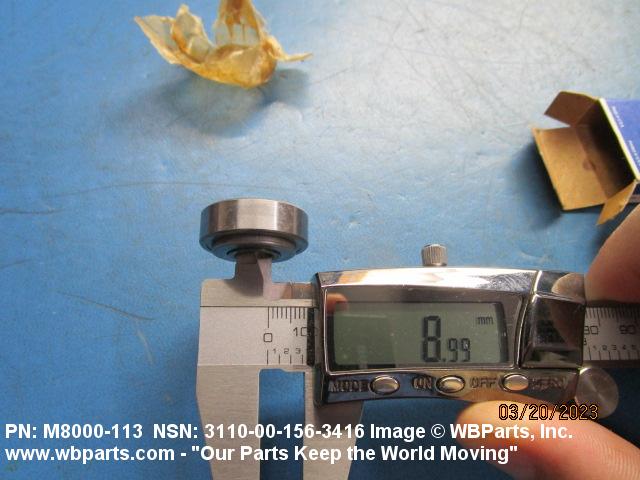

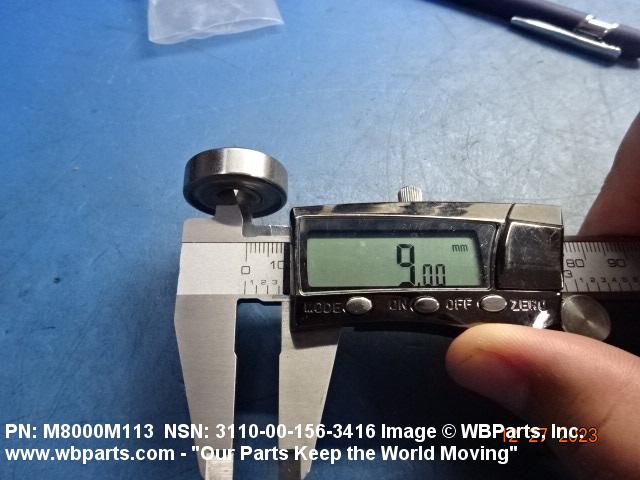

| BORE DIAMETER | 9.00 MILLIMETERS NOMINAL |

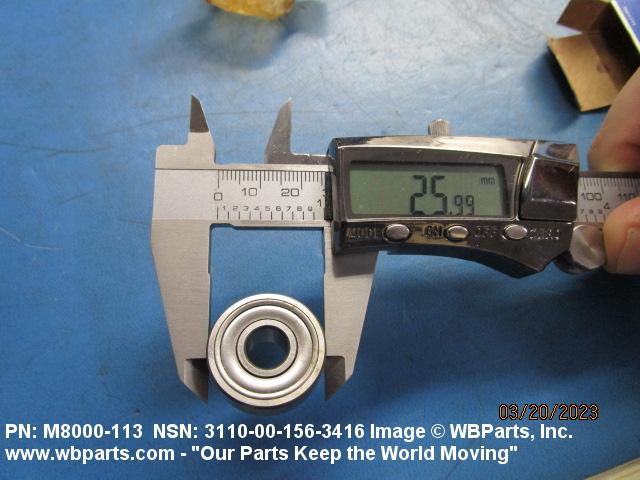

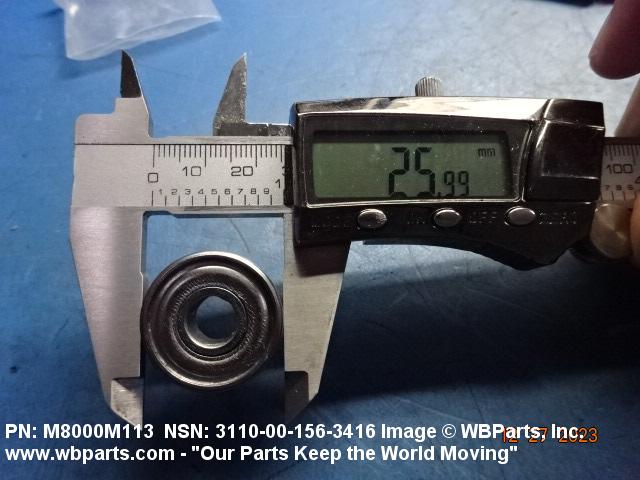

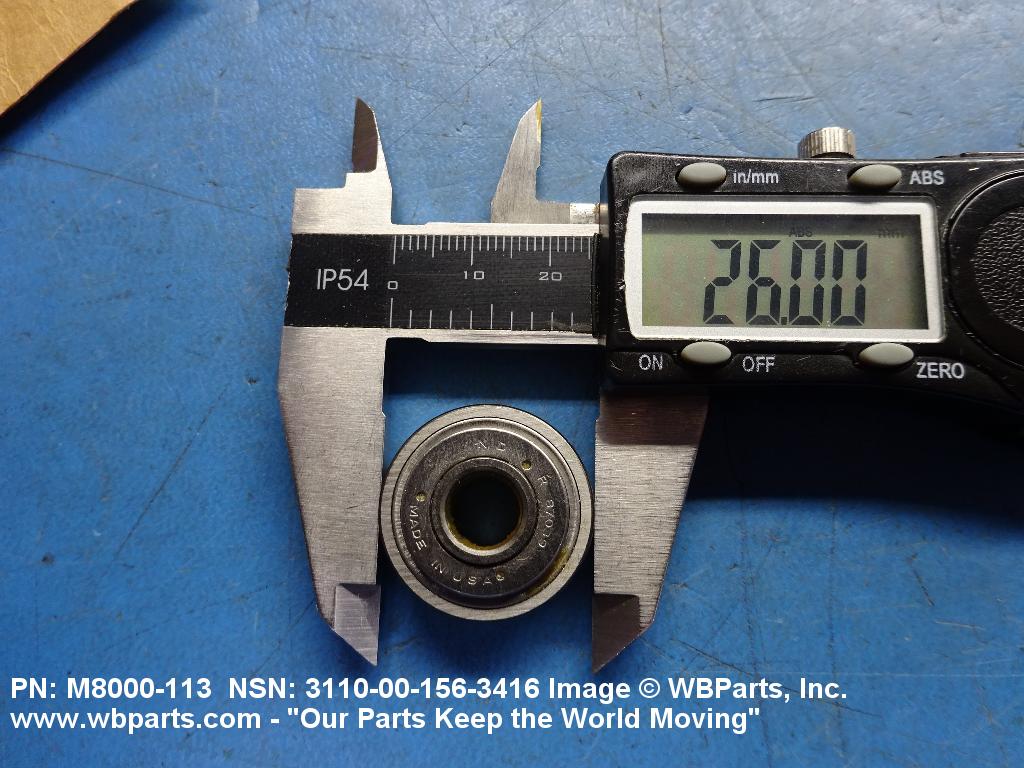

| OVERALL OUTSIDE DIAMETER | 26.00 MILLIMETERS NOMINAL |

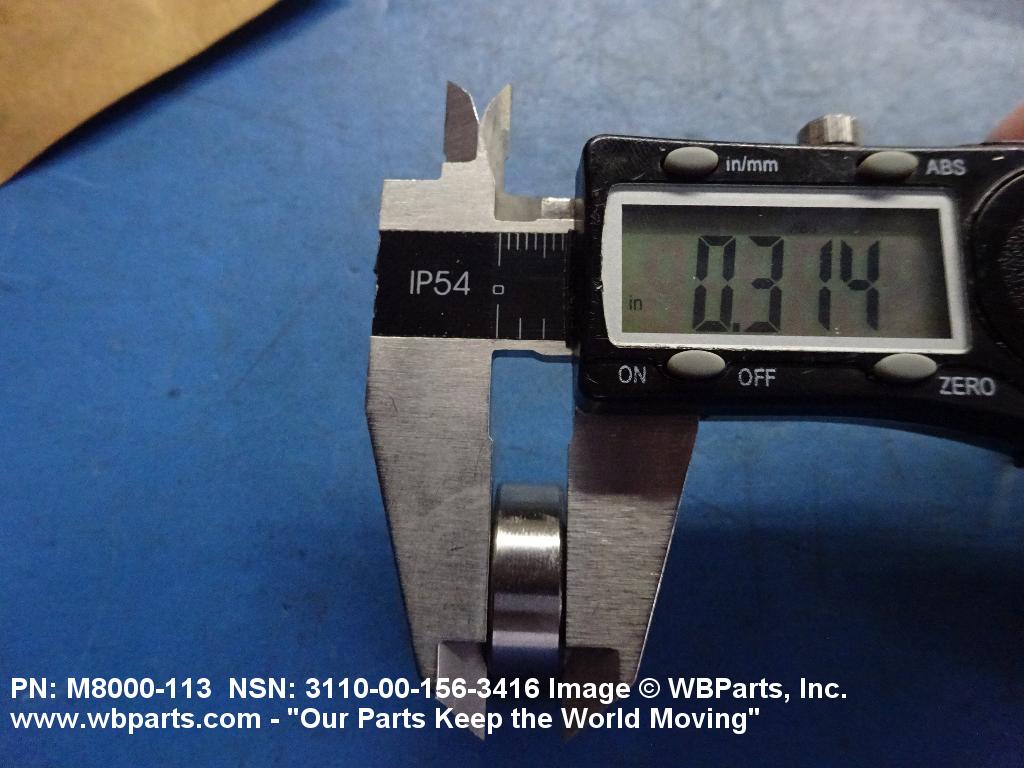

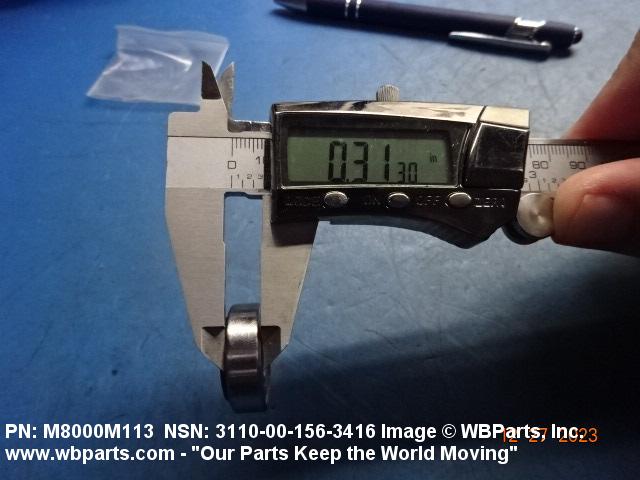

| OUTER RING WIDTH | 0.3150 INCHES NOMINAL |
| INNER RING WIDTH | 0.3860 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SHIELD QUANTITY | 1 |
| SEAL QUANTITY | 1 |
| BEARING SEAL TYPE | CONTACT |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
Restrictions/Controls & Freight Information | NSN 3110-00-156-3416
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-156-3416
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
