NSN 3110-00-156-3393 B28M1, C870381XBC, C87038X1ANG5
Product Details | ANNULAR BALL BEARING
3110-00-156-3393 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: B28M1, C870381XBC, C87038X1ANG5, C87038X1R5, C87038XR1BC, TFA7025, TFAT025, 223897, 22-3897, 3051213H, 38FSFQ5A7, 38FSFQ5A7N078GR, 38KLDFS167, 38KLDFS264, 5278749, 5378749, 87038X1R5, B28, 3110-00-156-3393, 00-156-3393, 3110001563393, 001563393
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-156-3393 | 00014 ( BEARING, BALL, ANNULAR ) |

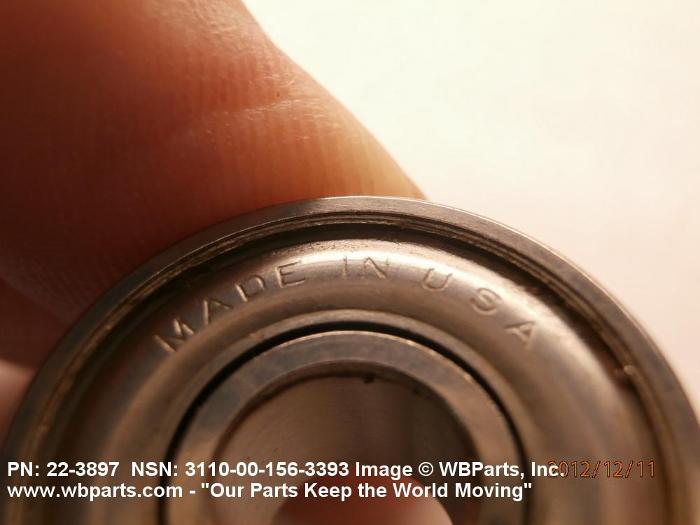

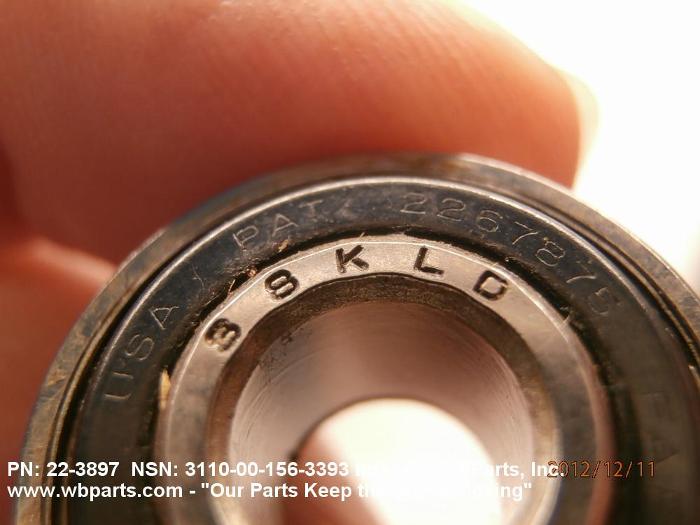

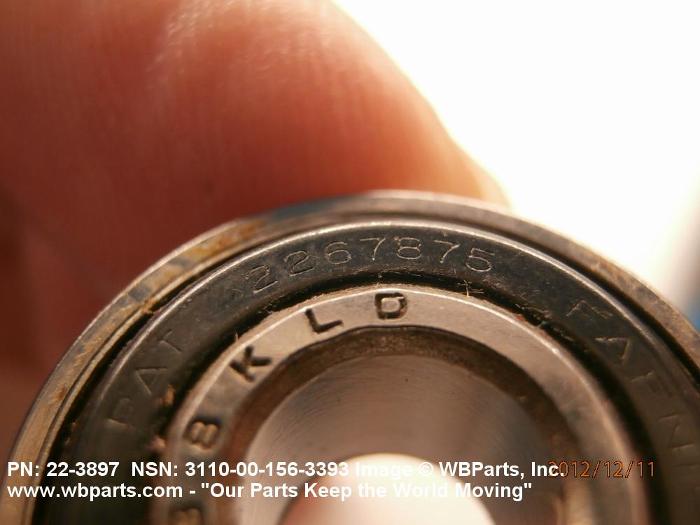

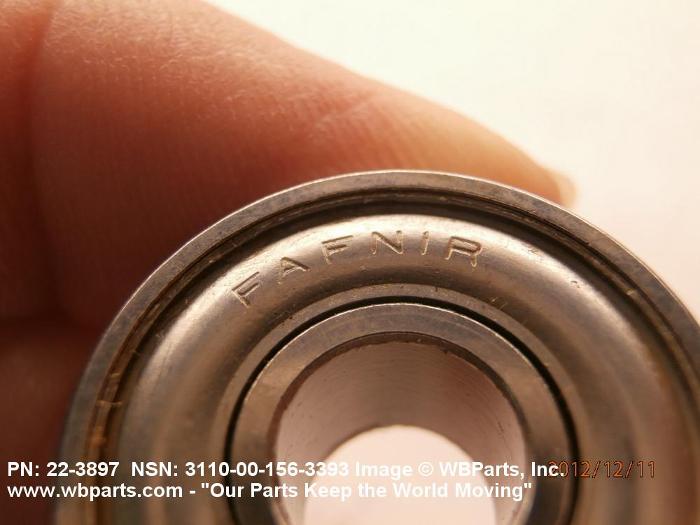

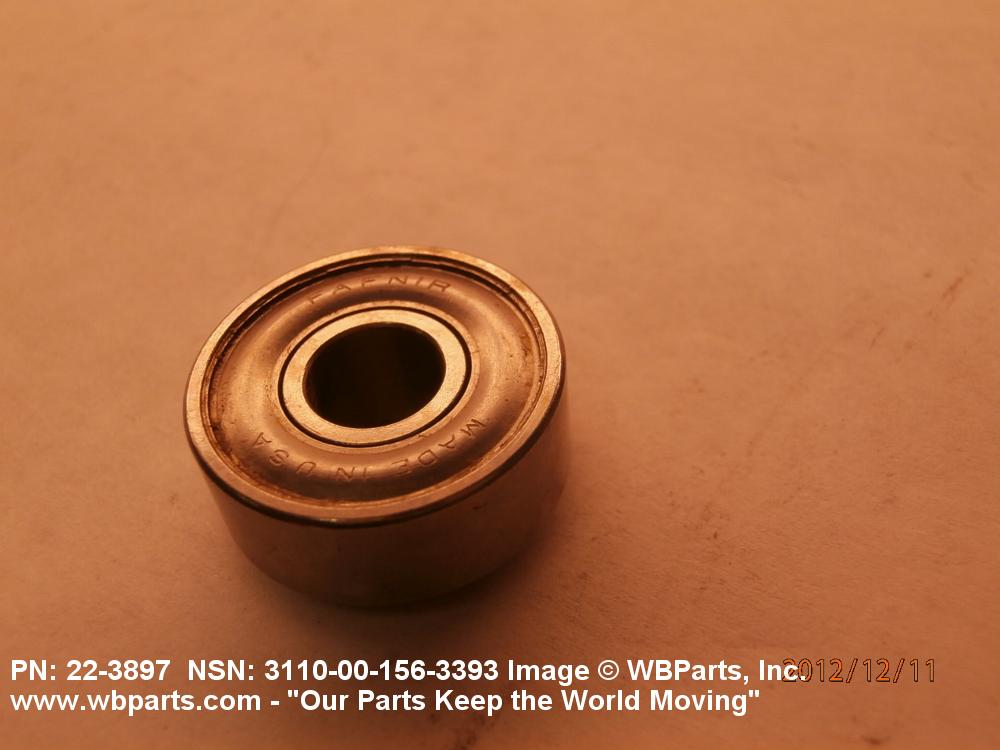

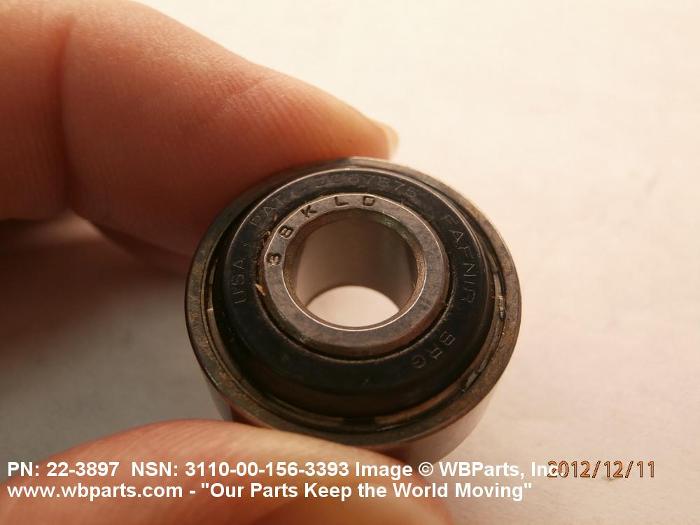

Drawings & Photos | NSN 3110-00-156-3393
Demand History | NSN 3110-00-156-3393
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-156-3393 | 2012-11-326 | 1 | Indonesia |
Cross Reference | NSN 3110-00-156-3393
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 22-3897 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
| 3051213H | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| 38FSFQ5A7 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 38FSFQ5A7N078GR | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 38KLDFS167 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 38KLDFS264 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 5278749 | 72560 | GENERAL MOTORS CORP DELCO PRODUCTS DIV |
| 5378749 | 24617 | GENERAL MOTORS CORP |
| 5378749 | 72560 | GENERAL MOTORS CORP DELCO PRODUCTS DIV |
| 87038X1R5 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| B28 | 00724 | RAYTHEON COMPANY DBA RAYTHEON |
| B28M1 | 00724 | RAYTHEON COMPANY DBA RAYTHEON |
| C870381XBC | 24617 | GENERAL MOTORS CORP |
| C870381XBC | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| C870381XBC | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| C87038X1ANG5 | 24617 | GENERAL MOTORS CORP |
| C87038X1ANG5 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| C87038X1R5 | 24617 | GENERAL MOTORS CORP |
| C87038X1R5 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| C87038X1R5 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| C87038XR1BC | 24617 | GENERAL MOTORS CORP |
| C87038XR1BC | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| C87038XR1BC | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| TFA7025 | 59875 | EATON INDUSTRIAL CORPORATION DBA ARGO-TECH |
| TFAT025 | 59875 | EATON INDUSTRIAL CORPORATION DBA ARGO-TECH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-156-3393
Technical Data | NSN 3110-00-156-3393
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL SHIELD |
| OVERALL WIDTH | 0.4060 INCHES NOMINAL |
| BORE DIAMETER | 8.00 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 22.00 MILLIMETERS NOMINAL |
| OUTER RING WIDTH | 0.3150 INCHES NOMINAL |
| INNER RING WIDTH | 0.3860 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-3545 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| SHIELD QUANTITY | 1 |
| SEAL QUANTITY | 1 |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
Restrictions/Controls & Freight Information | NSN 3110-00-156-3393
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
