NSN 3110-00-155-6328 AA59585, A-A-59585 , AA59585216JACT
Product Details | ANNULAR BALL BEARING
3110-00-155-6328 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: AA59585, A-A-59585 , AA59585216JACT, AA59585-216JACT , FFB171, K8822053PC9, 235A2518AA01, 235A2518AA04, 285X86, 3316L1A, 3516L1A, 3B16L1A, 416821, 4168211GC, 416821-1-GC, 41682127GC, 416821-27-GC, 4168213FX, 416821-3FX , 4168213GC, 416821-3-GC, 6316/C3, 6316C3, 6316JC3, 80BC03J3, 80BC03J30X, 80BC03X30X26, 894A605EF016, 3110-00-155-6328, 00-155-6328, 3110001556328, 001556328
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-155-6328 | 00014 ( BEARING, BALL, ANNULAR ) |

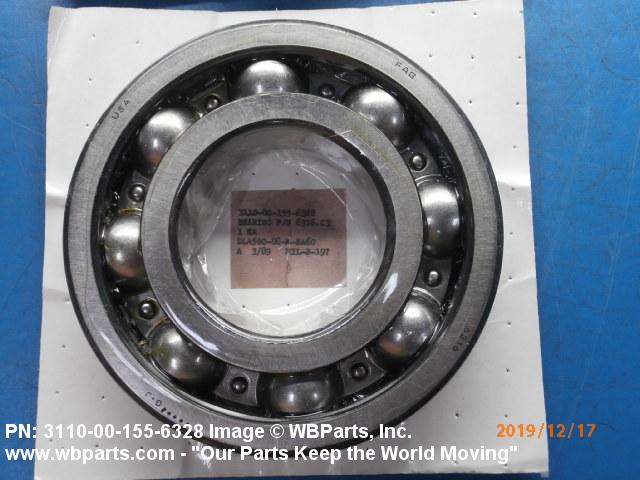

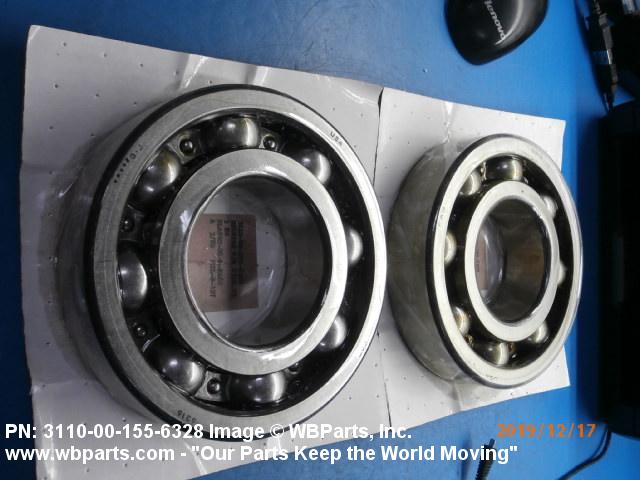

Drawings & Photos | NSN 3110-00-155-6328
Demand History | NSN 3110-00-155-6328
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-155-6328 | 2021-12-357 | 22 | DIBBS |
| 3110-00-155-6328 | 2021-12-340 | 22 | DIBBS |
| 3110-00-155-6328 | 2021-09-245 | 4 | MY |
| 3110-00-155-6328 | 2019-11-331 | 1 | United States |
| 80BC03J30X | 2019-08-226 | 2 | US |
| FFB171 | 2017-01-10 | 7 | US |
| 3110-00-155-6328 | 2015-08-231 | 2 | US |
| 3110-00-155-6328 | 2014-12-351 | 2 | US |
| 3110-00-155-6328 | 2014-11-328 | 2 | US |
| 3110-00-155-6328 | 2014-08-229 | 38 | DIBBS |
| 3110-00-155-6328 | 2014-04-93 | 38 | DIBBS |
| 80BC03J30X | 2013-06-155 | 2 | US |
| 3110-00-155-6328 | 2013-05-122 | 41 | DIBBS |
| 3110-00-155-6328 | 2013-04-107 | 41 | DIBBS |
| 3110-00-155-6328 | 2013-04-95 | 10 | DIBBS |
| FFB171 | 2013-01-11 | 22 | US |
| 3110-00-155-6328 | 2012-10-284 | 41 | DIBBS |
| 3110-00-155-6328 | 2012-10-277 | 10 | DIBBS |
| 3110-00-155-6328 | 2012-09-271 | 29 | DIBBS |
| 3110-00-155-6328 | 2012-09-249 | 15 | DIBBS |
| 3110-00-155-6328 | 2012-08-215 | 9 | DIBBS |
| 3110-00-155-6328 | 2012-06-182 | 10 | DIBBS |
| 80BC03J30X | 2012-06-164 | 4 | us |
| 3110-00-155-6328 | 2012-06-163 | 3 | US |
| 80BC03J3 | 2012-02-44 | 2 | US |
| AA59585 | 2011-10-299 | 1 | Nigeria |
| 3110-00-155-6328 | 2011-03-89 | 3 | TR |
| AA59585 | 2011-03-87 | 1 | US |
| 6316C3 | 2010-07-199 | 1 | US |
| 6316C3 | 2010-06-181 | 1 | US |
| 3110-00-155-6328 | 2010-05-137 | 2 | US |
| 6316C3 | 2009-11-321 | 2 | MX |
| 80BC03J30X | 2009-11-321 | 2 | MX |
| 3110-00-155-6328 | 2009-06-169 | 25 | DIBBS |
| 3110-00-155-6328 | 2009-05-151 | 25 | DIBBS |
| FFB171 | 2008-11-317 | 8 | United States |
| 3110-00-155-6328 | 2008-07-212 | 12 | DIBBS |
| 3110-00-155-6328 | 2008-05-137 | 12 | DIBBS |
| 3110-00-155-6328 | 2008-05-128 | 42 | DIBBS |
| 6316C3 | 2008-04-114 | 1 | Canada |
| 3110-00-155-6328 | 2008-03-91 | 42 | DIBBS |
| 3110-00-155-6328 | 2008-03-64 | 2 | US |
| 6316C3 | 2008-02-37 | 1 | Philippines |
| 3110-00-155-6328 | 2007-10-298 | 4 | VN |
| 80BC03J30X | 2007-09-257 | 1 | China |
| 416821 | 2007-08-226 | 2 | United Kingdom |
| 80BC03J3 | 2006-12-340 | 2 | AR |
| 3110-00-155-6328 | 2006-08-213 | 4 | US |
Cross Reference | NSN 3110-00-155-6328
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 235A2518AA01 | 12532 | GENERAL ELECTRIC CO MOTOR BUSINESS GROUP |
| 235A2518AA04 | 02989 | GENERAL ELECTRIC CO GE DRIVE SYSTEMS |
| 235A2518AA04 | 12532 | GENERAL ELECTRIC CO MOTOR BUSINESS GROUP |
| 285X86 | 24617 | GENERAL MOTORS CORP |
| 3316L1A | 24617 | GENERAL MOTORS CORP |
| 3316L1A | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| 3516L1A | 24617 | GENERAL MOTORS CORP |
| 3B16L1A | 24446 | GENERAL ELECTRIC CO |
| 416821 | 50380 | RELIANCE ELECTRIC |
| 416821-1-GC | 50380 | RELIANCE ELECTRIC |
| 416821-27-GC | 50380 | RELIANCE ELECTRIC |
| 416821-3-GC | 50380 | RELIANCE ELECTRIC |
| 416821-3FX | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 6316/C3 | 0WP66 | ABB DRIVES INC |

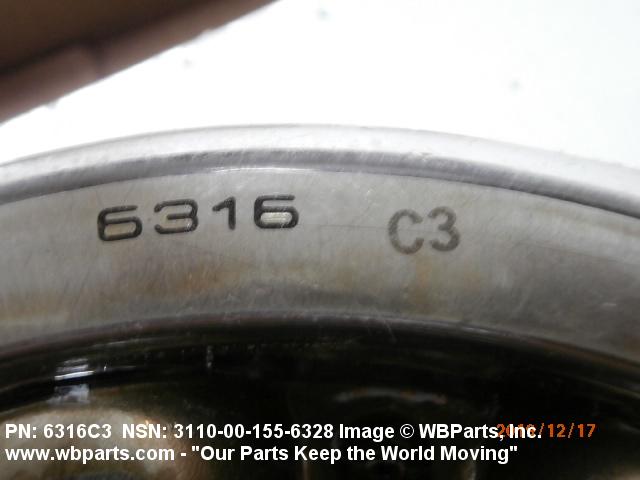

| 6316C3 | 52676 | SKF USA INC. |
| 6316C3 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| 6316JC3 | 52676 | SKF USA INC. |
| 80BC03J3 | 70413 | ANTI-FRICTION BEARING MFG ASSN INC THE |
| 80BC03J30X | 70413 | ANTI-FRICTION BEARING MFG ASSN INC THE |
| 80BC03X30X26 | 70413 | ANTI-FRICTION BEARING MFG ASSN INC THE |
| 894A605EF016 | 01288 | GENERAL ELECTRIC CO DIRECT CURRENT MOTOR AND GENERATOR |
| 894A605EF016 | 03497 | GENERAL ELECTRIC CO OUTDOOR BREAKER BUSINESS SECTION |
| A-A-59585 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA59585-216JACT | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| FFB171 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| K8822053PC9 | 24446 | GENERAL ELECTRIC CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-155-6328
Related Products | NSN 3110-00-155-6328
Technical Data | NSN 3110-00-155-6328
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 10A NON-LOADING GROOVE, NON-SEPARABLE |

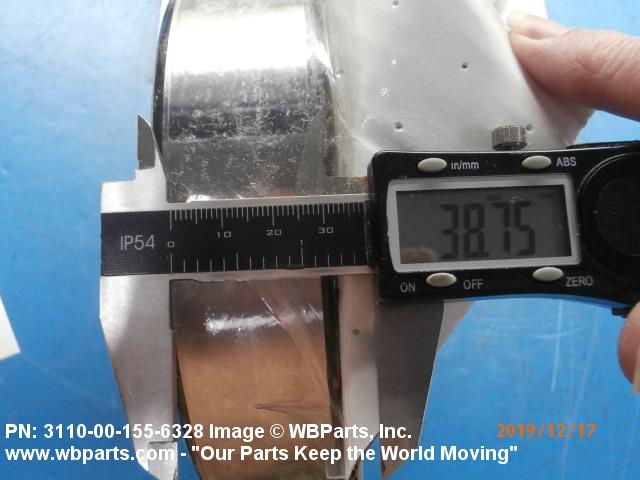

| OVERALL WIDTH | 39.0 MILLIMETERS NOMINAL |

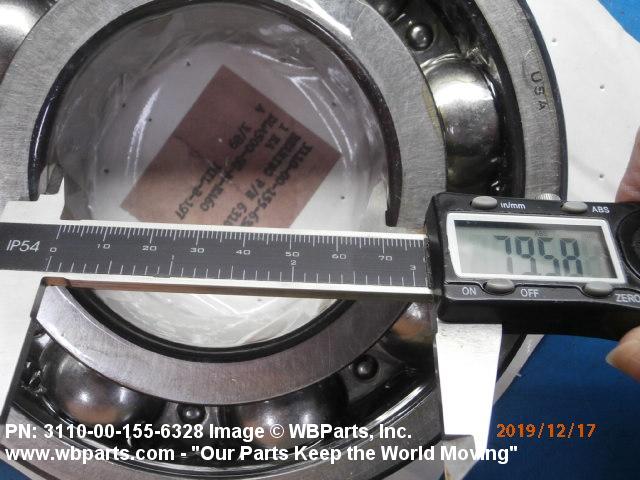

| BORE DIAMETER | 80.00 MILLIMETERS NOMINAL |

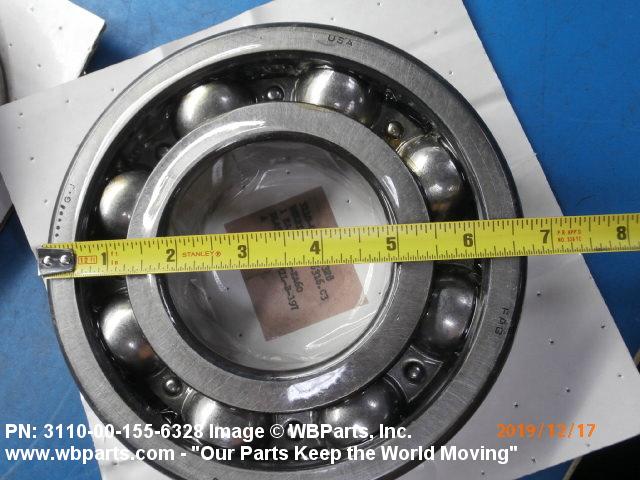

| OVERALL OUTSIDE DIAMETER | 170.00 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | LOOSE |
| NONDEFINITIVE SPEC/STD DATA | 111 TYPE AND 1 CLASS AND 00 GRADE |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY INTERNAL FIT-UP DESIGNATION |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFB171 |
Restrictions/Controls & Freight Information | NSN 3110-00-155-6328
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-155-6328
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
