NSN 3110-00-144-8671 M930038, M9300-38, A75011
Product Details | ANNULAR BALL BEARING
3110-00-144-8671 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: M930038, M9300-38, A75011, A750-11, A784840, A7848-40, A831832, S6508ZZ, SGMOTSPH NO. 55 , SGMOTSPHNO55, T252635, T2526-35, T77208, E784840, E7848-40, FFB171, 02082558, 11171, 118994, 1208FF, 12128033260, 12Z36933, 12Z369-33, 17617, P128, R732, 273829-124, 177002-119, 208CFF, 208FF, 208KDD, 208KDDFS104, 208KDDFS381A, 208KDDFS504, 208PP, 208SH2, 208SS, 236934, 236-9-34, 24FAS102C3245PC34, 2613496, 261349-6, 319687-159, 377053L, 377053LL, 377053ZZ, 3B4421, 40BC02PP, 43208PP, 4MACE265, 5308, 62082Z, 6208-2Z, 6208ZZ, 6208ZZCE1SA2, 700162, 763209, 77208, 77508, 77508X1C, 83180601, 831806-01, 831832, 98X683, 3110-00-144-8671, 00-144-8671, 3110001448671, 001448671, 319687159, 177002119, 273829124
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1961 | 00-144-8671 | 00014 ( BEARING, BALL, ANNULAR ) |

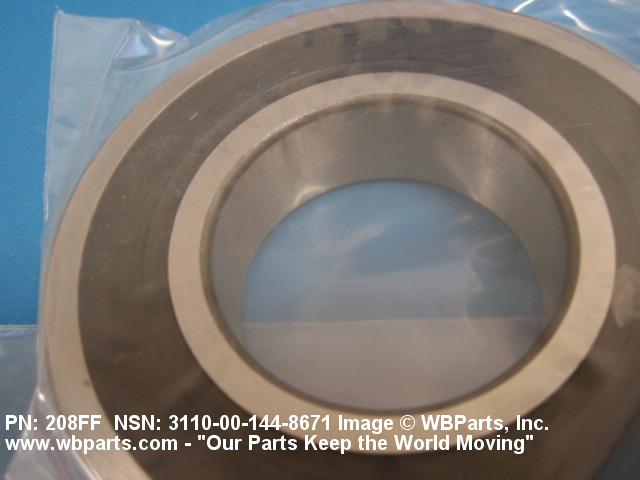

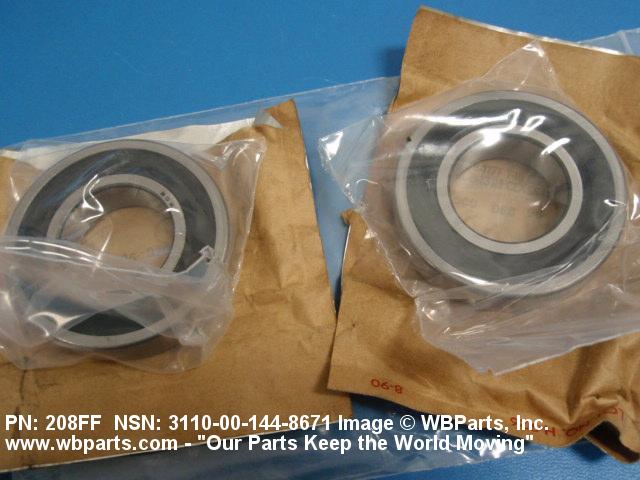

Drawings & Photos | NSN 3110-00-144-8671
Demand History | NSN 3110-00-144-8671
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FFB171 | 2017-01-10 | 7 | US |
| FFB171 | 2013-01-11 | 22 | US |
| 6208ZZ | 2011-01-26 | 300 | PK |
| FFB171 | 2008-11-317 | 8 | United States |
Cross Reference | NSN 3110-00-144-8671
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 02082558 | ZD484 | J BLACKWOOD & SON LTD |
| 11171 | K3303 | MEGGITT UK LTD AVERY HARDOLL DIVISION |
| 118994 | 0SAT8 | KOMATSU AMERICA CORP. |
| 118994 | 29510 | KOMATSU AMERICAN INTL CO |
| 1208FF | 21760 | SCHATZ BEARING CORPORATION |
| 12128033260 | K7686 | BROOK CROMPTON |
| 12128033260 | U1454 | BROOK CROMPTON |
| 12Z369-33 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 17617 | 55643 | A-T-O CONSTRUCTION EQUIPMENT DIV |
| 177002-119 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 208CFF | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 208FF | 39317 | MCGILL MANUFACTURING COMPANY INC USE CAGE CODE 92563 FOR CATALOGING. |
| 208FF | 92563 | MCGILL MANUFACTURING COMPANY INC DBA EMERSON POWER TRANSMISSION |
| 208KDD | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 208KDDFS104 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 208KDDFS381A | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 208KDDFS504 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 208PP | 43991 | FAG BEARINGS CORPORATION |
| 208SH2 | 30335 | IMPERIAL ELECTRIC CO |
| 208SS | 01212 | FEDERAL-MOGUL CORP GOVERNMENT SALES DEPT |
| 236-9-34 | 12280 | CINCINNATI ELECTRICAL TOOL INC |
| 24FAS102C3245PC34 | 56650 | SETCO SALES COMPANY |
| 261349-6 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 273829-124 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 319687-159 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 377053L | 83299 | NACCO MATERIALS HANDLING GROUP INC DBA YALE MATERIALS HANDLING |
| 377053LL | 66821 | YALE SECURITY INC. DBA NORTON DOOR CONTROL |
| 377053ZZ | 83299 | NACCO MATERIALS HANDLING GROUP INC DBA YALE MATERIALS HANDLING |
| 3B4421 | 1X0J7 | VOLVO CONSTRUCTION EQUIPMENT NORTH AMERICA, LLC |
| 3B4421 | 31245 | TEREX USA, LLC DBA CEDARAPIDS |
| 3B4421 | 40152 | VME AMERICAS INC SUB OF VME GROUP N V |
| 3B4421 | 45149 | OSGOOD CO THE |
| 3B4421 | 81010 | DRESSER/MARION DIV |
| 40BC02PP | 70413 | ANTI-FRICTION BEARING MFG ASSN INC THE |
| 43208PP | 30076 | NACCO MATERIALS HANDLING GROUP INC DBA HYSTER |
| 4MACE265 | 36156 | LIMA ELECTRIC CO INC THE |
| 5308 | 43952 | ENERGY SERVICES GROUP DIV OF COOPER INDUSTRIES INC |
| 6208-2Z | 52676 | SKF USA INC. |
| 6208ZZ | 52676 | SKF USA INC. |
| 6208ZZCE1SA2 | 53035 | NSK CORP BEARING DIV |
| 700162 | 21450 | ARMY WEAPONS COMMAND ATTN AMSWE-REE-S |
| 763209 | 12603 | CLARK EQUIPMENT CO |
| 763209 | 77237 | DANA OFF HIGHWAY PRODUCTS, LLC |
| 77208 | 12280 | CINCINNATI ELECTRICAL TOOL INC |
| 77508 | 14541 | CAMERON INTERNATIONAL CORPORATION DBA CAMERON ENERGY SERVICES DIV |
| 77508 | 24617 | GENERAL MOTORS CORP |
| 77508 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| 77508X1C | 24617 | GENERAL MOTORS CORP |
| 77508X1C | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| 831806-01 | 36156 | LIMA ELECTRIC CO INC THE |
| 831832 | 36156 | LIMA ELECTRIC CO INC THE |
| 98X683 | 24446 | GENERAL ELECTRIC CO |
| A750-11 | 30076 | NACCO MATERIALS HANDLING GROUP INC DBA HYSTER |
| A7848-40 | 38151 | MARATHON ELECTRIC MANUFACTURING CORPORATION |
| A831832 | 36156 | LIMA ELECTRIC CO INC THE |
| E7848-40 | 38151 | MARATHON ELECTRIC MANUFACTURING CORPORATION |
| FFB171 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| M9300-38 | 36232 | LINCOLN ELECTRIC HOLDINGS INC. |
| P128 | 51805 | ROSCO MFG CO |
| R732 | 55921 | CURTIS-TOLEDO INC. |
| S6508ZZ | 20219 | ELGIN SWEEPER COMPANY INC DBA ELGIN SWEEPER |
| T2526-35 | 36232 | LINCOLN ELECTRIC HOLDINGS INC. |
| T77208 | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-144-8671
Related Products | NSN 3110-00-144-8671
Technical Data | NSN 3110-00-144-8671
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 10A NON-LOADING GROOVE, NON-SEPARABLE |
| OVERALL WIDTH | 18.0 MILLIMETERS NOMINAL |
| BORE DIAMETER | 40.00 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 80.00 MILLIMETERS NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-18709 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SHIELD QUANTITY | 2 |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 111 TYPE AND 3 CLASS AND 00 GRADE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFB171 |
Restrictions/Controls & Freight Information | NSN 3110-00-144-8671
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-144-8671
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
