NSN 3110-00-135-9142 AP42206, SJ73159DF, SJ7315-9DF
Product Details | JOURNAL ROLLER BEARING
3110-00-135-9142 An item in which the shaft or revolving part turns upon hardened rollers usually contained in a cage. It must contain an inner or outer race, or both. For items without a race(s), see RETAINER AND ROLLER, BEARING.
Part Alternates: AP42206, SJ73159DF, SJ7315-9DF, 206-011-111, 2060111111, 206-011-111-1, 3110-00-135-9142, 00-135-9142, 3110001359142, 206011111, 001359142
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 15 JAN 1969 | 00-135-9142 | 00017 ( BEARING, ROLLER, JOURNAL ) |
Drawings & Photos | NSN 3110-00-135-9142
Demand History | NSN 3110-00-135-9142
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-135-9142 | 2016-04-96 | 123 | DIBBS |
| 3110-00-135-9142 | 2014-10-281 | 86 | DIBBS |
| 3110-00-135-9142 | 2012-06-173 | 237 | DIBBS |
| 3110-00-135-9142 | 2008-08-219 | 198 | DIBBS |
| 3110-00-135-9142 | 2008-08-214 | 253 | DIBBS |
| 3110-00-135-9142 | 2008-05-148 | 78 | DIBBS |
| 3110-00-135-9142 | 2008-05-130 | 78 | DIBBS |
| 3110-00-135-9142 | 2007-12-353 | 41 | DIBBS |
| 3110-00-135-9142 | 2007-10-302 | 51 | DIBBS |
| 3110-00-135-9142 | 2007-09-260 | 69 | DIBBS |
| 3110-00-135-9142 | 2007-09-249 | 7 | DIBBS |
| 3110-00-135-9142 | 2007-07-192 | 42 | DIBBS |
Cross Reference | NSN 3110-00-135-9142
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 206-011-111 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 206-011-111-1 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| 206-011-111-1 | 51588 | RBC BEARINGS INCORPORATED DIV WEST TRENTON DIVISION |
| 206-011-111-1 | 97499 | BELL HELICOPTER TEXTRON INC. |
| AP42206 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| AP42206 | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| SJ7315-9DF | 51588 | RBC BEARINGS INCORPORATED DIV WEST TRENTON DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-135-9142
Related Products | NSN 3110-00-135-9142
Technical Data | NSN 3110-00-135-9142
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL INNER RING STEEL OUTER RING STEEL RETAINER STEEL ROLLER |
| MATERIAL DOCUMENT AND CLASSIFICATION | FED-STD-66 FED STD SINGLE MATERIAL RESPONSE INNER RING FED-STD-66 FED STD SINGLE MATERIAL RESPONSE OUTER RING FED-STD-66 FED STD SINGLE MATERIAL RESPONSE RETAINER FED-STD-66 FED STD SINGLE MATERIAL RESPONSE ROLLER |

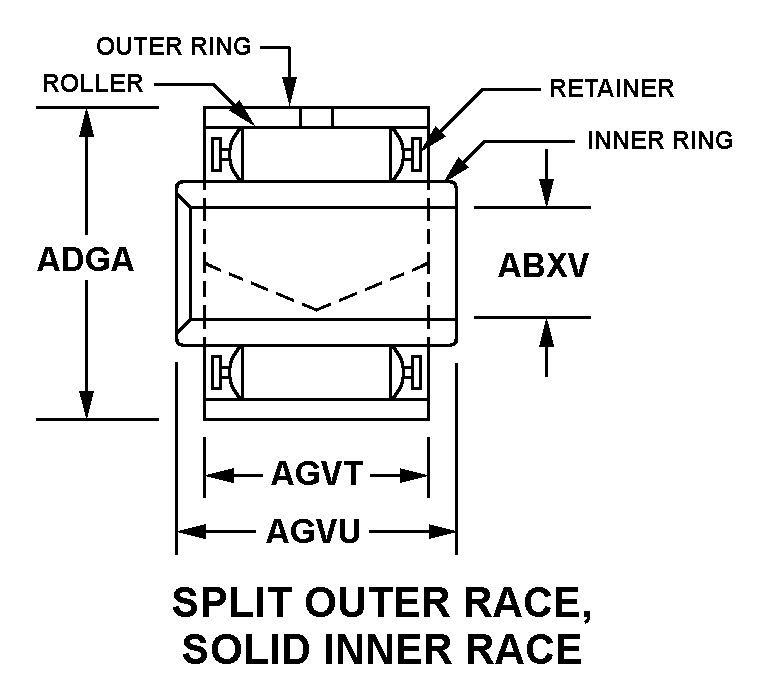

| STYLE DESIGNATOR | 312 SPLIT OUTER RACE, SOLID INNER RACE |
| BORE DIAMETER | 1.4995 INCHES MINIMUM AND 1.5000 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 2.3119 INCHES MINIMUM AND 2.3125 INCHES MAXIMUM |
| OUTER RING WIDTH | 1.2450 INCHES MINIMUM AND 1.2500 INCHES MAXIMUM |
| INNER RING WIDTH | 1.6900 INCHES MINIMUM AND 1.7100 INCHES MAXIMUM |
| TEST DATA DOCUMENT | 81349-MIL-I-6868 SPECIFICATION |
| MANUFACTURERS CODE | 97499 |
| MFR SOURCE CONTROLLING REFERENCE | 206-011-111 |
Restrictions/Controls & Freight Information | NSN 3110-00-135-9142
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-135-9142
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
