NSN 3110-00-124-9070 B3147468, B31-47468, BH3316
Product Details | NEEDLE ROLLER BEARING
3110-00-124-9070 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.
Part Alternates: B3147468, B31-47468, BH3316, BH-3316 , 31 47468T, 3147468, 31-47468, 3147468T, 8788PC97, 3110-00-124-9070, 00-124-9070, 3110001249070, 001249070
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 15 NOV 1968 | 00-124-9070 | 00051 ( BEARING, ROLLER, NEEDLE ) |

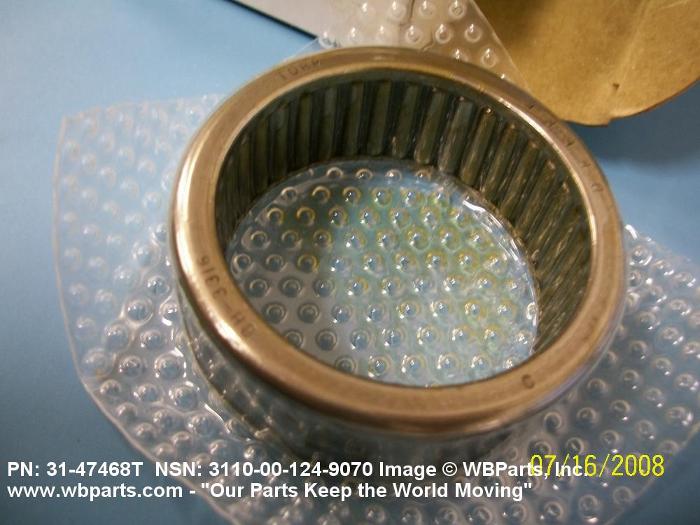

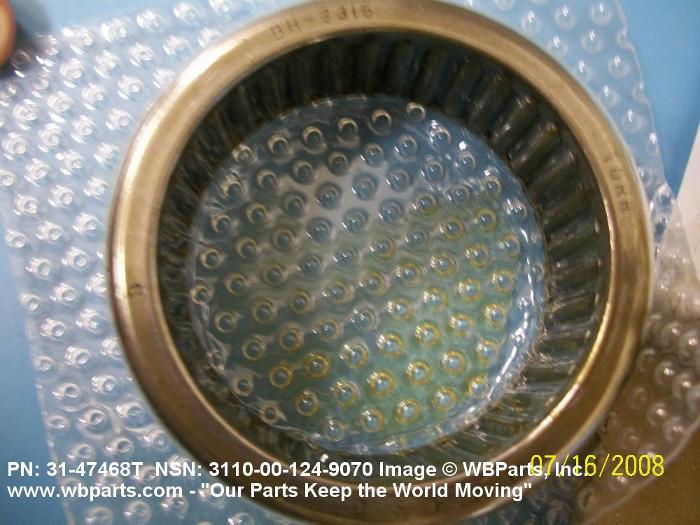

Drawings & Photos | NSN 3110-00-124-9070
Demand History | NSN 3110-00-124-9070
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-124-9070 | 2016-06-168 | 82 | DIBBS |
| 3110-00-124-9070 | 2012-02-52 | 55 | DIBBS |
| BH3316 | 2011-08-229 | 6 | Thailand |
| 3110-00-124-9070 | 2011-04-101 | 38 | DIBBS |
| 3110-00-124-9070 | 2010-04-106 | 26 | DIBBS |
| 3110-00-124-9070 | 2008-12-340 | 21 | DIBBS |
| 3110-00-124-9070 | 2008-08-232 | 9 | DIBBS |
Cross Reference | NSN 3110-00-124-9070
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 31 47468T | 88907 | BRUNSWICK CORPORATION DBA MERCURY MARINE |
| 31-47468 | 88907 | BRUNSWICK CORPORATION DBA MERCURY MARINE |
| 8788PC97 | 11442 | JERED PRODUCTS INC |
| B31-47468 | 88907 | BRUNSWICK CORPORATION DBA MERCURY MARINE |
| BH-3316 | 5XMS1 | KOYO BEARINGS USA LLC DIV HEADQUARTERS |
| BH-3316 | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-124-9070
Technical Data | NSN 3110-00-124-9070
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 410 NON-SEPARABLE, OPEN END, DRAWN SHELL |
| OVERALL WIDTH | 1.0000 INCHES NOMINAL |
| BORE DIAMETER | 2.0625 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 2.5312 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR INDUSTRIAL NEEDLE BEARINGS |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| ALIGNMENT TYPE | RIGID |
| SPECIAL FEATURES | OIL HOLE IN OUTER RACE |
Restrictions/Controls & Freight Information | NSN 3110-00-124-9070
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-124-9070
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
