NSN 3110-00-122-4491 MS51961-34 AND MS51962-25, MS5196134ANDMS5196225, SJ8407 AND IR8407
Product Details | NEEDLE ROLLER BEARING
3110-00-122-4491 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.
Part Alternates: MS51961-34 AND MS51962-25, MS5196134ANDMS5196225, SJ8407 AND IR8407, SJ8407ANDIR8407, 35X35, 3110-00-122-4491, 00-122-4491, 3110001224491, 001224491
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 30 OCT 1968 | 00-122-4491 | 00051 ( BEARING, ROLLER, NEEDLE ) |
Drawings & Photos | NSN 3110-00-122-4491
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-122-4491
Technical Data | NSN 3110-00-122-4491
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E51100 OVERALL |

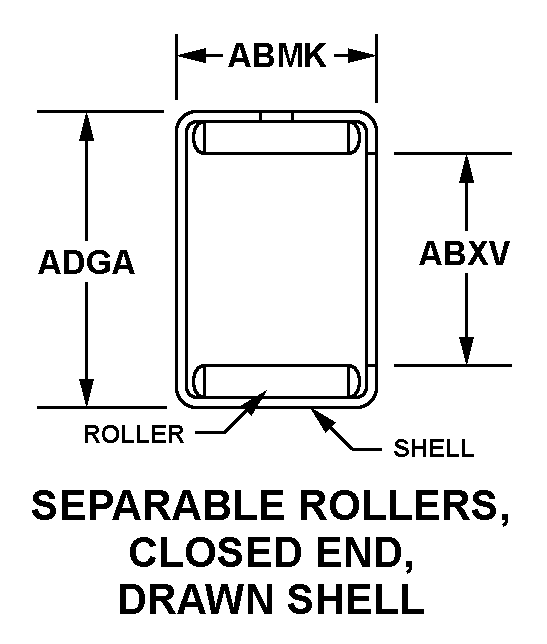

| STYLE DESIGNATOR | 420 SEPARABLE ROLLERS, CLOSED END, DRAWN SHELL |
| OVERALL WIDTH | 1.7500 INCHES NOMINAL |
| BORE DIAMETER | 2.2511 INCHES MINIMUM AND 2.2521 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 2.9994 INCHES MINIMUM AND 3.0000 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SPECIAL FEATURES | BEARINGS FOR @HARDENED SHAFTS ROCKWELL C 58 TO 65 |
Restrictions/Controls & Freight Information | NSN 3110-00-122-4491
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114800 | BEARING,ROLLER,THRUST |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-122-4491
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
