NSN 3110-00-117-4718 BB3571, BT11BA, 376749
Product Details | BEARING RETAINER AND ROLLERS
3110-00-117-4718 An assembled inner component of a roller bearing, consisting of a frame or inclosure which spaces and retains the rolling elements of a BEARING, ROLLER (as modified) and the rollers which are the rolling elements in a BEARING, ROLLER (as modified).
Part Alternates: BB3571, BT11BA, 376749, 705010, 799008, 11BA, 15556, 3110-00-117-4718, 00-117-4718, 3110001174718, 001174718
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1961 | 00-117-4718 | 00035 ( RETAINER AND ROLLERS, BEARING ) |
Drawings & Photos | NSN 3110-00-117-4718
Cross Reference | NSN 3110-00-117-4718
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11BA | 51588 | RBC BEARINGS INCORPORATED DIV WEST TRENTON DIVISION |
| 11BA | 60038 | TIMKEN CORPORATION, THE |
| 11BA | 61220 | TYSON BEARING CO DIV SKF INDUSTRIES INC |
| 15556 | 73740 | TRW INC TRW COMMERCIAL STEERING DIV |
| 376749 | 12204 | DAIMLER CHRYSLER |
| 376749 | 18113 | CHRYSLER CORP HAMTRAMCK ASSEMBLY |
| 705010 | 21450 | ARMY WEAPONS COMMAND ATTN AMSWE-REE-S |
| 799008 | 23040 | FORD MOTOR CO FORD PARTS AND SERVICE DIV |
| 799008 | 57526 | FORD MOTOR CO |
| 799008 | 60038 | TIMKEN CORPORATION, THE |
| BB3571 | 23040 | FORD MOTOR CO FORD PARTS AND SERVICE DIV |
| BB3571 | 57526 | FORD MOTOR CO |
| BT11BA | 01212 | FEDERAL-MOGUL CORP GOVERNMENT SALES DEPT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-117-4718
Technical Data | NSN 3110-00-117-4718
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

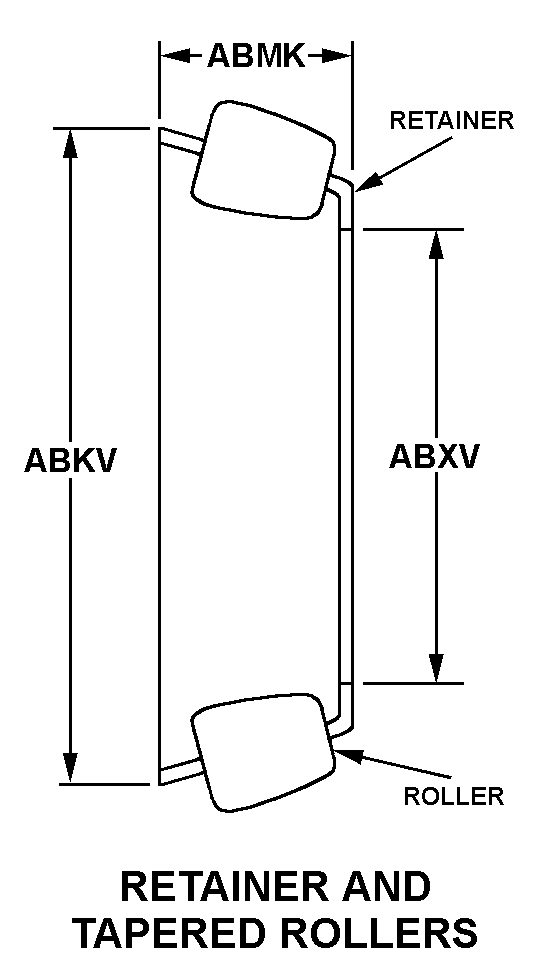

| STYLE DESIGNATOR | 590 RETAINER AND TAPERED ROLLERS |
| OUTSIDE DIAMETER | 1.7000 INCHES NOMINAL |
| OVERALL WIDTH | 0.4351 INCHES NOMINAL |
| BORE DIAMETER | 1.3109 INCHES NOMINAL |
| RETAINER FABRICATION METHOD | STAMPED |
| RETAINER PIECE QUANTITY | 1 |
| SPECIAL FEATURES | IN LINE,0.2200 IN. LARGEST DIA OF ROLLER |
Restrictions/Controls & Freight Information | NSN 3110-00-117-4718
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-117-4718
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
