NSN 3110-00-112-6541 D21028, D210-28, 00-112-6541
Product Details | JOURNAL ROLLER BEARING
3110-00-112-6541 An item in which the shaft or revolving part turns upon hardened rollers usually contained in a cage. It must contain an inner or outer race, or both. For items without a race(s), see RETAINER AND ROLLER, BEARING.
Part Alternates: D21028, D210-28, 3110-00-112-6541, 00-112-6541, 3110001126541, 001126541
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 04 FEB 1966 | 00-112-6541 | 00017 ( BEARING, ROLLER, JOURNAL ) |

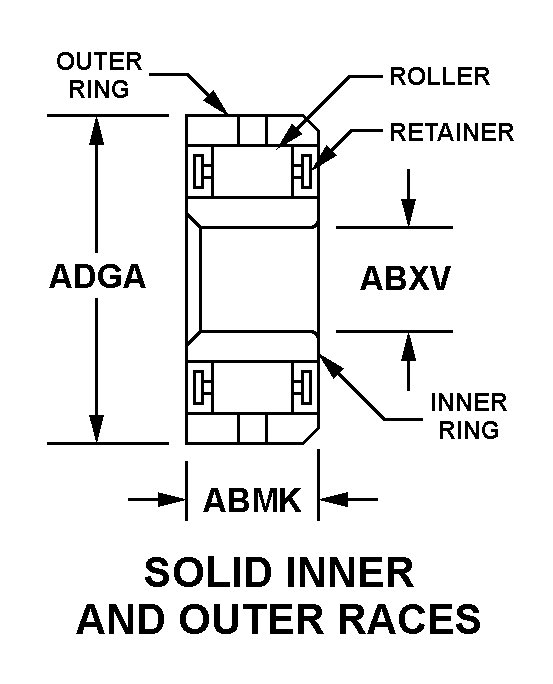

Drawings & Photos | NSN 3110-00-112-6541
Cross Reference | NSN 3110-00-112-6541
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D210-28 | 51600 | EMERSON POWER TRANSMISSION CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-112-6541
Technical Data | NSN 3110-00-112-6541
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 302 SOLID INNER AND OUTER RACES |
| OVERALL WIDTH | 1.7500 INCHES NOMINAL |
| BORE DIAMETER | 50.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 90.0 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCES FOR JOURNAL BEARINGS |
| SPECIAL FEATURES | OIL HOLE IN OUTER RING |
Restrictions/Controls & Freight Information | NSN 3110-00-112-6541
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
