Product Details | NEEDLE ROLLER BEARING

3110-00-108-7519 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.

Part Alternates: B88XP, B88P, 3110-00-108-7519, 00-108-7519, 3110001087519, 001087519

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG) NSN Assign. NIIN
31 01 JAN 1963 00-108-7519

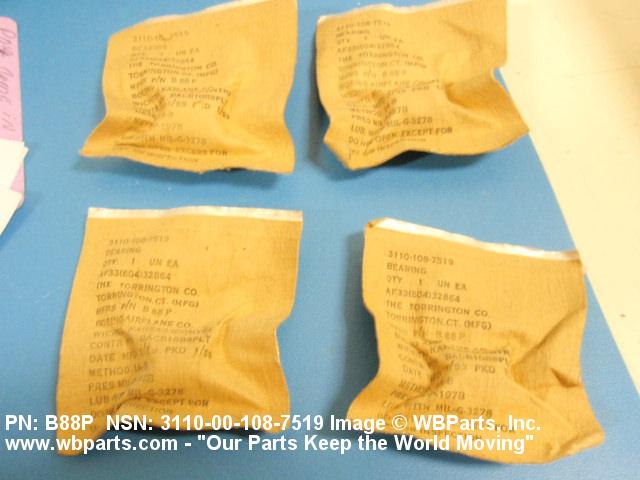

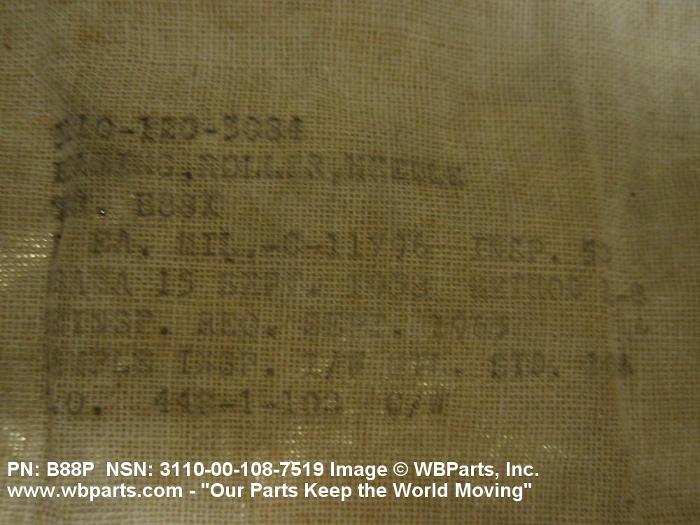

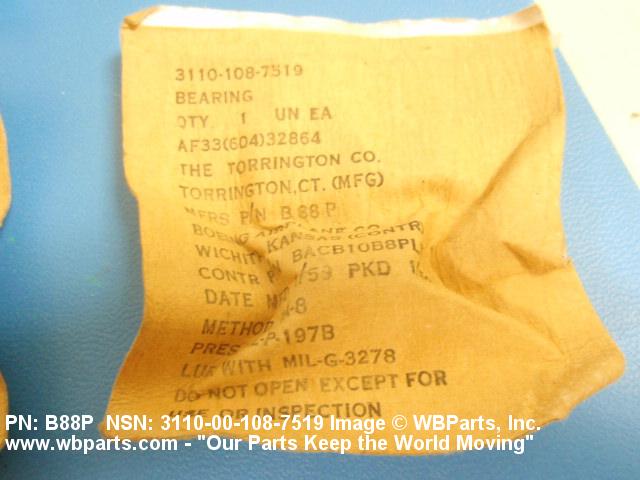

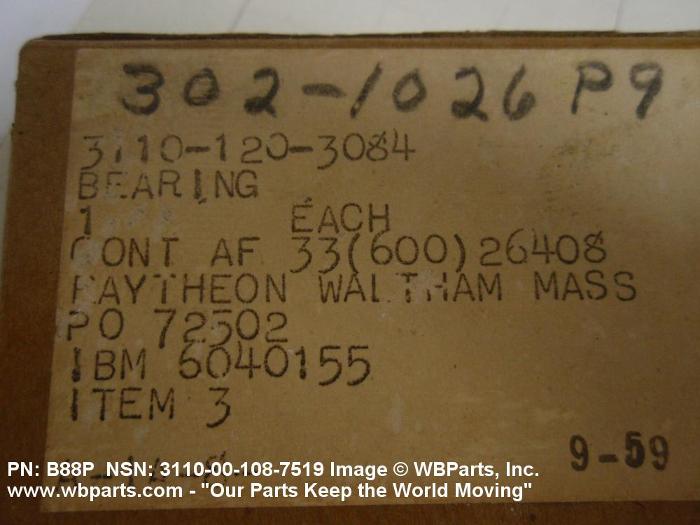

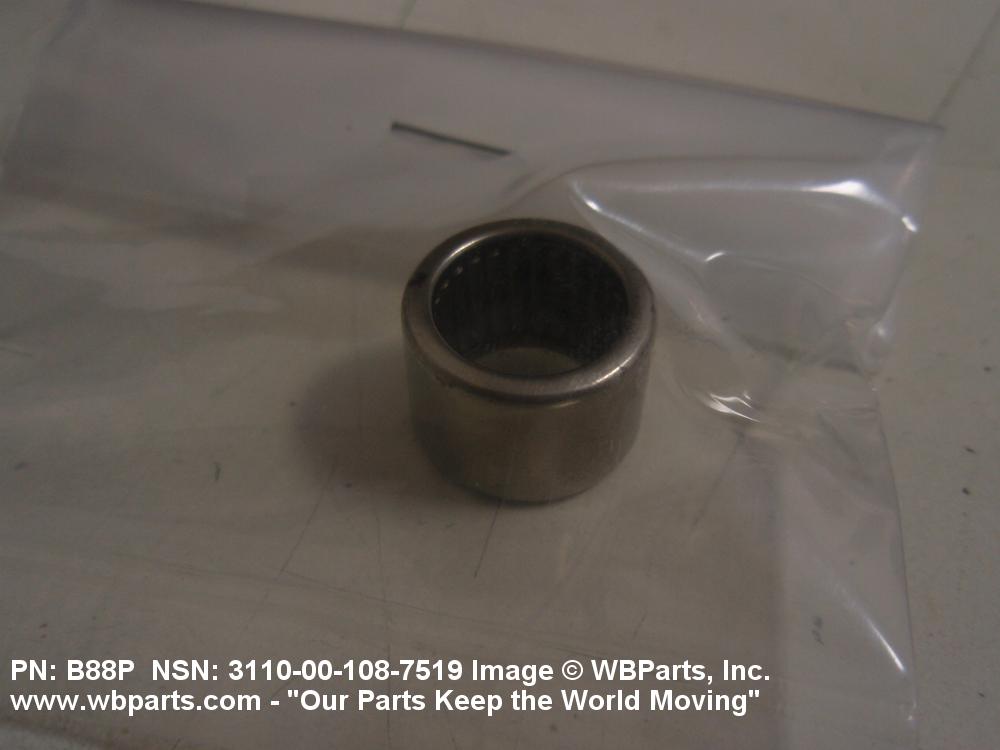

Drawings & Photos | NSN 3110-00-108-7519


Demand History | NSN 3110-00-108-7519

Part Number Request Date QTY Origin
3110-00-108-7519 2011-01-27 10 Germany
3110-00-108-7519 2009-01-14 4 Netherlands

Cross Reference | NSN 3110-00-108-7519

Part Number Cage Code Manufacturer
B88P 60380 TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT
B88XP 60380 TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-108-7519

Technical Data | NSN 3110-00-108-7519

Characteristic Specifications
SURFACE TREATMENT CADMIUM OVERALL
STYLE DESIGNATOR 410 NON-SEPARABLE, OPEN END, DRAWN SHELL
OVERALL WIDTH 0.5000 INCHES NOMINAL
BORE DIAMETER 0.5000 INCHES NOMINAL
OVERALL OUTSIDE DIAMETER 0.6875 INCHES NOMINAL
STANDARD TOLERANCE DESIGNATION AFBMA STD TOLERANCE FOR INDUSTRIAL NEEDLE BEARINGS
ALIGNMENT TYPE RIGID

Restrictions/Controls & Freight Information | NSN 3110-00-108-7519

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 114820 BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating P 77.5
Less than truck load rating P 77.5
Water commodity Code 742 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
