NSN 3110-00-100-2368 CB5744001PC73, CB57-44001PC73, CC16206RS

Product Details | ANNULAR BALL BEARING

3110-00-100-2368 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.

Part Alternates: CB5744001PC73, CB57-44001PC73, CC16206RS, CC1-6206-RS, S3021016P7ISSUE1, S302-1016P7ISSUE1, V1813, Z9506XR1A, RT9506XR1U9, 1206LT, 1206LT1B1, 1206LT-1B1, 1206LT1V1, 1206LT-1V1, 1206R, 12Z369112, 12Z369-112, 151282, 181538, 1815380, 181538-0 , 206KP, 206NP, 206P, 206PFS179, 206STB1SFA006A2100000, 206STB1SFA006A21-0000-0, 206SZ, 206SZQ5A7, 237713, 3021016P7, 302-1016P7, 30BC02XD, 326805, 4251821, 43206T, 6060108, 615350C91, 6206ARS, 6206ARSJ, 6206RS, 6206-RS, 6206RSZ, 69867, 732A502ACP3, 820784, 820-784, 907620, 9506, 9506X1, 3110-00-100-2368, 14-469-7428, 00-100-2368, 3110001002368, 001002368, 144697428

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1961	00-100-2368	00014 ( BEARING, BALL, ANNULAR )

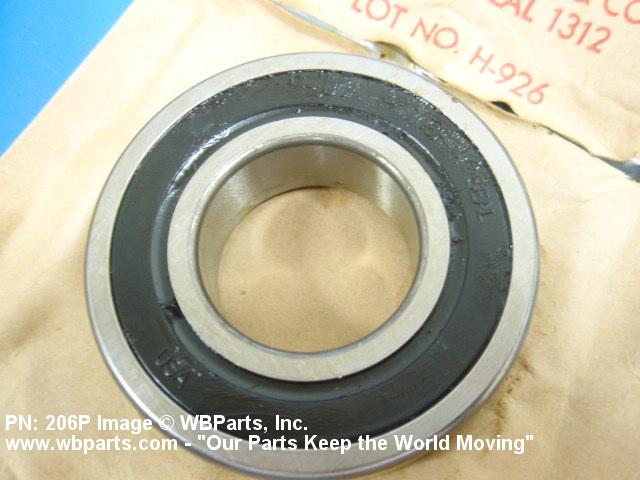

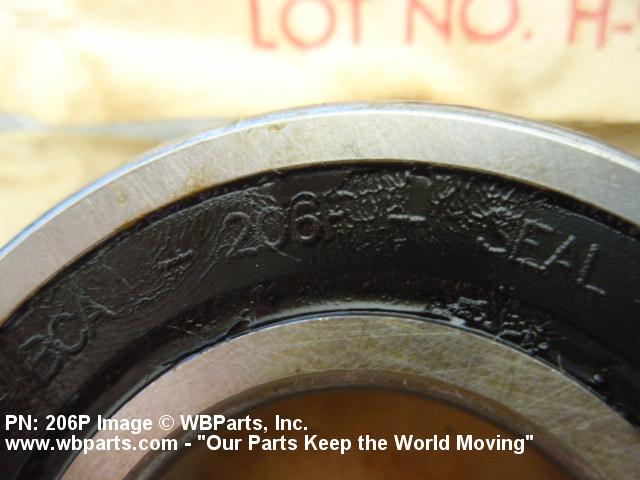

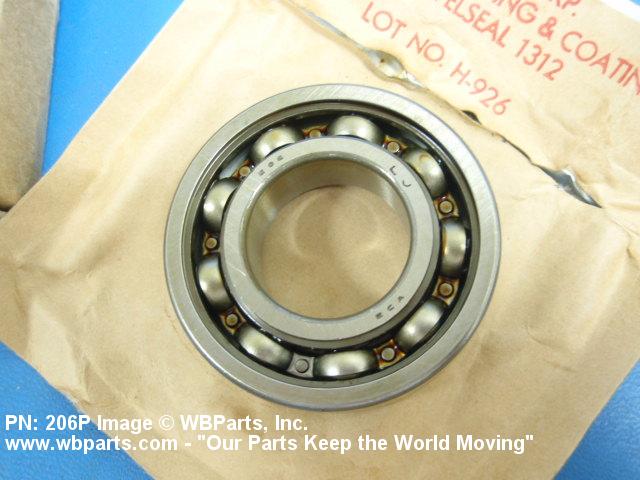

Drawings & Photos | NSN 3110-00-100-2368

Part Number	Request Date	QTY	Origin
3110-00-100-2368	2015-11-308	28	DIBBS
3110-00-100-2368	2015-01-11	28	DIBBS
3110-00-100-2368	2013-12-350	29	DIBBS
3110-00-100-2368	2011-06-153	723	DIBBS
30BC02XD	2010-03-81	1	United States
206P	2009-10-292	3	France
6206RSZ	2009-10-292	0	France
3110-00-100-2368	2009-07-205	121	DIBBS
3110-00-100-2368	2009-04-106	181	DIBBS
3110-00-100-2368	2008-05-148	7	DIBBS
3110-00-100-2368	2008-05-123	110	DIBBS
3110-00-100-2368	2008-01-08	87	DIBBS

Cross Reference | NSN 3110-00-100-2368

Part Number	Cage Code	Manufacturer
1206LT	21760	SCHATZ BEARING CORPORATION
1206LT-1B1	21760	SCHATZ BEARING CORPORATION
1206LT-1V1	21760	SCHATZ BEARING CORPORATION
1206R	21760	SCHATZ BEARING CORPORATION
12Z369-112	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
151282	83299	NACCO MATERIALS HANDLING GROUP INC DBA YALE MATERIALS HANDLING
181538	S3662	AB VOLVO PENTA
181538-0	61724	VOLVO PENTA OF THE AMERICAS INC
181538-0	S3662	AB VOLVO PENTA
206KP	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
206NP	28593	GENERAL EQUIPMENT CO
206P	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
206PFS179	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
206STB1SFA006A21-0000-0	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
206SZ	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
206SZQ5A7	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
237713	62983	EATON AEROSPACE LLC
302-1016P7	3B150	RAYTHEON TECHNICAL SERVICES COMPANY LLC
302-1016P7	49956	RAYTHEON COMPANY DBA RAYTHEON
302-1016P7	94144	RAYTHEON COMPANY DBA RAYTHEON
30BC02XD	70413	ANTI-FRICTION BEARING MFG ASSN INC THE
326805	62983	EATON AEROSPACE LLC
4251821	89926	NEW HOLLAND CONSTRUCTION
43206T	30076	NACCO MATERIALS HANDLING GROUP INC DBA HYSTER
6060108	94389	HOUDAILLE INDUSTRIES INC POWERMATIC DIV
615350C91	92679	NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION
6206-RS	52374	FLOWSERVE CORPORATION DBA FLOWSERVE
6206ARS	52676	SKF USA INC.
6206ARSJ	52676	SKF USA INC.
6206RS	52676	SKF USA INC.
6206RSZ	52676	SKF USA INC.
69867	15434	CUMMINS INC.
732A502ACP3	03497	GENERAL ELECTRIC CO OUTDOOR BREAKER BUSINESS SECTION
820-784	59015	TACO INC. DIV HEAT TRANSFER PRODUCTS DIVISION
907620	52788	GENERAL MOTORS CORP SAGINAW DIV
9506	24617	GENERAL MOTORS CORP
9506	29690	CORRECT MFG CORP
9506	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV
9506X1	24617	GENERAL MOTORS CORP
9506X1	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV
CB57-44001PC73	97384	AAI CORPORATION DBA TEXTRON SYSTEMS
CC1-6206-RS	52374	FLOWSERVE CORPORATION DBA FLOWSERVE
CC1-6206-RS	64589	SKF INDUSTRIES INC MOUNTED BEARING DIV
RT9506XR1U9	24617	GENERAL MOTORS CORP
RT9506XR1U9	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV
S302-1016P7ISSUE1	3B150	RAYTHEON TECHNICAL SERVICES COMPANY LLC
S302-1016P7ISSUE1	49956	RAYTHEON COMPANY DBA RAYTHEON
V1813	29690	CORRECT MFG CORP
Z9506XR1A	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-100-2368

Compare

Related Products | NSN 3110-00-100-2368

3110-00-100-2369, 3110-00-100-2370, 3110-00-100-2371, 3110-00-100-2372, 3110-00-100-2373

Technical Data | NSN 3110-00-100-2368

Characteristic	Specifications
MATERIAL	STEEL BALL STEEL INNER RING STEEL OUTER RING STEEL RETAINER RUBBER SYNTHETIC SEAL
STYLE DESIGNATOR	10A NON-LOADING GROOVE, NON-SEPARABLE
OVERALL WIDTH	16.0 MILLIMETERS NOMINAL
BORE DIAMETER	30.0 MILLIMETERS NOMINAL
OVERALL OUTSIDE DIAMETER	62.0 MILLIMETERS NOMINAL
STANDARD TOLERANCE DESIGNATION	ABEC NO.1
BORE SHAPE	STRAIGHT
SURFACE FINISH	GROUND
RETAINER FABRICATION METHOD	PRESSED
SEAL QUANTITY	1
BEARING SEAL TYPE	CONTACT
LOAD DIRECTION	RADIAL
INTERNAL FIT-UP DESIGNATION	STANDARD

Restrictions/Controls & Freight Information | NSN 3110-00-100-2368

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-100-2368

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
