NSN 3110-00-100-0620 K81962, 7J5032, 81962
Product Details | TAPERED ROLLER BEARING CUP
3110-00-100-0620 An outer component of a tapered roller bearing which provides a contact surface for the rolling elements of the bearing.
Part Alternates: K81962, 7J5032, 81962, 8JB39, 101239, 3110-00-100-0620, 00-100-0620, 3110001000620, 001000620
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1961 | 00-100-0620 | 00024 ( CUP, TAPERED ROLLER BEARING ) |

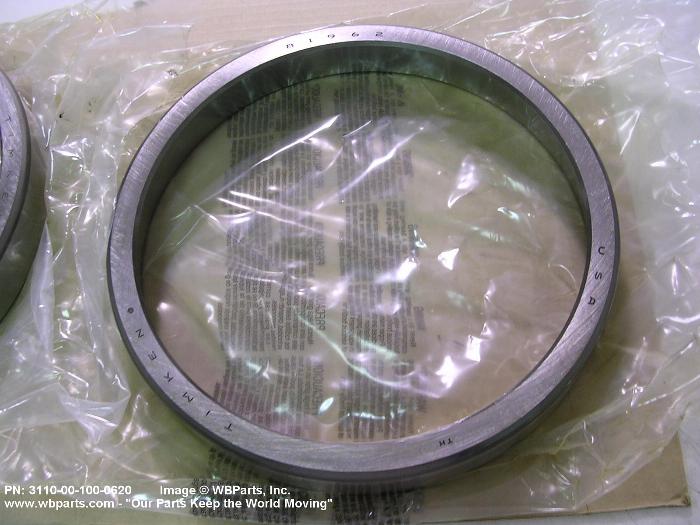

Drawings & Photos | NSN 3110-00-100-0620
Demand History | NSN 3110-00-100-0620
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 81962 | 2009-08-232 | 10 | United States |
| 3110-00-100-0620 | 2007-12-344 | 4 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-100-0620
Technical Data | NSN 3110-00-100-0620
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 566 NORMAL ANGLE |
| OUTSIDE DIAMETER | 9.6250 INCHES NOMINAL |
| OVERALL WIDTH | 1.3125 INCHES NOMINAL |
| BACKFACE CORNER RADIUS | 0.1250 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA CLASS 2 |
Restrictions/Controls & Freight Information | NSN 3110-00-100-0620
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 3110-00-100-0620
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
