NSN 3110-00-068-0079 P203NPPFS50160, 1581911, 15819-11
Product Details | ANNULAR BALL BEARING
3110-00-068-0079 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: P203NPPFS50160, 1581911, 15819-11, 6203 2RS1C3, 6203 2RSHC3, 62032RS1C3, 62032RSHC3, 62032RSJC3QLA, 3110-00-068-0079, 00-068-0079, 3110000680079, 000680079
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 11 JUL 1967 | 00-068-0079 | 00014 ( BEARING, BALL, ANNULAR ) |

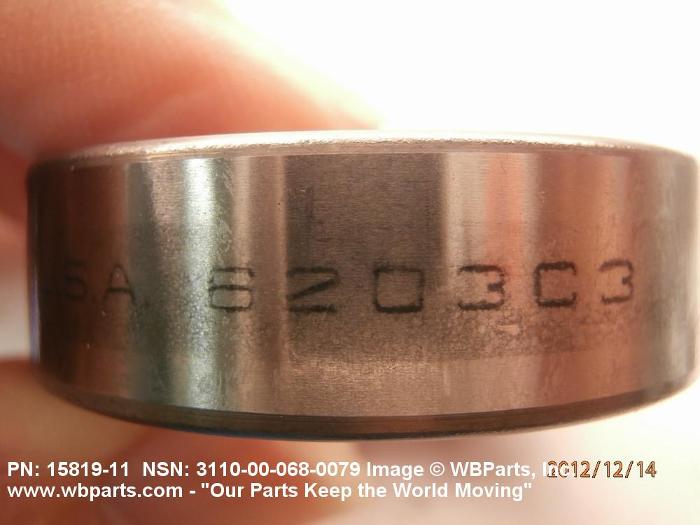

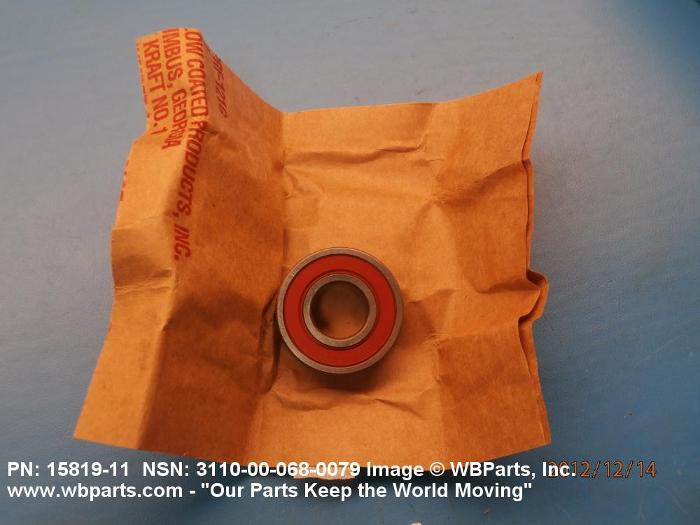

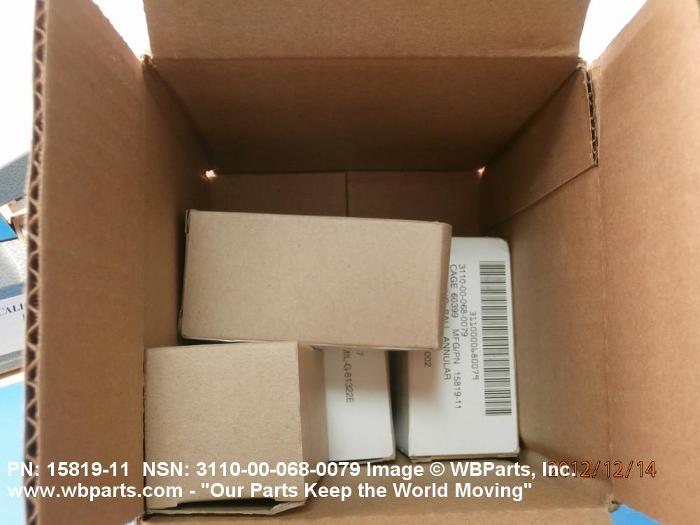

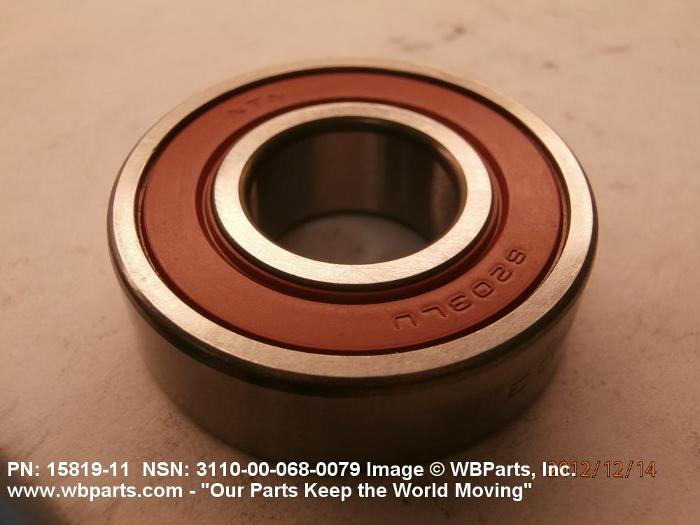

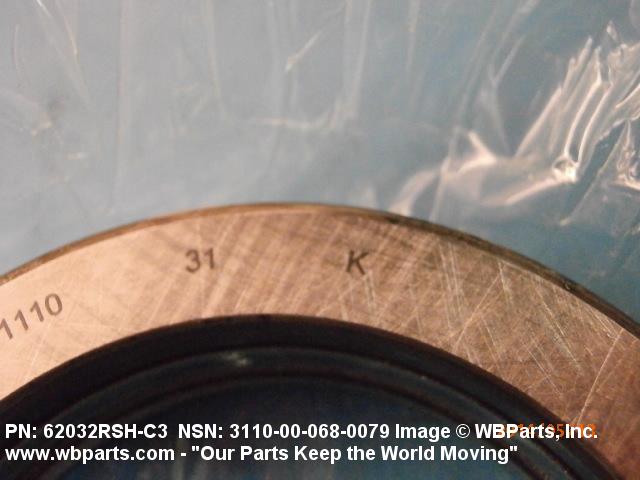

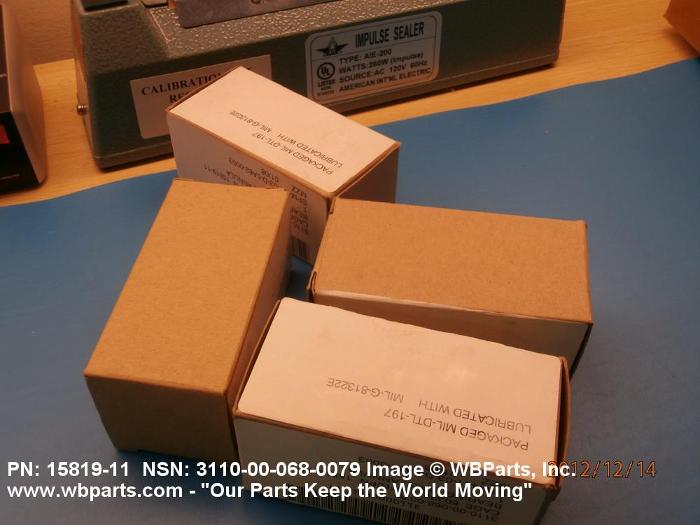

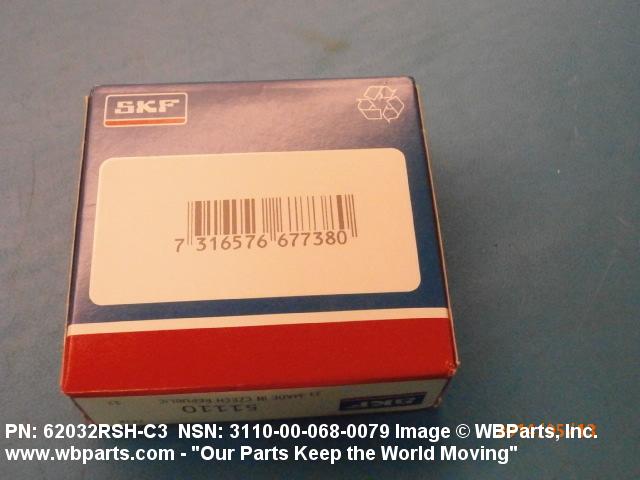

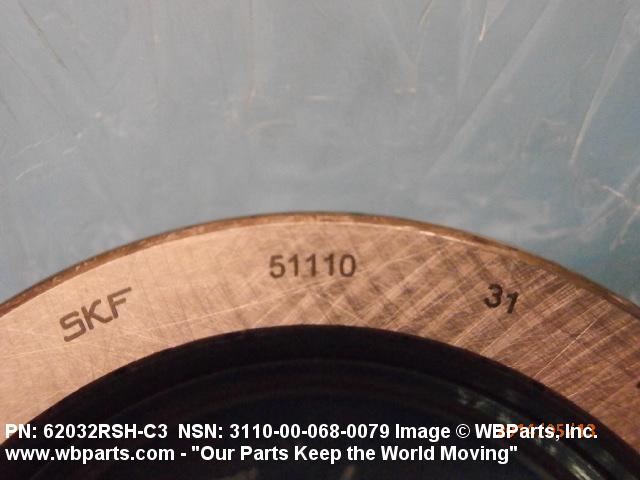

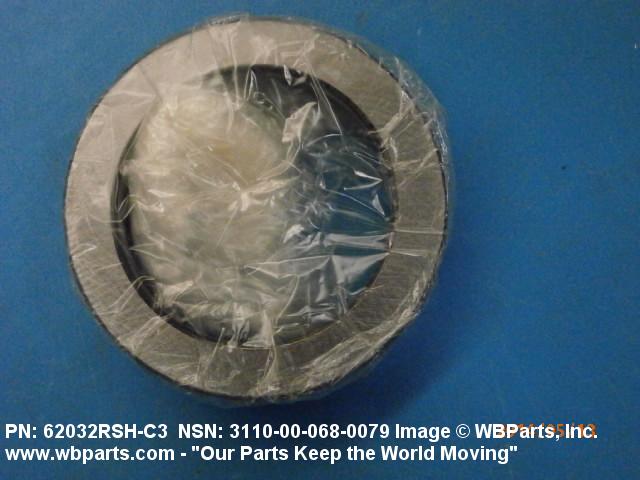

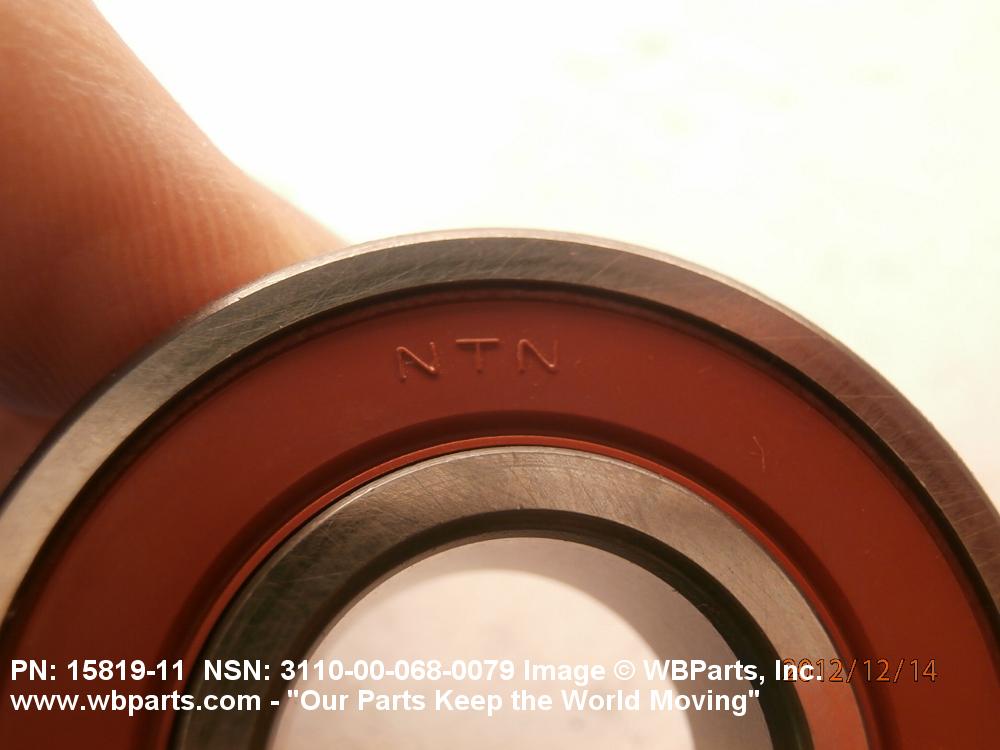

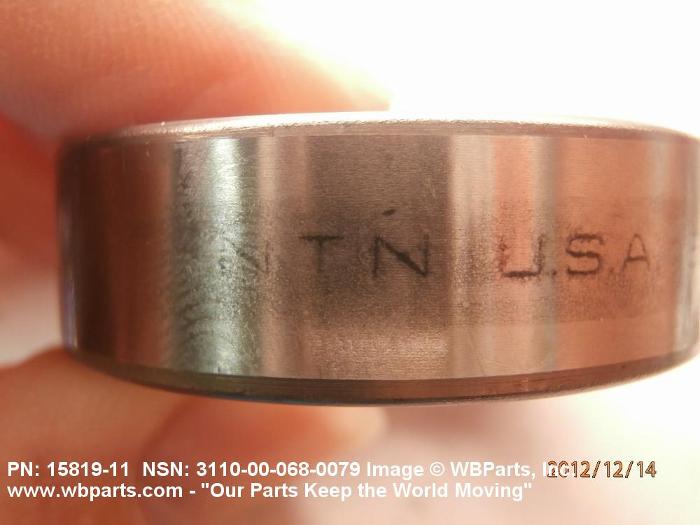

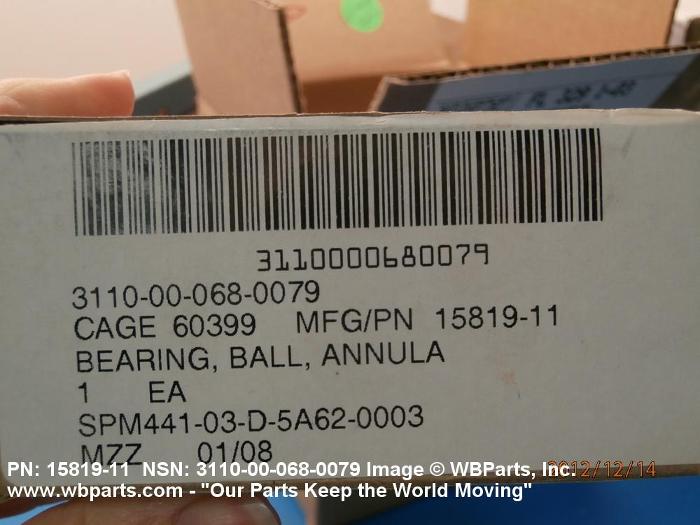

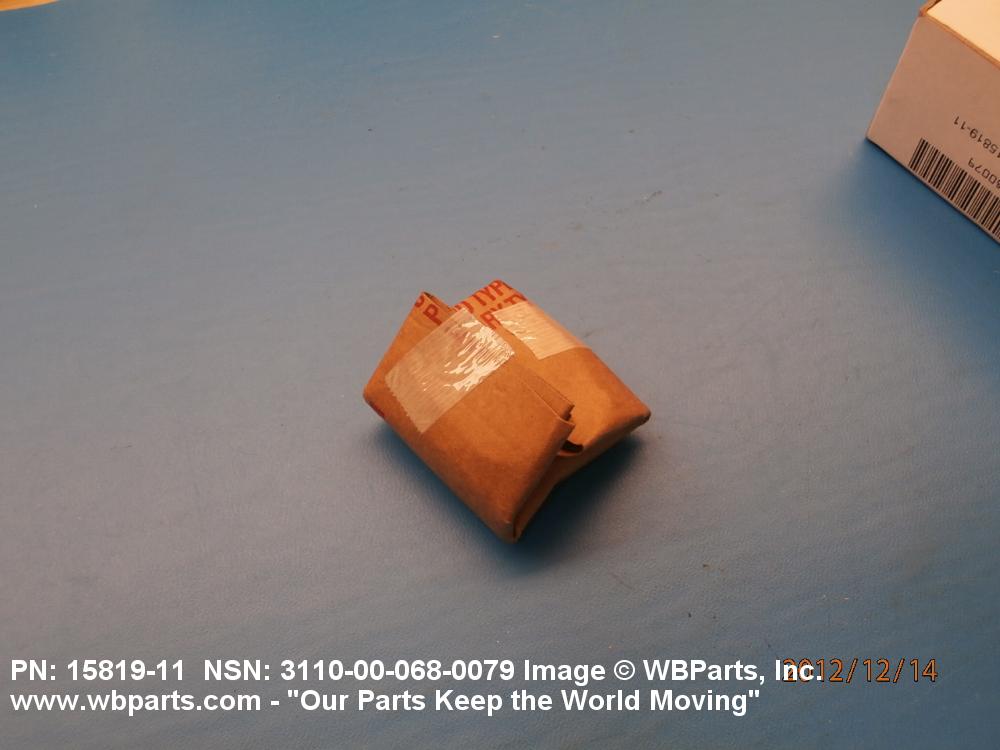

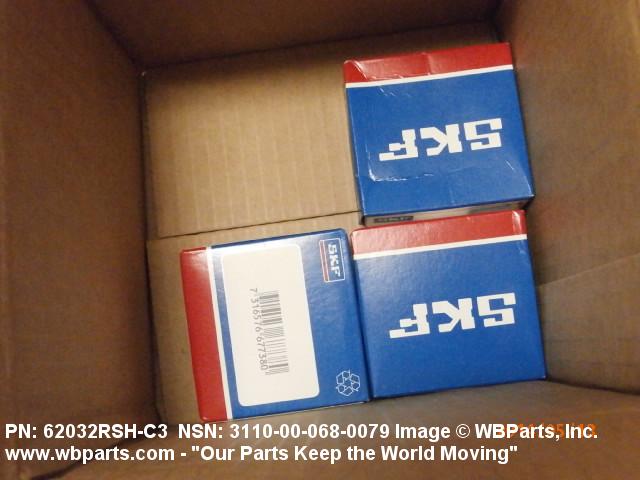

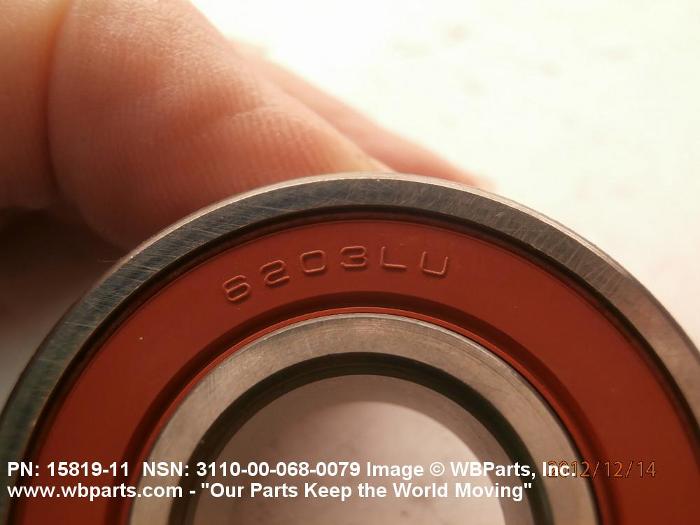

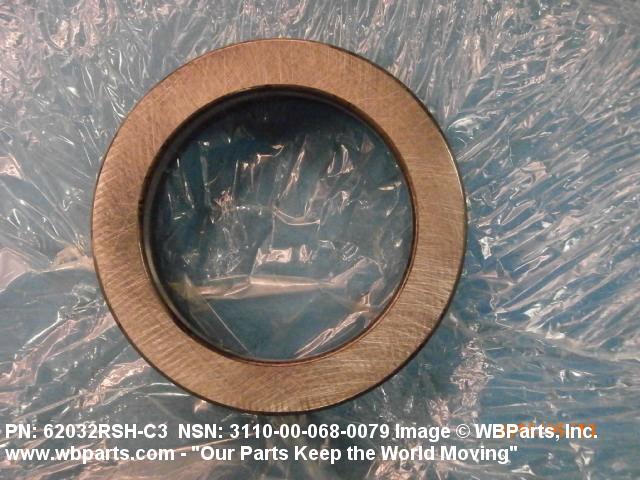

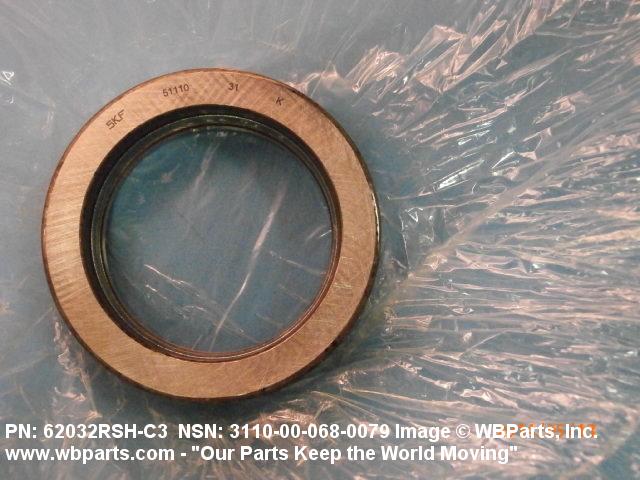

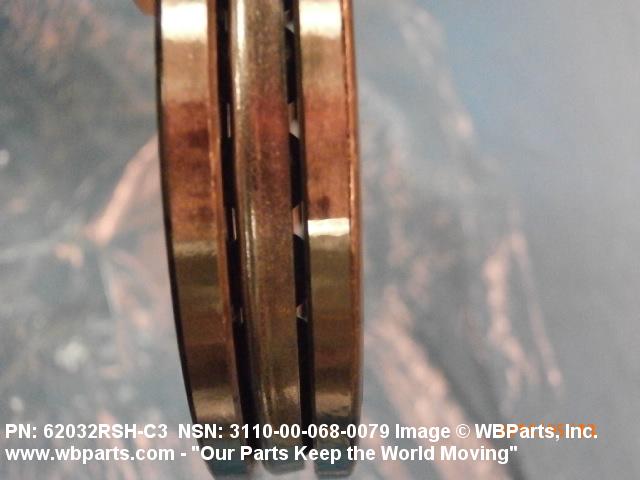

Drawings & Photos | NSN 3110-00-068-0079
Demand History | NSN 3110-00-068-0079
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 15819-11 | 2024-09-256 | 35 | DIBBS |
| 15819-11 | 2023-05-151 | 20 | Philippines |
| 3110-00-068-0079 | 2022-09-251 | 2 | Philippines |
| 15819-11 | 2022-02-46 | 159 | DIBBS |
| 3110-00-068-0079 | 2022-01-24 | 1 | us |
| 15819-11 | 2021-08-229 | 159 | DIBBS |
| 1581911 | 2021-06-152 | 2 | El Salvador |
| 15819-11 | 2019-02-44 | 208 | DIBBS |
| 3110-00-068-0079 | 2019-01-14 | 2 | US |
| 3110-00-068-0079 | 2019-01-14 | 2 | US |
| 3110-00-068-0079 | 2018-05-125 | 1 | US |
| P203NPPFS50160 | 2017-11-319 | 2 | BR |
| 3110-00-068-0079 | 2016-02-40 | 274 | DIBBS |
| 3110-00-068-0079 | 2014-04-120 | 2 | United States |
| 3110-00-068-0079 | 2014-03-62 | 358 | DIBBS |
| 3110-00-068-0079 | 2014-02-54 | 358 | DIBBS |
| 3110-00-068-0079 | 2013-11-318 | 115 | DIBBS |
| 3110-00-068-0079 | 2013-08-240 | 10 | Philippines |
| 3110-00-068-0079 | 2013-08-240 | 10 | Philippines |
| 3110-00-068-0079 | 2013-08-213 | 25 | Turkey |
| P203NPPFS50160 | 2013-07-196 | 2 | US |
| 3110-00-068-0079 | 2012-12-345 | 4 | United States |
| 3110-00-068-0079 | 2012-11-331 | 1075 | DIBBS |
| 3110-00-068-0079 | 2012-10-277 | 310 | DIBBS |
| 3110-00-068-0079 | 2012-08-221 | 825 | DIBBS |
| 3110-00-068-0079 | 2012-04-99 | 98 | DIBBS |
| P203NPPFS50160 | 2012-04-93 | 2 | ZA |
| 3110-00-068-0079 | 2012-03-67 | 600 | DIBBS |
| 3110-00-068-0079 | 2011-12-341 | 454 | DIBBS |
| 3110-00-068-0079 | 2011-06-174 | 432 | DIBBS |
| 3110-00-068-0079 | 2011-03-70 | 80 | US |
| 3110-00-068-0079 | 2011-01-25 | 9 | US |
| 62032RS1C3 | 2010-11-312 | 2 | US |
| 3110-00-068-0079 | 2010-08-216 | 20 | United States |
| 3110-00-068-0079 | 2010-05-130 | 91 | DIBBS |
| 3110-00-068-0079 | 2010-05-130 | 221 | DIBBS |
| 1581911 | 2010-04-105 | 6 | US |
| 3110-00-068-0079 | 2010-04-102 | 91 | DIBBS |
| 3110-00-068-0079 | 2010-02-36 | 141 | DIBBS |
| 3110-00-068-0079 | 2009-11-310 | 15 | DIBBS |
| 3110-00-068-0079 | 2009-07-187 | 10 | BA |
| 1581911 | 2009-05-141 | 16 | US |
| 3110-00-068-0079 | 2009-04-105 | 4 | BA |
| 3110-00-068-0079 | 2007-09-248 | 397 | DIBBS |
| 3110-00-068-0079 | 2007-03-61 | 6 | US |
| P203NPPFS50160 | 2007-03-61 | 4 | US |
Cross Reference | NSN 3110-00-068-0079
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 15819-11 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 15819-11 | 52676 | SKF USA INC. |
| 15819-11 | 60399 | REGAL-BELOIT CORPORATION DBA FASCO GROUP DIV CASSVILLE |
| 15819-11 | 70854 | BARDEN CORPORATION, THE DIV BARDEN PRECISION BEARINGS |
| 15819-11 | 81996 | U S ARMY AVIATION AND MISSILE COMMAND |
| 6203 2RS1C3 | 52676 | SKF USA INC. |
| 6203 2RSHC3 | 52676 | SKF USA INC. |
| 62032RSJC3QLA | 52676 | SKF USA INC. |
| P203NPPFS50160 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-068-0079
Related Products | NSN 3110-00-068-0079
Technical Data | NSN 3110-00-068-0079
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING STEEL RETAINER RUBBER SYNTHETIC SEAL |
| STYLE DESIGNATOR | 48 NON-LOADING GROOVE, NON-SEPARABLE |
| OVERALL WIDTH | 12.0 MILLIMETERS NOMINAL |
| BORE DIAMETER | 17.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 40.0 MILLIMETERS NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | LOOSE |
| SPECIAL FEATURES | SELECTED AND TESTED FOR EXTRA QUIET AND SMOOTH RUNNING QUALITIES |
| MANUFACTURERS CODE | 81996 |
| MFR SOURCE CONTROLLING REFERENCE | 15819-11 |
Restrictions/Controls & Freight Information | NSN 3110-00-068-0079
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-068-0079
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
