NSN 3110-00-036-6306 123CM10001511, 123CM10001-511, 00-036-6306
Product Details | BEARING RETAINING PLATE
3110-00-036-6306 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Part Alternates: 123CM10001511, 123CM10001-511, 3110-00-036-6306, 00-036-6306, 3110000366306, 000366306
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 08 NOV 1972 | 00-036-6306 | 22293 ( PLATE, RETAINING, BEARING ) |
Drawings & Photos | NSN 3110-00-036-6306
Demand History | NSN 3110-00-036-6306
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 123CM10001-511 | 2022-07-208 | 6 | DIBBS |
| 123CM10001-511 | 2022-07-200 | 6 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-036-6306
Related Products | NSN 3110-00-036-6306
Technical Data | NSN 3110-00-036-6306
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| OUTSIDE DIAMETER | 5.499 INCHES NOMINAL |

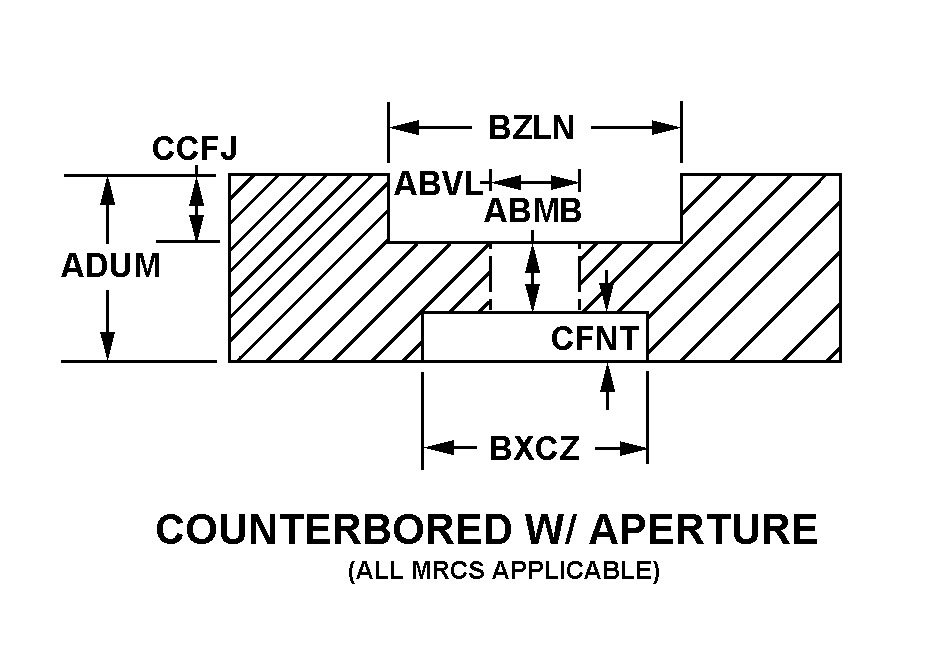

| CROSS-SECTIONAL SHAPE STYLE | C18A COUNTERBORED WITH APERTURE |
| APERTURE DIAMETER | 3.625 INCHES NOMINAL |
| OVERALL THICKNESS | 0.265 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED, COUNTERBORED |
| MOUNTING HOLE DIAMETER | 0.250 INCHES MINIMUM AND 0.252 INCHES MAXIMUM |
| COUNTERBORE DEPTH | 0.058 INCHES MINIMUM AND 0.061 INCHES MAXIMUM |
| COUNTERBORE DIAMETER | 4.380 INCHES MINIMUM AND 4.390 INCHES MAXIMUM |
| MOUNTING HOLE ARRANGEMENT STYLE | D15 SINGLE BOLT HOLE CIRCLE |
| BOLT CIRCLE HOLE QUANTITY | 7 |
| SPECIAL FEATURES | ONE GROOVE FOR PREFORMED PACKING;APERTURE:INCLUDED;APERTUR E SHAPE:ROUND |
| MANUFACTURERS CODE | 26512 |
| DESIGN CONTROL REFERENCE | 123CM10001-511 |
Restrictions/Controls & Freight Information | NSN 3110-00-036-6306
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-036-6306
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
