NSN 3110-00-005-6187 406228, 00-005-6187, 000056187
Product Details | BEARING RETAINING PLATE
3110-00-005-6187 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Part Alternates: 406228, 3110-00-005-6187, 00-005-6187, 3110000056187, 000056187
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 09 JUN 1972 | 00-005-6187 | 22293 ( PLATE, RETAINING, BEARING ) |
Drawings & Photos | NSN 3110-00-005-6187
Cross Reference | NSN 3110-00-005-6187
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 406228 | 31361 | WOODWARD, INC. DBA INDUSTRIAL PRODUCTS GROUP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-005-6187
Related Products | NSN 3110-00-005-6187
Technical Data | NSN 3110-00-005-6187
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 932 OVERALL |
| STYLE DESIGNATOR | B1 ROUND |
| OUTSIDE DIAMETER | 1.860 INCHES MINIMUM AND 1.870 INCHES MAXIMUM |

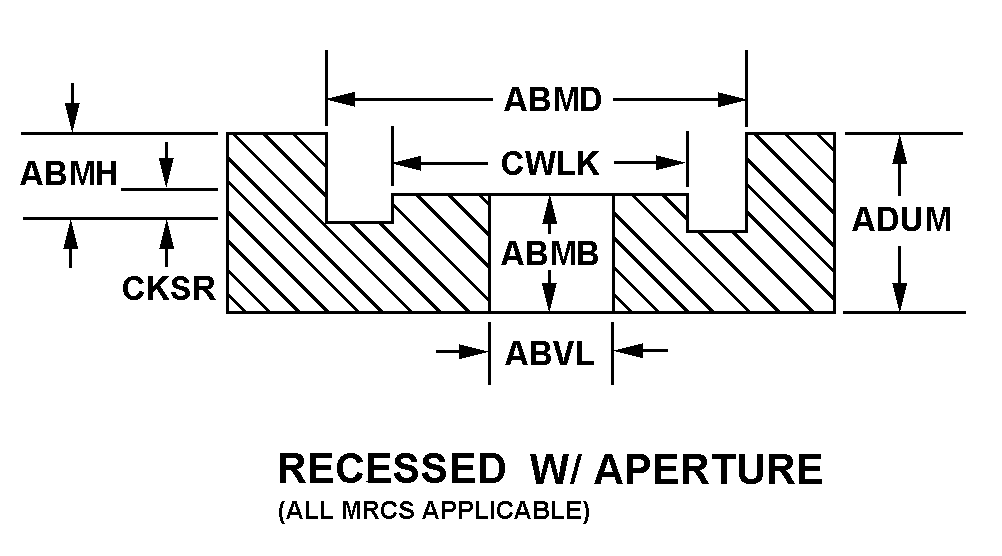

| CROSS-SECTIONAL SHAPE STYLE | C16A RECESSED WITH APERTURE |
| MINOR THICKNESS | 0.394 INCHES NOMINAL |
| RECESS DEPTH | 0.422 INCHES MINIMUM |
| APERTURE DIAMETER | 0.2500 INCHES MINIMUM AND 0.2505 INCHES MAXIMUM |
| OVERALL THICKNESS | 0.658 INCHES NOMINAL |
| OUTSIDE RAISED SURFACE DIAMETER | 0.390 INCHES MINIMUM AND 0.400 INCHES MAXIMUM |
| RECESS DIAMETER | 1.1024 INCHES MINIMUM AND 1.1031 INCHES MAXIMUM |
| RAISED SURFACE HEIGHT | 0.215 INCHES MINIMUM AND 0.218 INCHES MAXIMUM |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.188 INCHES NOMINAL |
| MOUNTING HOLE ARRANGEMENT STYLE | D1 VERTICAL CENTERLINE |
| DISTANCE BETWEEN HOLES ALONG WIDTH | 1.938 INCHES NOMINAL |
| DISTANCE FROM HORIZONTAL CENTERLINE TO CENTER OF LOWER HOLE | 0.964 INCHES MINIMUM AND 0.974 INCHES MAXIMUM |
| SPECIAL FEATURES | NOTCHED MOUNTING HOLES; SECONDARY RAISED SURFACE ON BACK FACE 0.495 IN. DIA MIN 0.497 IN. DIA MAX,CBORE 0.410 IN. DIA |
| MANUFACTURERS CODE | 31361 |
| DESIGN CONTROL REFERENCE | 406228 |
Restrictions/Controls & Freight Information | NSN 3110-00-005-6187
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-005-6187
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
