NSN 3040-01-500-7988 H547024933, H547-0249-33, 1677106787
Product Details | SHOULDERED SHAFT
3040-01-500-7988 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: H547024933, H547-0249-33, 1677106787, 167-7106787, 167710678733, 167-7106787-33, 3040-01-500-7988, 01-500-7988, 3040015007988, 015007988
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 11 SEP 2002 | 01-500-7988 | 22914 ( SHAFT, SHOULDERED ) |
Drawings & Photos | NSN 3040-01-500-7988
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-500-7988
Technical Data | NSN 3040-01-500-7988
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY K-500 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-286,FORM:2,CONDITION:ANNEALE D & AGE HARDENED,FINISH:B FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE FINISH | 32.0 MICROINCHES |

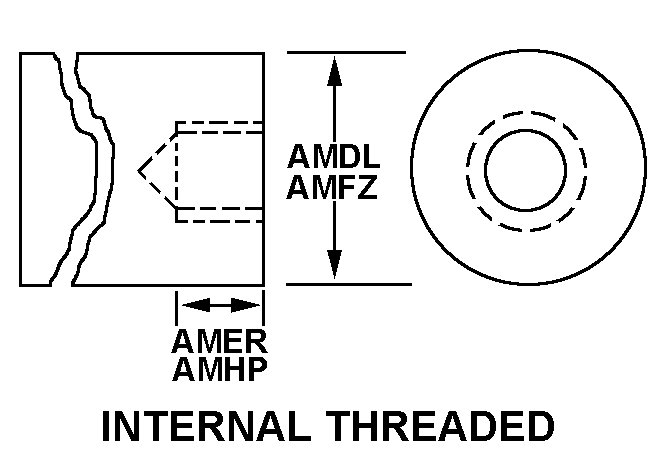

| FIRST END STYLE | 9 INTERNAL THREADED |
| FIRST END DIAMETER | 1.1220 INCHES MINIMUM AND 1.1230 INCHES MAXIMUM |
| FIRST END INTERNAL THREAD LENGTH | 1.380 INCHES MINIMUM |
| END SIMILARITY | NOT IDENTICAL |

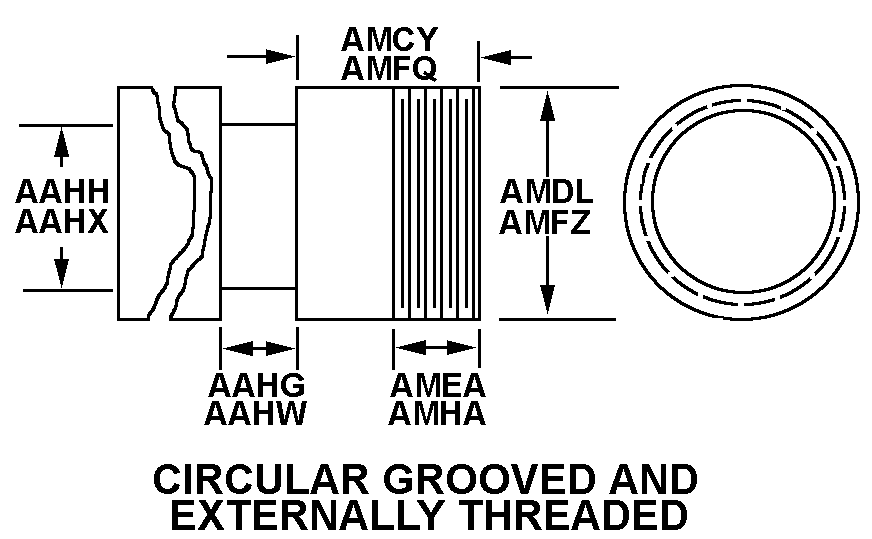

| SECOND END STYLE | 30 CIRCULAR GROOVED AND EXTERNALLY THREADED |
| SECOND END GROOVE WIDTH | 0.3800 INCHES NOMINAL |
| SECOND END GROOVE DIAMETER | 0.7000 INCHES NOMINAL |
| SECOND END DISTANCE FROM END TO GROOVE | 0.990 INCHES NOMINAL |
| SECOND END DIAMETER | 0.8750 INCHES NOMINAL |
| SECOND END EXTERNAL THREAD LENGTH | 0.990 INCHES NOMINAL |
| LARGEST STEP DIAMETER | 1.122 INCHES MINIMUM AND 1.123 INCHES MAXIMUM |
| OVERALL LENGTH | 4.270 INCHES NOMINAL |
| STEP QUANTITY | 3 |
| SPECIAL FEATURES | FIRST END OF SHAFT PROVIDED WITH 0.750-10-UNC-3B INTERNAL THREADS. SECOND END OF SHAFT PROVIDED WITH 0.875-9UNC-3A EXTERNAL THREADS |
| III END ITEM IDENTIFICATION | 30 INCH UPPER HATCH ASSEMBLY FOR LOS ANGELES CLASS SSN (688) |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SHAFT,GEAR |
Restrictions/Controls & Freight Information | NSN 3040-01-500-7988
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126900 | POWER TRANS SHAFTING/SHAFTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-01-500-7988
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
