Product Details | SHOULDERED SHAFT
3040-01-500-7316 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: 7018029, 7018029002, 7018029-002, 3040-01-500-7316, 01-500-7316, 3040015007316, 015007316
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 09 SEP 2002 | 01-500-7316 | 22914 ( SHAFT, SHOULDERED ) |
Drawings & Photos | NSN 3040-01-500-7316
Demand History | NSN 3040-01-500-7316
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-01-500-7316 | 2018-04-91 | 8 | DIBBS |
| 3040-01-500-7316 | 2017-07-205 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-500-7316
Technical Data | NSN 3040-01-500-7316
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| FIRST END STYLE | 1 PLAIN |
| FIRST END DIAMETER | 0.3060 INCHES MINIMUM AND 0.3100 INCHES MAXIMUM |
| END SIMILARITY | NOT IDENTICAL |

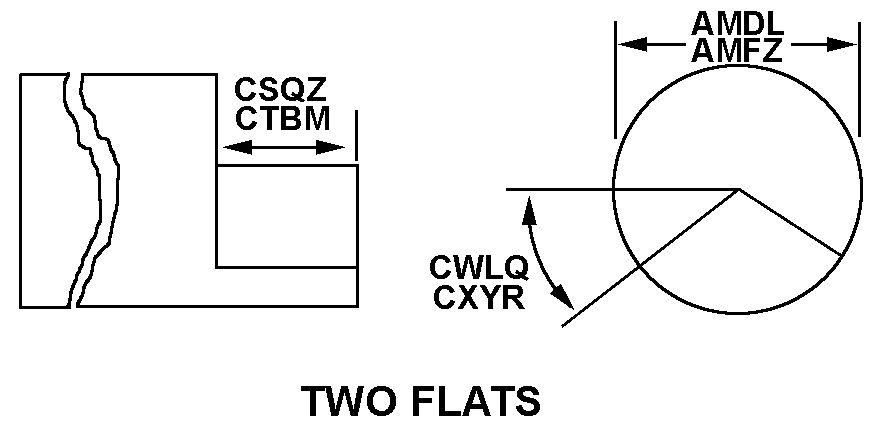

| SECOND END STYLE | 96 TWO FLATS |
| SECOND END DIAMETER | 0.3690 INCHES MINIMUM AND 0.3730 INCHES MAXIMUM |
| SECOND END STEP LENGTH | 0.600 INCHES NOMINAL |
| SECOND END ANGLE BETWEEN FLATS | 90.0 DEGREES NOMINAL |
| LARGEST STEP DIAMETER | 0.557 INCHES MINIMUM AND 0.560 INCHES MAXIMUM |
| OVERALL LENGTH | 2.890 INCHES MINIMUM AND 2.893 INCHES MAXIMUM |
| STEP QUANTITY | 7 |
| SPECIAL FEATURES | NEAR FIRST END, PROVIDED WITH 0.500-20UNC-2A LEFT HAND THREADS X 0.675 LONG |
| III END ITEM IDENTIFICATION | USED ON CEC & CES. NEXT HIGHER ASSEMBLIES 7017844, 7018093, & 7018094 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SHAFT,LATCH |
