NSN 3040-01-500-0713 PL-04-10-000 ITEM 256, PL0410000ITEM256, 0417200
Product Details | DISK BRAKE SHOE
3040-01-500-0713 A replaceable metal plate, usually affixed with a fabric friction lining as the contact pad surface. It may be of circular, kidney, or rectangular shape. When mounted in a caliper cylinder housing, between brake disk and hydraulic or pneumatic piston(s), or wheel and caliper lever, it is so designed that actuated pressure, on the shoe friction pad, will retard or stop motion. Excludes BRAKE, DUAL DISK; BRAKE, SINGLE DISK; BRAKE SHOE; and DISK, BRAKE.20316300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: PL-04-10-000 ITEM 256, PL0410000ITEM256, 0417200, 04-17-200, 3040-01-500-0713, 01-500-0713, 3040015000713, 015000713
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 13 AUG 2002 | 01-500-0713 | 33503 ( DISK BRAKE SHOE ) |
Drawings & Photos | NSN 3040-01-500-0713
Demand History | NSN 3040-01-500-0713
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 04-17-200 | 2024-10-289 | 2 | DIBBS |
| 04-17-200 | 2024-10-277 | 2 | DIBBS |
| 04-17-200 | 2023-07-187 | 4 | DIBBS |
| 04-17-200 | 2023-06-159 | 2 | DIBBS |
| 04-17-200 | 2023-04-110 | 3 | DIBBS |
| 04-17-200 | 2023-02-52 | 6 | DIBBS |
| 04-17-200 | 2023-02-44 | 2 | DIBBS |
| 04-17-200 | 2023-02-37 | 6 | DIBBS |
| 04-17-200 | 2023-02-36 | 1 | DIBBS |
| 04-17-200 | 2022-10-300 | 1 | DIBBS |
| PL-04-10-000 ITEM 256 | 2022-10-300 | 1 | DIBBS |
| 04-17-200 | 2022-07-202 | 1 | DIBBS |
| PL-04-10-000 ITEM 256 | 2022-07-202 | 1 | DIBBS |
| 04-17-200 | 2022-06-179 | 3 | DIBBS |
| PL-04-10-000 ITEM 256 | 2022-06-179 | 3 | DIBBS |
| 04-17-200 | 2022-06-159 | 1 | DIBBS |
| PL-04-10-000 ITEM 256 | 2022-06-159 | 1 | DIBBS |
| 04-17-200 | 2022-06-157 | 2 | DIBBS |
| PL-04-10-000 ITEM 256 | 2022-06-157 | 2 | DIBBS |
| 04-17-200 | 2022-03-69 | 1 | DIBBS |
| PL-04-10-000 ITEM 256 | 2022-03-69 | 1 | DIBBS |
| 04-17-200 | 2022-02-33 | 1 | DIBBS |
| PL-04-10-000 ITEM 256 | 2022-02-33 | 1 | DIBBS |
| 04-17-200 | 2021-07-202 | 1 | DIBBS |
| PL-04-10-000 ITEM 256 | 2021-07-202 | 1 | DIBBS |
| 04-17-200 | 2021-07-188 | 1 | DIBBS |
| PL-04-10-000 ITEM 256 | 2021-07-188 | 1 | DIBBS |
| 04-17-200 | 2020-04-104 | 1 | DIBBS |
| PL-04-10-000 ITEM 256 | 2020-04-104 | 1 | DIBBS |
| 04-17-200 | 2020-03-91 | 1 | DIBBS |
| PL-04-10-000 ITEM 256 | 2020-03-91 | 1 | DIBBS |
| 04-17-200 | 2019-09-267 | 1 | DIBBS |
| PL-04-10-000 ITEM 256 | 2019-09-267 | 1 | DIBBS |
| 3040-01-500-0713 | 2018-01-23 | 1 | DIBBS |
| 3040-01-500-0713 | 2017-05-130 | 1 | DIBBS |
| 3040-01-500-0713 | 2015-09-246 | 1 | DIBBS |
| 3040-01-500-0713 | 2015-08-235 | 1 | DIBBS |
| 3040-01-500-0713 | 2013-04-94 | 4 | DIBBS |
| 3040-01-500-0713 | 2011-12-339 | 4 | DIBBS |
| 3040-01-500-0713 | 2010-11-316 | 1 | DIBBS |
| 3040-01-500-0713 | 2009-12-346 | 1 | DIBBS |
| 3040-01-500-0713 | 2009-11-306 | 2 | DIBBS |
| 3040-01-500-0713 | 2009-08-227 | 1 | DIBBS |
| 3040-01-500-0713 | 2007-10-285 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-500-0713
Technical Data | NSN 3040-01-500-0713
| Characteristic | Specifications |
|---|---|
| FRICTION LINING MATERIAL | RUBBER, SYNTHETIC |

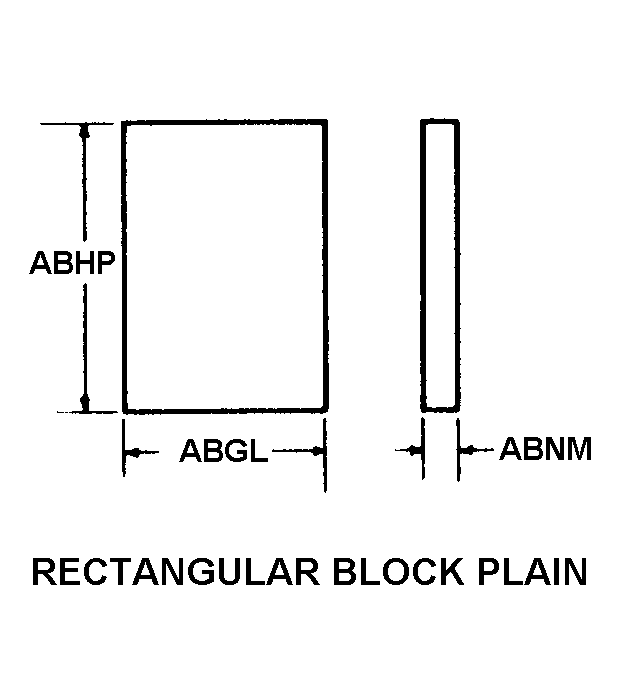

| LINING STYLE | 11 RECTANGULAR BLOCK PLAIN |
| WIDTH | 1.500 INCHES NOMINAL |
| OVERALL LENGTH | 5.945 INCHES NOMINAL |
| THICKNESS | 0.740 INCHES NOMINAL |
| ATTACHMENT METHOD | BOLTED |

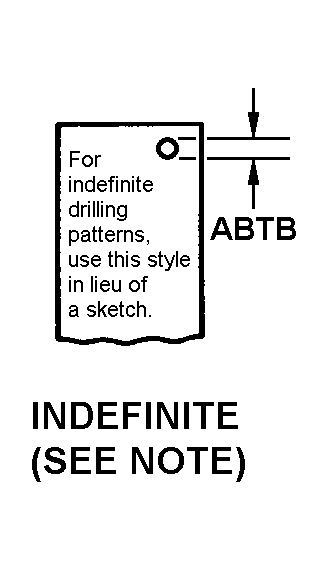

| HOLE ARRANGEMENT STYLE | C1 INDEFINITE |
