NSN 3040-01-447-3030 DAA3116D332, DAA3116D332015, DAA3116D332-015
Product Details | SHOULDERED SHAFT
3040-01-447-3030 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: DAA3116D332, DAA3116D332015, DAA3116D332-015, 3040-01-447-3030, 01-447-3030, 3040014473030, 014473030
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 AUG 1997 | 01-447-3030 | 22914 ( SHAFT, SHOULDERED ) |
Drawings & Photos | NSN 3040-01-447-3030
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-447-3030
Technical Data | NSN 3040-01-447-3030
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5629 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE FINISH | 16.0 MICROINCHES |

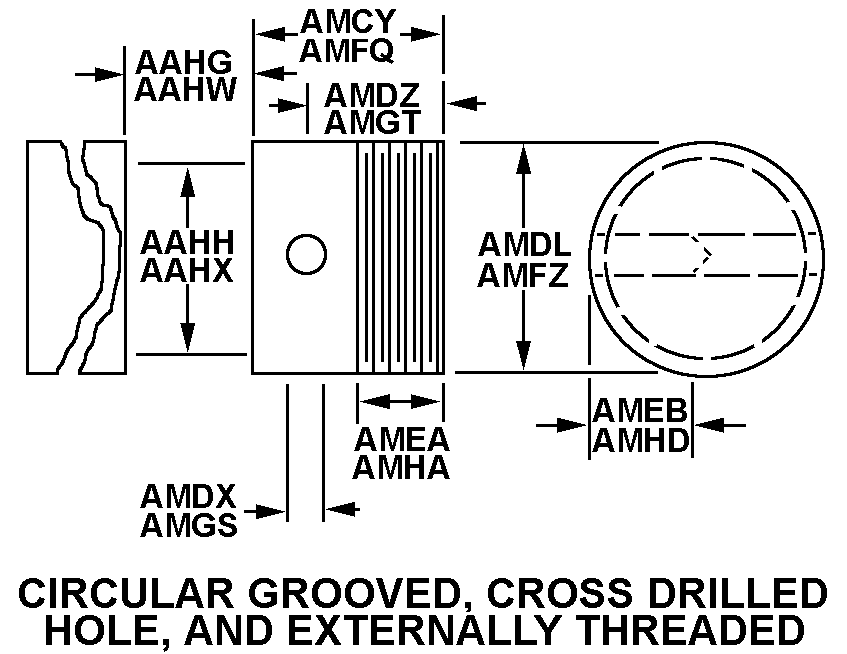

| FIRST END STYLE | 63 CIRCULAR GROOVED, CROSS DRILLED HOLE, AND EXTERNALLY THREADED |
| FIRST END GROOVE WIDTH | 0.2000 INCHES NOMINAL |
| FIRST END GROOVE DIAMETER | 0.8700 INCHES NOMINAL |
| FIRST END DISTANCE FROM END TO GROOVE | 0.7700 INCHES NOMINAL |
| FIRST END DIAMETER | 1.0000 INCHES NOMINAL |
| FIRST END HOLE DIAMETER | 0.1460 INCHES NOMINAL |
| FIRST END DISTANCE FROM HOLE CENTER TO END | 0.2040 INCHES NOMINAL |
| FIRST END EXTERNAL THREAD LENGTH | 0.7700 INCHES NOMINAL |
| END SIMILARITY | IDENTICAL |
| LARGEST STEP DIAMETER | 1.4985 INCHES NOMINAL |
| OVERALL LENGTH | 7.3700 INCHES NOMINAL |
| STEP QUANTITY | 5 |
| III END ITEM IDENTIFICATION | AIRCRAFT,B-2 BOMBER |
