NSN 3040-01-436-9056 12364517, 01-436-9056, 014369056

Product Details | SHOULDERED SHAFT

3040-01-436-9056 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.

Part Alternates: 12364517, 3040-01-436-9056, 01-436-9056, 3040014369056, 014369056

Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
30	30 SEP 1996	01-436-9056	22914 ( SHAFT, SHOULDERED )

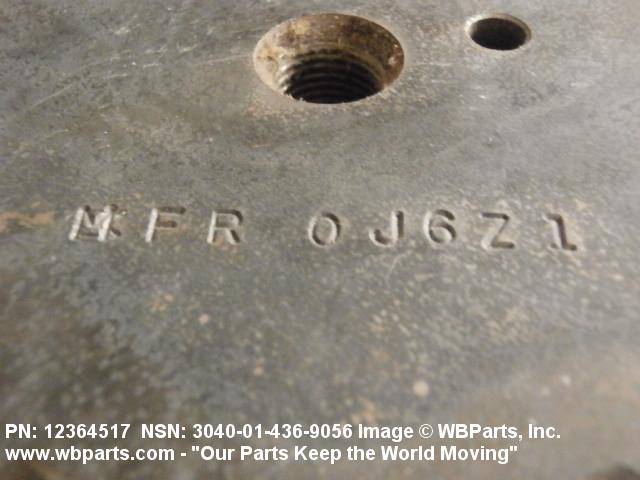

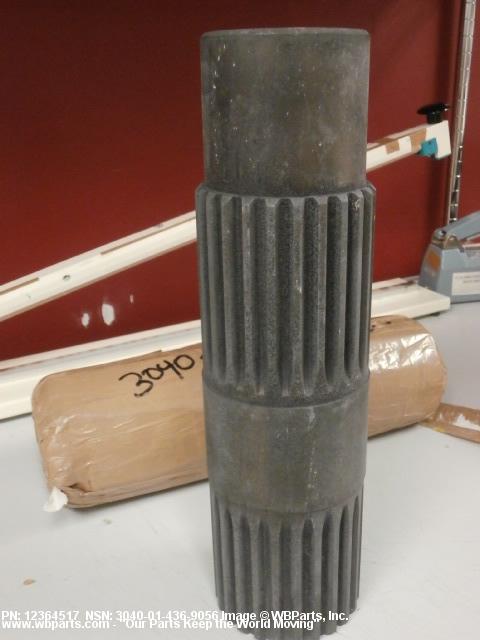

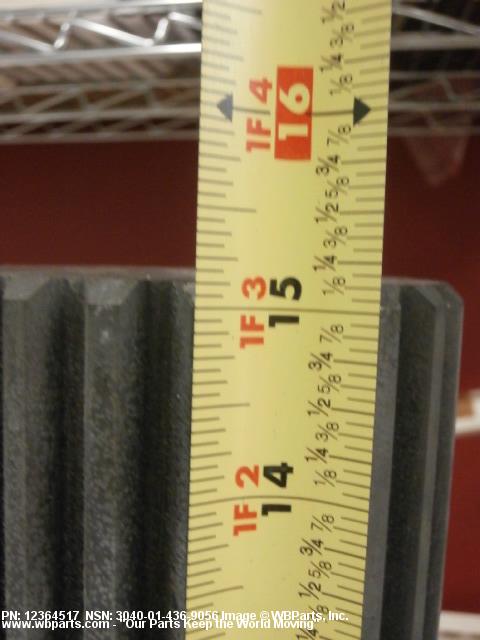

Drawings & Photos | NSN 3040-01-436-9056

Part Number	Request Date	QTY	Origin
3040-01-436-9056	2022-09-249	6	DIBBS
3040-01-436-9056	2017-06-155	12	DIBBS
3040-01-436-9056	2016-05-129	9	DIBBS
3040-01-436-9056	2016-03-63	5	DIBBS
3040-01-436-9056	2016-02-40	2	DIBBS
3040-01-436-9056	2016-02-39	2	United States
3040-01-436-9056	2016-02-33	2	DIBBS
12364517	2015-09-245	2	US
3040-01-436-9056	2015-08-237	2	DIBBS
3040-01-436-9056	2015-07-202	2	DIBBS
3040-01-436-9056	2015-06-168	2	United States
3040-01-436-9056	2015-05-138	2	DIBBS
3040-01-436-9056	2014-08-231	1	DIBBS
3040-01-436-9056	2014-06-180	2	DIBBS
3040-01-436-9056	2013-06-167	1	DIBBS
3040-01-436-9056	2013-06-167	10	DIBBS
3040-01-436-9056	2007-02-41	7	DIBBS

Cross Reference | NSN 3040-01-436-9056

Part Number	Cage Code	Manufacturer

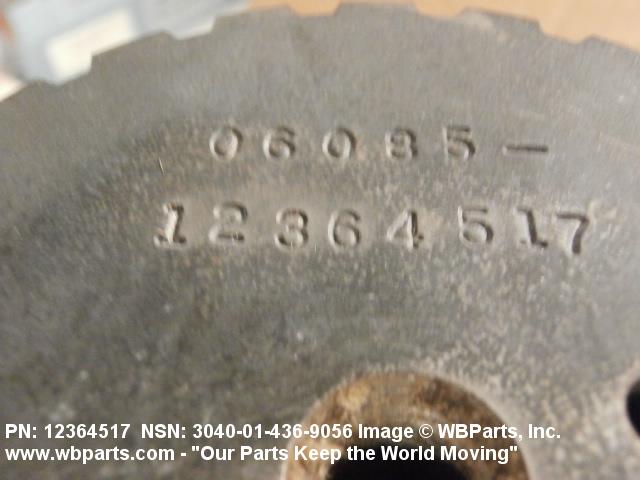

12364517	06085	BAE SYSTEMS LAND & ARMAMENTS L.P.
12364517	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3040-01-436-9056

Compare

Related Products | NSN 3040-01-436-9056

3040-01-436-9236, 3040-01-436-9239, 3040-01-436-9250, 3040-01-436-9304, 3040-01-436-9310

Technical Data | NSN 3040-01-436-9056

Characteristic	Specifications
MATERIAL	STEEL COMP 4340
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM A322 ASSN STD SINGLE MATERIAL RESPONSE
SURFACE FINISH	32.0 MICROINCHES
FIRST END STYLE	9 INTERNAL THREADED

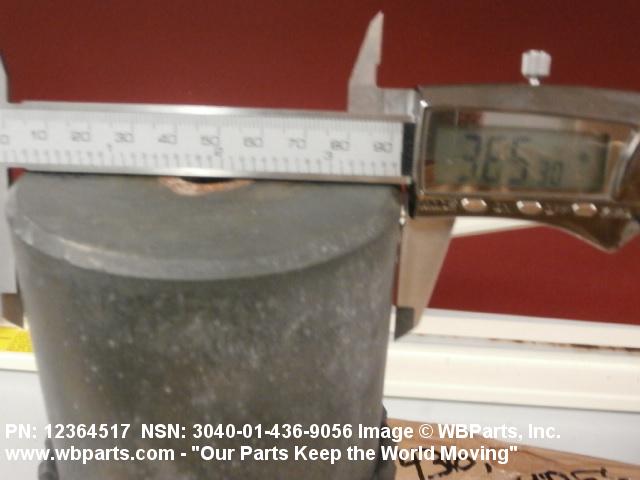

FIRST END DIAMETER	3.6840 INCHES NOMINAL
FIRST END INTERNAL THREAD LENGTH	1.2500 INCHES NOMINAL
END SIMILARITY	NOT IDENTICAL
SECOND END STYLE	18 SPLINED
SECOND END DIAMETER	3.4641 INCHES NOMINAL
SECOND END SPLINE LENGTH	4.3100 INCHES NOMINAL
SECOND END SPLINE MINOR DIAMETER	3.7590 INCHES NOMINAL

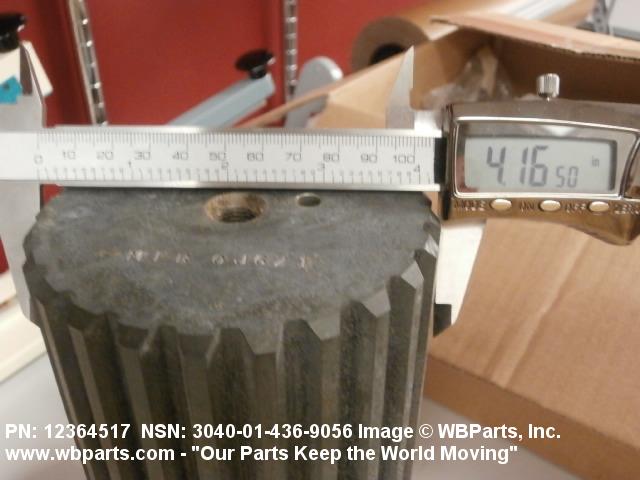

SECOND END SPLINE MAJOR DIAMETER	4.1240 INCHES MINIMUM AND 4.1670 INCHES MAXIMUM
SECOND END PITCH DIAMETER	4.0000 INCHES NOMINAL
SECOND END PRESSURE ANGLE	30.0 DEGREES NOMINAL
SECOND END SPLINE QUANTITY	24

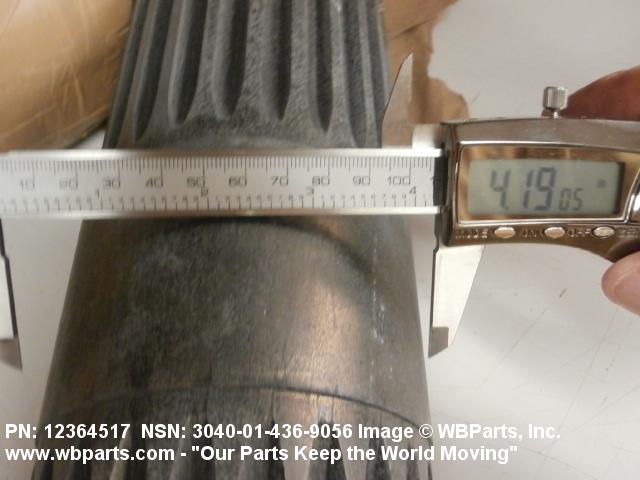

LARGEST STEP DIAMETER	4.2460 INCHES NOMINAL

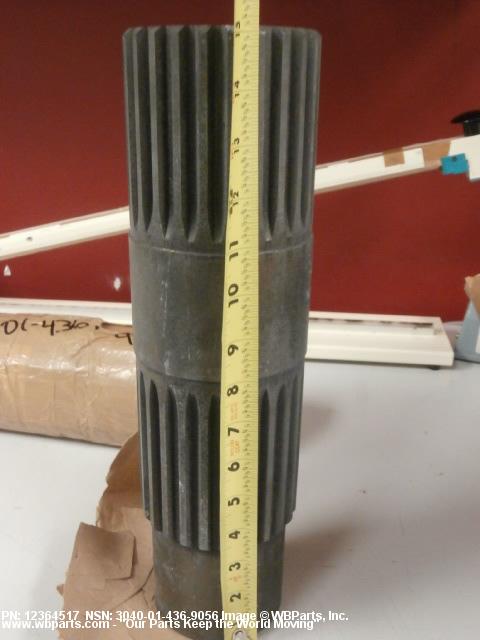

OVERALL LENGTH	15.140 INCHES NOMINAL
STEP QUANTITY	3

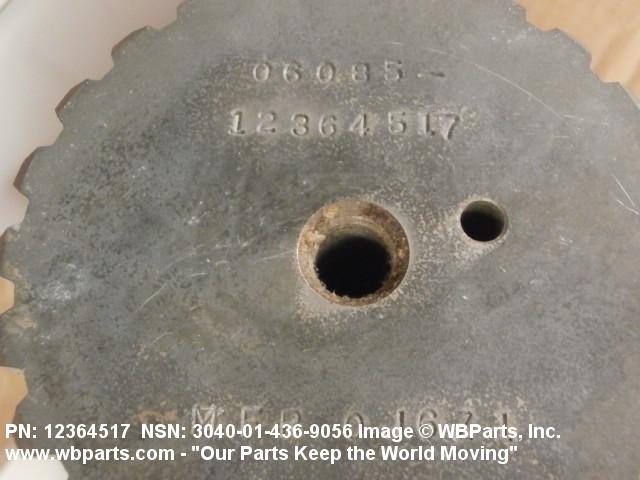

SPECIAL FEATURES	SECOND END THD HOLE 0.500-20UNF-2B, 1.25 DEEP AND 60 DEG CSK TO .620; THRU HOLE EACH END 0.250 IN. DIA X 0.625 DEEP W/0.750 IN. C TO C BETWEEN HOLES
III END ITEM IDENTIFICATION	2350-01-390-4683; W/S RECOVERY VEHICLE FU

Restrictions/Controls & Freight Information | NSN 3040-01-436-9056

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	126900	POWER TRANS SHAFTING/SHAFTS
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	593	unknown
Originating Activity Code	AH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3040-01-436-9056

Army
Marines

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
