Product Details | STRAIGHT SHAFT

3040-01-432-4693 A straight shaft having two or more of the following conditions: a specified surface finish designation in the range of 1 to 125 microinches (o.o25 to 3.2 micrometers), arithmetical average (aa), machined peripheral flat(s), circular groove (s), keyway(s), splines, threads, or holes. It is not designed for use in aligning by fitting into corresponding holes of another item. It may be drilled for lubricating holes. For items having an integral gear(s) or worm(s), see GEARSHAFT (as modified). For items designed to support rotating members see AXLE(1), STRAIGHT. For items not having the above conditions see PIN, STRAIGHT, HEADLESS. For items having machined ends which constitute steps see SHAFT(1), SHOULDERED; AXLE(1), SHOULDERED; and BOLT, FLUID PASSAGE.20310050000101500003040000000

Part Alternates: 3261912, 3261912 ITEM 122, 3261912ITEM122, 701363, 705529A, 705529-A, 3040-01-432-4693, 01-432-4693, 3040014324693, 014324693

Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment

Supply Group (FSG) NSN Assign. NIIN
30 06 JUN 1996 01-432-4693

Drawings & Photos | NSN 3040-01-432-4693


Demand History | NSN 3040-01-432-4693

Part Number Request Date QTY Origin
705529A00 2023-12-341 6 DIBBS
701363 2020-01-25 1
3040-01-432-4693 2018-12-361 7 DIBBS
3040-01-432-4693 2018-05-144 8 DIBBS
3040-01-432-4693 2014-09-253 8 DIBBS
3040-01-432-4693 2012-07-183 1 DIBBS
705529A 2010-10-302 1 United States

Cross Reference | NSN 3040-01-432-4693

Part Number Cage Code Manufacturer
3261912 80064 NAVAL SHIP SYSTEMS COMMAND
3261912 ITEM 122 80064 NAVAL SHIP SYSTEMS COMMAND
701363 30086 SPD ELECTRICAL SYSTEMS, INC
705529-A 30086 SPD ELECTRICAL SYSTEMS, INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3040-01-432-4693

Technical Data | NSN 3040-01-432-4693

Characteristic Specifications
MATERIAL STEEL

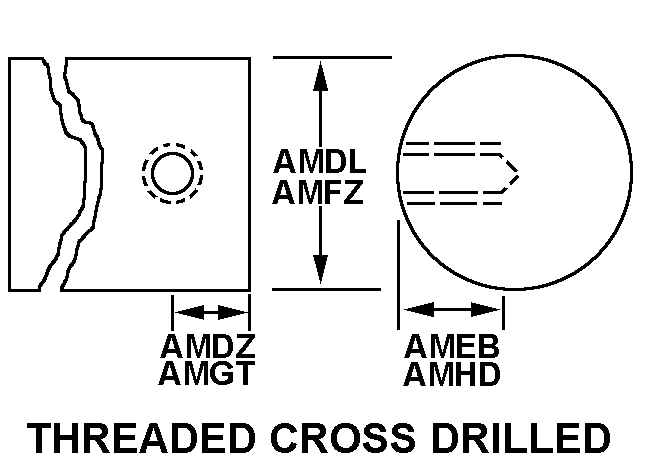

FIRST END STYLE 24 THREADED CROSS DRILLED
END SIMILARITY NOT IDENTICAL
OVERALL LENGTH 25.880 INCHES NOMINAL
SPECIAL FEATURES THD HOLE SIZE 10-32
III END ITEM IDENTIFICATION W/S NIMITZ CLASS CVN

Restrictions/Controls & Freight Information | NSN 3040-01-432-4693

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 126900 POWER TRANS SHAFTING/SHAFTS
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 593 unknown
Originating Activity Code AX Defense Supply Center Columbus
Columbus, OH 43216-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
