NSN 3040-01-417-6696 5912051, 9035912051PC1AND2, 903-5912051PC1AND2
Product Details | HUB CLAMP
3040-01-417-6696 An item designed to be mounted around the extended hub portion of a gear, wheel, or the like, to retain it securely to a shaft by compressing the slotted hub body. The item may also be used to clamp around a shaft, or the like, to prevent end motion or to retain it in position. Its compression quality is derived from a screw(s) or bolt(s) which may be a part of the item of supply. For items designed to secure directly to a shaft by use of setscrews, pins, or the like, see COLLAR, SHAFT. Excludes CLAMP, LOOP.
Part Alternates: 5912051, 9035912051PC1AND2, 903-5912051PC1AND2, 3040-01-417-6696, 01-417-6696, 3040014176696, 014176696
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 11 AUG 1995 | 01-417-6696 | 27781 ( CLAMP, HUB ) |
Drawings & Photos | NSN 3040-01-417-6696
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-417-6696
Technical Data | NSN 3040-01-417-6696
| Characteristic | Specifications |
|---|---|
| MATERIAL | TOOL STEEL, QQ-T-570, CLASS O1 |

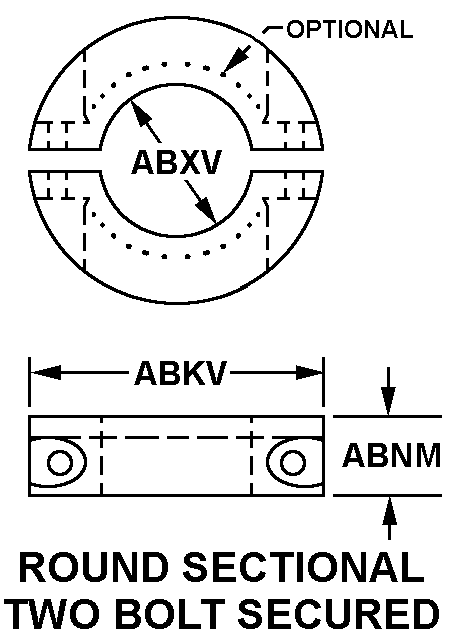

| STYLE DESIGNATOR | B15 ROUND SECTIONAL, TWO BOLT SECURED |
| OUTSIDE DIAMETER | 5.8120 INCHES NOMINAL |
| THICKNESS | 2.125 INCHES NOMINAL |
| BORE DIAMETER | 2.5100 INCHES NOMINAL |
| SURFACE FINISH AND LOCATION | 32 MICROINCHES INSIDE PERIPHERY 32 MICROINCHES OUTSIDE PERIPHERY |
| CLAMP SECURING HOLE STYLE | 2 THREADED |
| PLAIN HOLE DIAMETER | 0.4365 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM |
| SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| SPECIAL FEATURES | BORE BORE TAPERED 8 DEG, THRD COUNTERBORE 9/16 DEEP,THD 3 3/8-12UN-2B X 1/2 DEEP= |
| III END ITEM IDENTIFICATION | NUCLEAR POWER PLANTS |
