NSN 3040-01-377-7041 801640676832, 801-6406768-32, 01-377-7041
Product Details | SHOULDERED SHAFT
3040-01-377-7041 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: 801640676832, 801-6406768-32, 3040-01-377-7041, 01-377-7041, 3040013777041, 013777041, 211060927
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 23 JUL 1993 | 01-377-7041 | 22914 ( SHAFT, SHOULDERED ) |

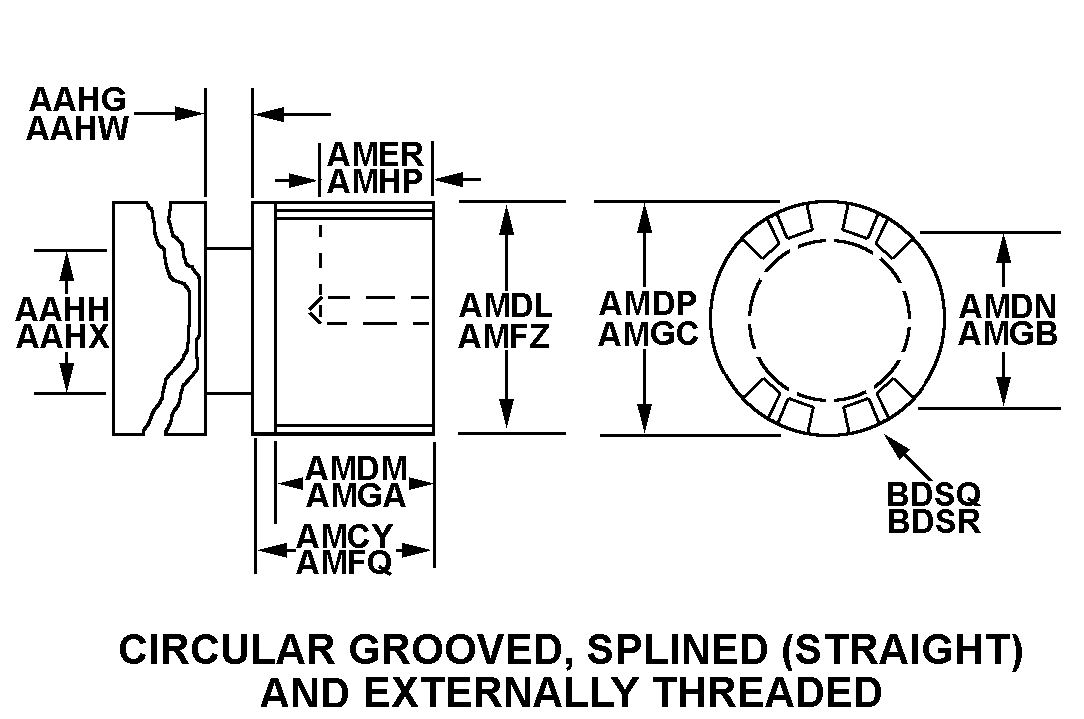

Drawings & Photos | NSN 3040-01-377-7041
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-377-7041
Technical Data | NSN 3040-01-377-7041
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY K-500 |
| FIRST END STYLE | 37 CIRCULAR GROOVED AND SPLINED |
| FIRST END GROOVE WIDTH | 0.3700 INCHES NOMINAL |
| FIRST END GROOVE DIAMETER | 1.2800 INCHES NOMINAL |
| FIRST END DISTANCE FROM END TO GROOVE | 1.9150 INCHES NOMINAL |
| FIRST END DIAMETER | 1.4980 INCHES NOMINAL |
| FIRST END SPLINE LENGTH | 2.5650 INCHES NOMINAL |
| FIRST END SPLINE MINOR DIAMETER | 1.2840 INCHES NOMINAL |
| FIRST END SPLINE QUANTITY | 8 |
| END SIMILARITY | NOT IDENTICAL |
| SECOND END STYLE | 84 CIRCULAR GROOVED, SPLINED AND INTERNALLY THREADED |
| SECOND END GROOVE WIDTH | 0.2650 INCHES NOMINAL |
| SECOND END GROOVE DIAMETER | 1.0310 INCHES NOMINAL |
| SECOND END DISTANCE FROM END TO GROOVE | 1.2320 INCHES NOMINAL |
| SECOND END DIAMETER | 1.2400 INCHES NOMINAL |
| SECOND END SPLINE MINOR DIAMETER | 1.2840 INCHES NOMINAL |
| SECOND END SPLINE MAJOR DIAMETER | 1.4980 INCHES NOMINAL |
| SECOND END INTERNAL THREAD LENGTH | 4.1900 INCHES NOMINAL |
| SECOND END SPLINE QUANTITY | 8 |
| LARGEST STEP DIAMETER | 1.4980 INCHES NOMINAL |
| OVERALL LENGTH | 5.7810 INCHES NOMINAL |
| STEP QUANTITY | 7 |
Restrictions/Controls & Freight Information | NSN 3040-01-377-7041
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126900 | POWER TRANS SHAFTING/SHAFTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-01-377-7041
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
