NSN 3040-01-365-2925 MBEU145886, 01-365-2925, 013652925
Product Details | STRAIGHT SHAFT
3040-01-365-2925 A straight shaft having two or more of the following conditions: a specified surface finish designation in the range of 1 to 125 microinches (o.o25 to 3.2 micrometers), arithmetical average (aa), machined peripheral flat(s), circular groove (s), keyway(s), splines, threads, or holes. It is not designed for use in aligning by fitting into corresponding holes of another item. It may be drilled for lubricating holes. For items having an integral gear(s) or worm(s), see GEARSHAFT (as modified). For items designed to support rotating members see AXLE(1), STRAIGHT. For items not having the above conditions see PIN, STRAIGHT, HEADLESS. For items having machined ends which constitute steps see SHAFT(1), SHOULDERED; AXLE(1), SHOULDERED; and BOLT, FLUID PASSAGE.20310050000101500003040000000
Part Alternates: MBEU145886, 3040-01-365-2925, 01-365-2925, 3040013652925, 013652925
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 05 OCT 1992 | 01-365-2925 | 22109 ( SHAFT, STRAIGHT ) |
Drawings & Photos | NSN 3040-01-365-2925
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-365-2925
Technical Data | NSN 3040-01-365-2925
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5659 H1100 ASSN STD SINGLE MATERIAL RESPONSE |
| FIRST END STYLE | 14 FLAT GROOVED |
| FIRST END DISTANCE FROM END TO FLAT | 0.095 INCHES NOMINAL |
| FIRST END DIAMETER | 0.4945 INCHES NOMINAL |
| FIRST END GROOVED FLAT LENGTH | 0.1700 INCHES NOMINAL |
| FIRST END GROOVED FLAT DEPTH | 0.090 INCHES NOMINAL |
| END SIMILARITY | NOT IDENTICAL |

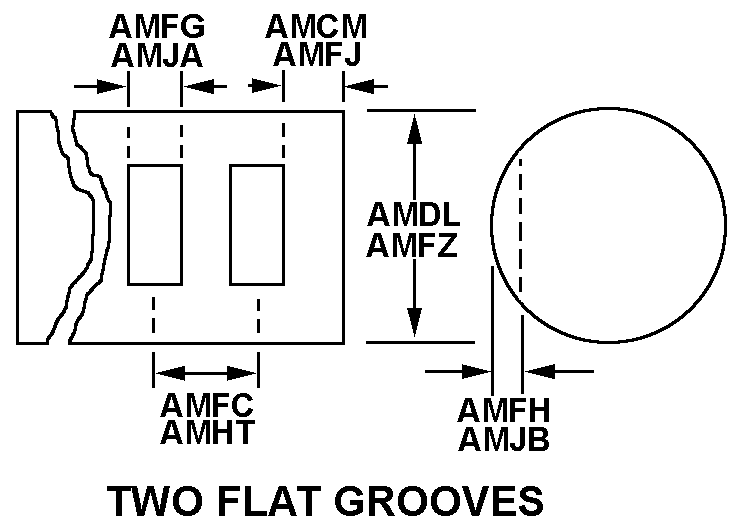

| SECOND END STYLE | 59 TWO FLAT GROOVES |
| SECOND END DISTANCE FROM END TO FLAT | 0.0950 INCHES NOMINAL |
| SECOND END DIAMETER | 0.4945 INCHES NOMINAL |
| SECOND END DISTANCE BETWEEN FIRST AND SECOND GROOVE CENTERS | 8.980 INCHES NOMINAL |
| SECOND END GROOVED FLAT LENGTH | 0.1700 INCHES NOMINAL |
| SECOND END GROOVED FLAT DEPTH | 0.0900 INCHES NOMINAL |
| OVERALL LENGTH | 18.890 INCHES NOMINAL |
| SPECIAL FEATURES | SHAFT IS SQUARE 0.4350 IN. ACROSS FLATS,DIA 0.4945 IN.;FLIGHT SAFETY CRITICAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
Restrictions/Controls & Freight Information | NSN 3040-01-365-2925
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126900 | POWER TRANS SHAFTING/SHAFTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-01-365-2925
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
