3040-01-359-1198 A catching device of various shapes and cross sections, which permits motion in only one direction. Designed to engage the teeth or notches of a sector, quadrant, ratchet wheel, or the like. Item is so pivoted that the angle of approach to the interdental engagement causes it to rest more firmly as the reverse load is increased. Item may be spring actuated to cause engagement. Excludes CAM (as modified).
Part Alternates: 7240125, 7240125P002, 3040-01-359-1198, 01-359-1198, 3040013591198, 013591198
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
30 | 29 MAY 1992 | 01-359-1198 | 22101 ( PAWL ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 3040-01-359-1198
Related Products | NSN 3040-01-359-1198
Technical Data | NSN 3040-01-359-1198
Characteristic | Specifications |
---|---|

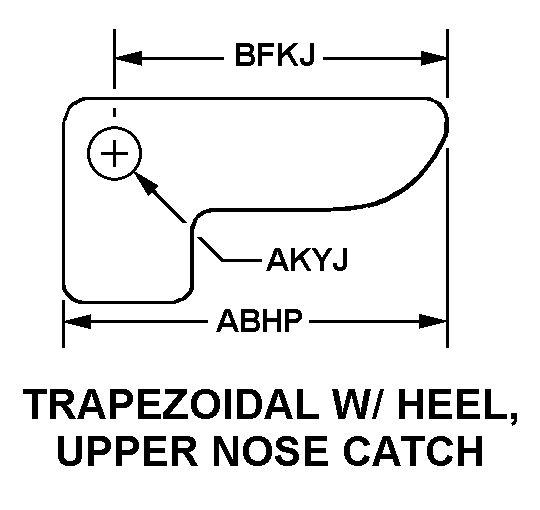

STYLE DESIGNATOR | A7 TRAPEZOIDAL W/HEEL, UPPER NOSE CATCH |
OVERALL LENGTH | 3.200 INCHES NOMINAL |
PIVOT PIN HOLE DIAMETER | 0.089 INCHES NOMINAL |
LENGTH FROM PIVOT PINHOLE CENTERLINE TO POINT OF ENGAGEMENT | 2.580 INCHES NOMINAL |
SPECIAL FEATURES | DEPTH FROM PIVOT PINHOLE CENTERLINE TO POINT OF ENGAGEMENT:0.440 IN.NOM;MATERIAL DOCUMENT AND CLASSIFICATION:STEEL COMP 303 |
