Product Details | STRAIGHT SHAFT
3040-01-352-0023 A straight shaft having two or more of the following conditions: a specified surface finish designation in the range of 1 to 125 microinches (o.o25 to 3.2 micrometers), arithmetical average (aa), machined peripheral flat(s), circular groove (s), keyway(s), splines, threads, or holes. It is not designed for use in aligning by fitting into corresponding holes of another item. It may be drilled for lubricating holes. For items having an integral gear(s) or worm(s), see GEARSHAFT (as modified). For items designed to support rotating members see AXLE(1), STRAIGHT. For items not having the above conditions see PIN, STRAIGHT, HEADLESS. For items having machined ends which constitute steps see SHAFT(1), SHOULDERED; AXLE(1), SHOULDERED; and BOLT, FLUID PASSAGE.20310050000101500003040000000
Part Alternates: 12380454, 3040-01-352-0023, 01-352-0023, 3040013520023, 013520023
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 17 JAN 1992 | 01-352-0023 | 22109 ( SHAFT, STRAIGHT ) |
Drawings & Photos | NSN 3040-01-352-0023
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-352-0023
Technical Data | NSN 3040-01-352-0023
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE FINISH | 125.0 MICROINCHES |

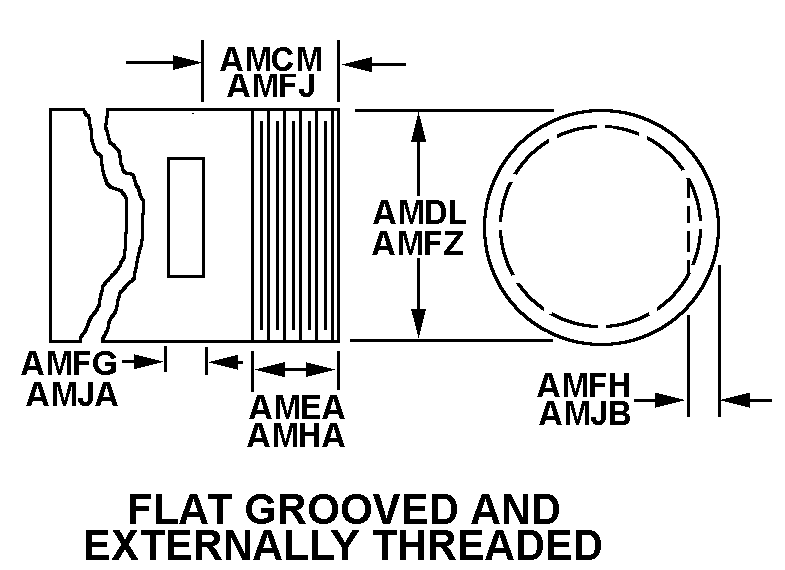

| FIRST END STYLE | 49 FLAT GROOVED AND EXTERNALLY THREADED |
| FIRST END DISTANCE FROM END TO FLAT | 0.5000 INCHES NOMINAL |
| FIRST END DIAMETER | 0.3750 INCHES NOMINAL |
| FIRST END EXTERNAL THREAD LENGTH | 0.5000 INCHES NOMINAL |
| FIRST END GROOVED FLAT LENGTH | 0.0780 INCHES NOMINAL |
| FIRST END GROOVED FLAT DEPTH | 0.0650 INCHES NOMINAL |
| END SIMILARITY | NOT IDENTICAL |
| SECOND END STYLE | 68 FLAT GROOVED AND FLATTED |
| SECOND END DISTANCE FROM END TO FLAT | 0.6700 INCHES NOMINAL |
| SECOND END FLAT DEPTH | 0.2500 INCHES NOMINAL |
| SECOND END FLAT LENGTH | 0.5000 INCHES NOMINAL |
| SECOND END DIAMETER | 0.3750 INCHES NOMINAL |
| SECOND END GROOVED FLAT LENGTH | 0.2100 INCHES NOMINAL |
| SECOND END GROOVED FLAT DEPTH | 0.1900 INCHES NOMINAL |
| OVERALL LENGTH | 2.500 INCHES NOMINAL |
| SPECIAL FEATURES | 1ST END HAS 2 DRILLED HOLES,1 CROSS DRILLED,0.078 IN.THRU,0.520 IN.FROM END,OTHER HOLE IS PARALLEL TO SHAFT AXIS,0.078 IN.DIA,AND RUNS INTO CROSS DRILLED HOLE |
