NSN 3040-01-351-5229 CON677450, CON677-450, CON6774503
Product Details | EXTENSION SHAFT
3040-01-351-5229 An item consisting of a length of rigid shafting designed to be coupled to the shaft of items such as variable capacitors, switches, hand cranks and the like. It is specifically designed to increase the length of the original shaft and may also effect a change in the shaft diameter. Includes coupling(s) or has processed end(s) to facilitate the attachment of a coupling device. May have provision for electrically insulating the extension shaft from the other shaft.
Part Alternates: CON677450, CON677-450, CON6774503, CON677-450-3, 3040-01-351-5229, 01-351-5229, 3040013515229, 013515229
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 10 JAN 1992 | 01-351-5229 | 18437 ( EXTENSION SHAFT ) |
Drawings & Photos | NSN 3040-01-351-5229
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-351-5229
Technical Data | NSN 3040-01-351-5229
| Characteristic | Specifications |
|---|---|

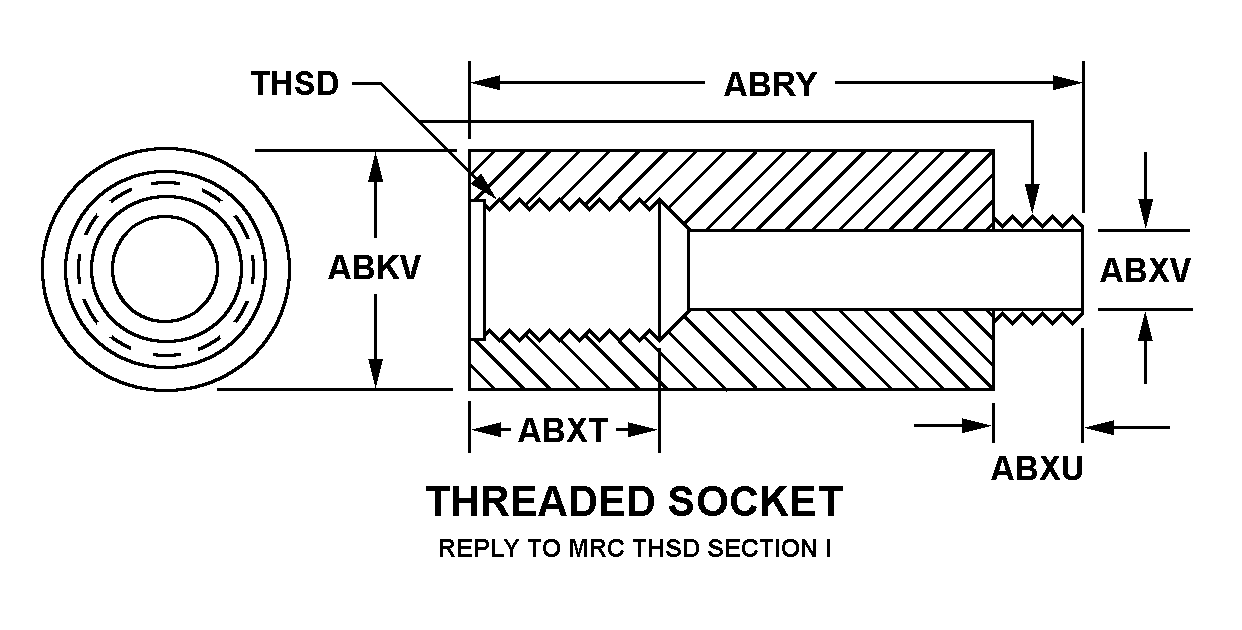

| STYLE DESIGNATOR | A203 THREADED SOCKET |
| OUTSIDE DIAMETER | 0.750 INCHES NOMINAL |
| LENGTH | 5.500 INCHES NOMINAL |
| INTERNAL THREAD LENGTH | 1.000 INCHES NOMINAL |
| EXTERNAL THREAD LENGTH | 1.000 INCHES NOMINAL |
| BORE DIAMETER | 0.375 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF STUD UNC SOCKET INTERNAL |
| NOMINAL THREAD SIZE | 0.375 INCHES STUD 0.375 INCHES SOCKET INTERNAL |
| THREAD QUANTITY PER INCH | 24 STUD 16 SOCKET INTERNAL |
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7720 MIL SPEC SINGLE MATERIAL RESPONSE |
| END TYPE | PROCESSED END |
| SHAFT END DESIGN | FEMALE AND MALE |
| SHAFT END CONFIGURATION | ROUND |
Restrictions/Controls & Freight Information | NSN 3040-01-351-5229
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126900 | POWER TRANS SHAFTING/SHAFTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-01-351-5229
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
