NSN 3040-01-351-1602 75D131021, 75D1310212003, 75D131021-2003
Product Details | STRAIGHT SHAFT
3040-01-351-1602 A straight shaft having two or more of the following conditions: a specified surface finish designation in the range of 1 to 125 microinches (o.o25 to 3.2 micrometers), arithmetical average (aa), machined peripheral flat(s), circular groove (s), keyway(s), splines, threads, or holes. It is not designed for use in aligning by fitting into corresponding holes of another item. It may be drilled for lubricating holes. For items having an integral gear(s) or worm(s), see GEARSHAFT (as modified). For items designed to support rotating members see AXLE(1), STRAIGHT. For items not having the above conditions see PIN, STRAIGHT, HEADLESS. For items having machined ends which constitute steps see SHAFT(1), SHOULDERED; AXLE(1), SHOULDERED; and BOLT, FLUID PASSAGE.20310050000101500003040000000
Part Alternates: 75D131021, 75D1310212003, 75D131021-2003, 3040-01-351-1602, 01-351-1602, 3040013511602, 013511602
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1992 | 01-351-1602 | 22109 ( SHAFT, STRAIGHT ) |
Drawings & Photos | NSN 3040-01-351-1602
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-351-1602
Technical Data | NSN 3040-01-351-1602
| Characteristic | Specifications |
|---|---|

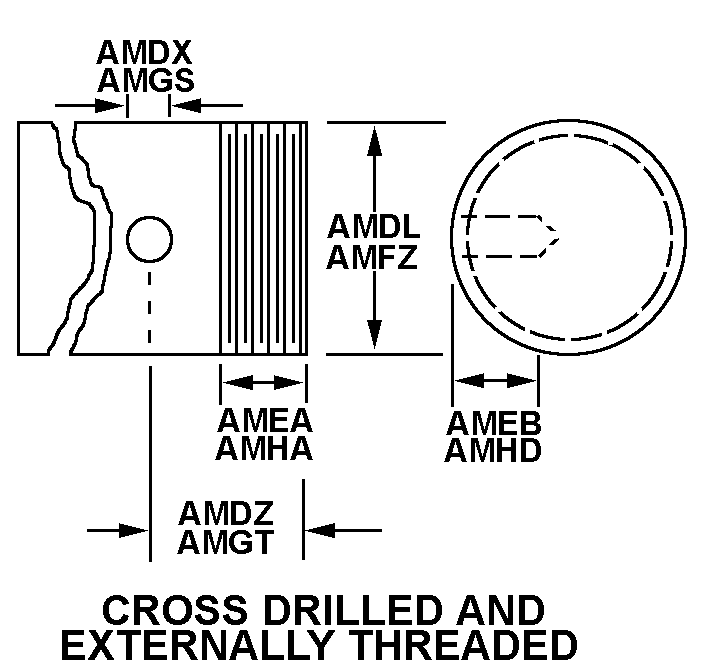

| FIRST END STYLE | 25 CROSS DRILLED AND EXTERNALLY THREADED |
