3040-01-340-6059 A catching device of various shapes and cross sections, which permits motion in only one direction. Designed to engage the teeth or notches of a sector, quadrant, ratchet wheel, or the like. Item is so pivoted that the angle of approach to the interdental engagement causes it to rest more firmly as the reverse load is increased. Item may be spring actuated to cause engagement. Excludes CAM (as modified).
Part Alternates: 6532D343, 6532D3433, 6532D343-3, 3040-01-340-6059, 01-340-6059, 3040013406059, 013406059
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 17 JUN 1991 | 01-340-6059 | 22101 ( PAWL ) |
Drawings & Photos | NSN 3040-01-340-6059
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3040-01-340-6059
Related Products | NSN 3040-01-340-6059
Technical Data | NSN 3040-01-340-6059
| Characteristic | Specifications |
|---|---|

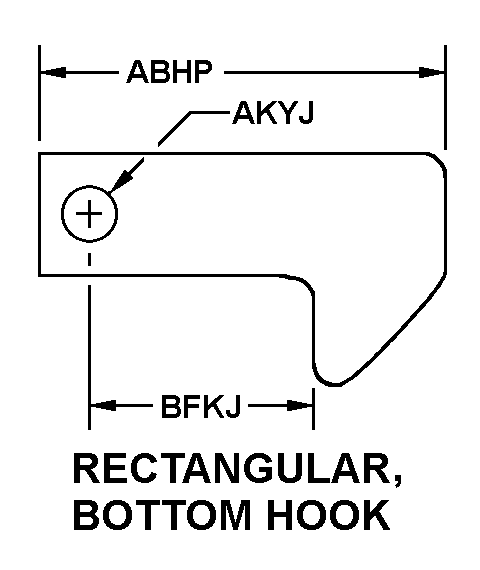

| STYLE DESIGNATOR | A3 RECTANGULAR, BOTTOM HOOK |
| OVERALL LENGTH | 8.470 INCHES NOMINAL |
| PIVOT PIN HOLE DIAMETER | 1.188 INCHES NOMINAL |
| LENGTH FROM PIVOT PINHOLE CENTERLINE TO POINT OF ENGAGEMENT | 5.630 INCHES NOMINAL |
| MATERIAL THICKNESS | 1.000 INCHES NOMINAL |
| SPECIAL FEATURES | ITEMS ARE BEING CODED AS CRITICAL TO INSURE SOURCE INSPECTION WILL BE PERFORMED AT THE POINT OF MANUFACTURE, PRIOR TO MATERIAL RECEIPT BY THE US NAVY OR OTHER DOD COMPONENTS. THESE ITEMS ARE PIECE PARTS OR END ITEMS IN SUPPORT OF VITAL MILITARY HARDWARE NECESSARY TO SUSTAIN THE SUCCESSFUL MISSION OF THE SHIPS, SUBMARINES, AND SHORE STATIONS OF THE US NAVY. CRITICAL FEATURES INCLUDING, BUT NOT LIMITED TO, DIMENSIONS, TOLERANCES/CLEARANCES, ELECTRONIC CHARACTERISTICS, AND METALLURGICAL PROPERTIES WILL BESPECIFIED FOR GOVERNMENT Q AR (QUALITY ASSURANCE REPRESENTATIVES) TO INSURE THE HIGHEST POSSIBLE DEGREE OF QUALITY AND RELIABILITY OF THESE PARTS BEING DELIVERED UNDER NAVICP CONTRACTS;MATERIAL DOCUMENT AND CLASSIFICATION:STEEL COMP 630;DEPTH FROM PIVOT PIN HOLE CENTERLINE TO POINT OF ENGAGEMENT:0.625 IN.NOM;LENGTH FROM PIVOT PINHOLE CENTERLINE TO POINT OF ENGAGEMENT:0.630 IN.NOM |
