Product Details | STRAIGHT SHAFT
3040-01-325-2356 A straight shaft having two or more of the following conditions: a specified surface finish designation in the range of 1 to 125 microinches (o.o25 to 3.2 micrometers), arithmetical average (aa), machined peripheral flat(s), circular groove (s), keyway(s), splines, threads, or holes. It is not designed for use in aligning by fitting into corresponding holes of another item. It may be drilled for lubricating holes. For items having an integral gear(s) or worm(s), see GEARSHAFT (as modified). For items designed to support rotating members see AXLE(1), STRAIGHT. For items not having the above conditions see PIN, STRAIGHT, HEADLESS. For items having machined ends which constitute steps see SHAFT(1), SHOULDERED; AXLE(1), SHOULDERED; and BOLT, FLUID PASSAGE.20310050000101500003040000000
Part Alternates: SW28444, 3040-01-325-2356, 01-325-2356, 3040013252356, 013252356
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 31 AUG 1990 | 01-325-2356 | 22109 ( SHAFT, STRAIGHT ) |
Drawings & Photos | NSN 3040-01-325-2356
Demand History | NSN 3040-01-325-2356
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-01-325-2356 | 2014-04-105 | 1 | DIBBS-RFPs |
| 3040-01-325-2356 | 2013-06-169 | 14 | DIBBS |
| 3040-01-325-2356 | 2013-01-24 | 12 | DIBBS |
| 3040-01-325-2356 | 2012-05-125 | 8 | DIBBS |
| 3040-01-325-2356 | 2012-03-79 | 8 | DIBBS |
| 3040-01-325-2356 | 2011-09-259 | 13 | DIBBS |
| 3040-01-325-2356 | 2011-06-165 | 5 | DIBBS |
| 3040-01-325-2356 | 2011-06-155 | 5 | DIBBS |
| 3040-01-325-2356 | 2011-05-130 | 17 | DIBBS |
| 3040-01-325-2356 | 2010-03-63 | 7 | DIBBS |
| 3040-01-325-2356 | 2009-09-251 | 2 | DIBBS |
| 3040-01-325-2356 | 2009-03-86 | 8 | DIBBS |
| 3040-01-325-2356 | 2008-12-339 | 23 | DIBBS |
| 3040-01-325-2356 | 2008-02-36 | 13 | DIBBS |
| 3040-01-325-2356 | 2007-10-278 | 16 | DIBBS |
| 3040-01-325-2356 | 2006-01-19 | 12 | DIBBS |
Cross Reference | NSN 3040-01-325-2356
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SW28444 | 98255 | DRS SUSTAINMENT SYSTEMS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-325-2356
Technical Data | NSN 3040-01-325-2356
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1026 |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A519,R/M 1470L ASSN STD SINGLE MATERIAL RESPONSE |
| FIRST END STYLE | 1 PLAIN |
| FIRST END DIAMETER | 4.0000 INCHES NOMINAL |
| END SIMILARITY | NOT IDENTICAL |

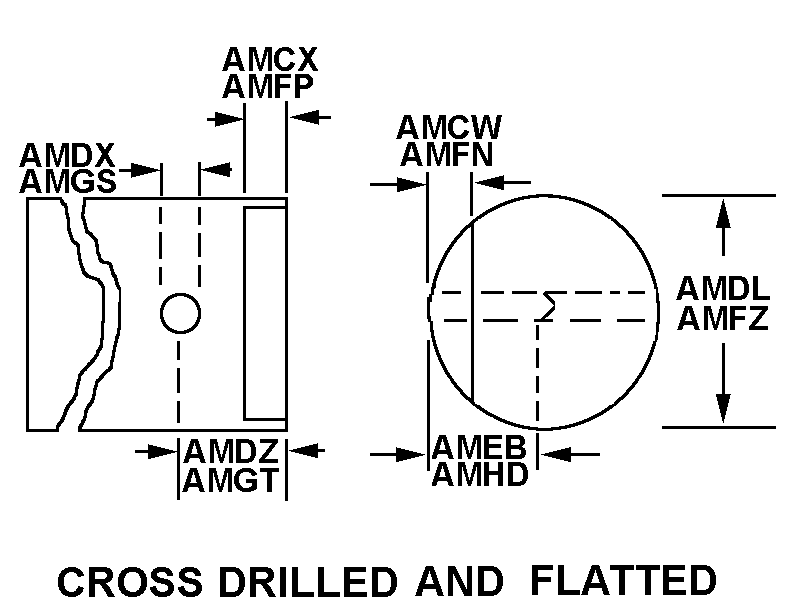

| SECOND END STYLE | 72 CROSS DRILLED AND FLATTED |
| SECOND END FLAT DEPTH | 0.5300 INCHES NOMINAL |
| SECOND END FLAT LENGTH | 0.4380 INCHES NOMINAL |
| SECOND END DIAMETER | 4.0000 INCHES NOMINAL |
| SECOND END HOLE DIAMETER | 0.5600 INCHES NOMINAL |
| SECOND END DISTANCE FROM HOLE CENTER TO END | 17.5000 INCHES NOMINAL |
| SECOND END HOLE DEPTH | 1.0000 INCHES NOMINAL |
| OVERALL LENGTH | 37.500 INCHES NOMINAL |
| SPECIAL FEATURES | TUBE 2.000IN.ID; CADMIUM PLATED /QQ-P-416,TY 2,CL 1,OLIVE DRAB; ENDS CHAMFERED 2X0.06X45 DEG,FLAT LOCATED 0.560 FROM END,HOLE DRILLED BOTH SIDES |
| III END ITEM IDENTIFICATION | 2330-01-303-8832 |
Restrictions/Controls & Freight Information | NSN 3040-01-325-2356
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126900 | POWER TRANS SHAFTING/SHAFTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
