NSN 3040-01-311-8469 10107014 , 3929AS820, 74A7335591001
Product Details | BELL CRANK
3040-01-311-8469 An item in the form of two arms at an angle, having its fulcrum at the apex of the angle, and used to provide a means of changing the direction or varying the intensity of a pushing or pulling force. See also ARM (as modified); and LEVER (as modified).20411900057Specialized Test and Handling Equipment, Nuclear Ordnance11950030Miscellaneous Nuclear Ordnance16800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 10107014 , 3929AS820, 74A7335591001, 74A733559-1001, 3040-01-311-8469, 01-311-8469, 3040013118469, 013118469
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 06 DEC 1989 | 01-311-8469 | 22321 ( BELL CRANK ) |
Drawings & Photos | NSN 3040-01-311-8469
Demand History | NSN 3040-01-311-8469
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-01-311-8469 | 2014-07-196 | 25 | DIBBS |
| 3040-01-311-8469 | 2014-04-103 | 25 | DIBBS |
| 3040-01-311-8469 | 2013-04-91 | 11 | DIBBS |
| 3040-01-311-8469 | 2013-03-78 | 6 | DIBBS |
| 3040-01-311-8469 | 2012-11-313 | 8 | DIBBS |
| 3040-01-311-8469 | 2012-10-278 | 12 | DIBBS |
| 3040-01-311-8469 | 2012-07-187 | 9 | DIBBS |
| 3040-01-311-8469 | 2012-04-114 | 13 | DIBBS |
| 3040-01-311-8469 | 2012-02-47 | 8 | DIBBS |
| 3040-01-311-8469 | 2012-02-40 | 8 | DIBBS |
Cross Reference | NSN 3040-01-311-8469
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-311-8469
Technical Data | NSN 3040-01-311-8469
| Characteristic | Specifications |
|---|---|

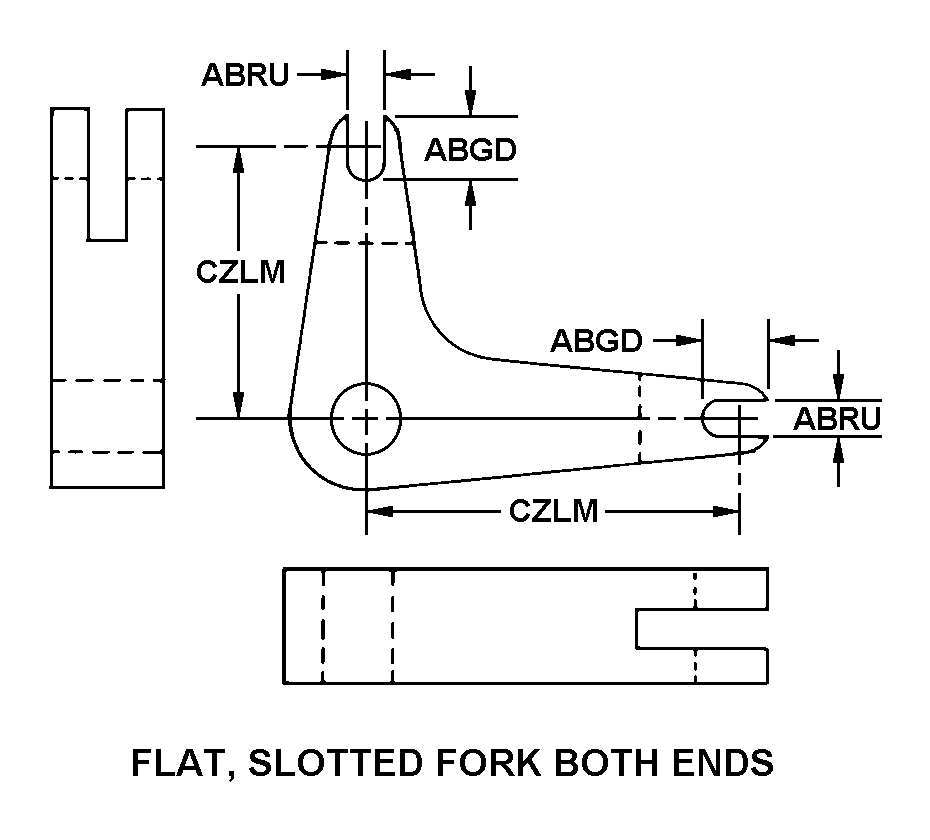

| STYLE DESIGNATOR | A10 FLAT, SLOTTED FORK BOTH ENDS |
Restrictions/Controls & Freight Information | NSN 3040-01-311-8469
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 130400 | STARTING/CRANKING SYSTMS I/C ENG |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-01-311-8469
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
