NSN 3040-01-287-7796 1366AS642, 01-287-7796, 012877796
Product Details | EXTENSION SHAFT
3040-01-287-7796 An item consisting of a length of rigid shafting designed to be coupled to the shaft of items such as variable capacitors, switches, hand cranks and the like. It is specifically designed to increase the length of the original shaft and may also effect a change in the shaft diameter. Includes coupling(s) or has processed end(s) to facilitate the attachment of a coupling device. May have provision for electrically insulating the extension shaft from the other shaft.
Part Alternates: 1366AS642, 3040-01-287-7796, 01-287-7796, 3040012877796, 012877796
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 27 OCT 1988 | 01-287-7796 | 18437 ( EXTENSION SHAFT ) |
Drawings & Photos | NSN 3040-01-287-7796
Demand History | NSN 3040-01-287-7796
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-01-287-7796 | 2024-10-305 | 24 | DIBBS |
| 3040-01-287-7796 | 2024-10-298 | 69 | DIBBS |
| 3040-01-287-7796 | 2024-10-283 | 69 | US |
| 3040-01-287-7796 | 2024-10-283 | 69 | DIBBS |
| 3040-01-287-7796 | 2023-09-270 | 80 | DIBBS |
| 3040-01-287-7796 | 2023-09-255 | 80 | DIBBS |
| 3040-01-287-7796 | 2023-08-240 | 80 | DIBBS |
| 3040-01-287-7796 | 2022-09-265 | 101 | DIBBS |
| 3040-01-287-7796 | 2022-09-249 | 63 | DIBBS |
| 3040-01-287-7796 | 2022-08-234 | 63 | DIBBS |
| 3040-01-287-7796 | 2022-08-219 | 63 | DIBBS |
| 3040-01-287-7796 | 2022-06-174 | 71 | DIBBS |
| 3040-01-287-7796 | 2022-03-74 | 27 | DIBBS |
| 3040-01-287-7796 | 2021-11-312 | 47 | DIBBS |
| 3040-01-287-7796 | 2021-09-255 | 47 | DIBBS |
| 3040-01-287-7796 | 2020-10-282 | 93 | DIBBS |
| 3040-01-287-7796 | 2020-07-213 | 31 | DIBBS |
| 3040-01-287-7796 | 2020-04-112 | 31 | US |
| 3040-01-287-7796 | 2020-04-110 | 31 | DIBBS |
| 3040-01-287-7796 | 2020-02-58 | 49 | DIBBS |
| 3040-01-287-7796 | 2018-10-277 | 63 | DIBBS |
| 3040-01-287-7796 | 2018-02-42 | 37 | DIBBS |
| 3040-01-287-7796 | 2018-01-09 | 13 | DIBBS |
| 3040-01-287-7796 | 2017-11-309 | 17 | DIBBS |
| 3040-01-287-7796 | 2015-09-251 | 60 | DIBBS |
| 3040-01-287-7796 | 2015-04-110 | 176 | DIBBS |
| 3040-01-287-7796 | 2015-04-105 | 30 | DIBBS |
| 3040-01-287-7796 | 2015-04-96 | 15 | DIBBS |
| 3040-01-287-7796 | 2014-01-12 | 40 | DIBBS |
| 3040-01-287-7796 | 2014-01-09 | 34 | DIBBS |
| 3040-01-287-7796 | 2011-10-278 | 106 | DIBBS |
| 3040-01-287-7796 | 2011-09-245 | 80 | DIBBS |
| 3040-01-287-7796 | 2011-05-131 | 100 | DIBBS |
| 3040-01-287-7796 | 2011-04-91 | 113 | DIBBS |
| 3040-01-287-7796 | 2010-05-126 | 2 | US |
| 3040-01-287-7796 | 2010-04-99 | 60 | DIBBS |
| 3040-01-287-7796 | 2009-09-244 | 76 | DIBBS |
| 3040-01-287-7796 | 2009-03-76 | 54 | DIBBS |
| 3040-01-287-7796 | 2008-10-282 | 45 | DIBBS |
| 3040-01-287-7796 | 2008-09-261 | 46 | DIBBS |
| 3040-01-287-7796 | 2008-07-213 | 44 | DIBBS |
| 3040-01-287-7796 | 2008-05-144 | 44 | DIBBS |
| 3040-01-287-7796 | 2007-11-318 | 40 | DIBBS |
| 3040-01-287-7796 | 2007-05-128 | 89 | DIBBS |
| 3040-01-287-7796 | 2007-05-127 | 89 | DIBBS |
| 3040-01-287-7796 | 2007-04-117 | 89 | DIBBS |
| 3040-01-287-7796 | 2007-02-45 | 28 | DIBBS |
| 3040-01-287-7796 | 2006-06-167 | 35 | DIBBS |
| 3040-01-287-7796 | 2006-03-82 | 43 | DIBBS |
Cross Reference | NSN 3040-01-287-7796
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1366AS642 | 30003 | NAVAL AIR SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3040-01-287-7796
Related Products | NSN 3040-01-287-7796
Technical Data | NSN 3040-01-287-7796
| Characteristic | Specifications |
|---|---|

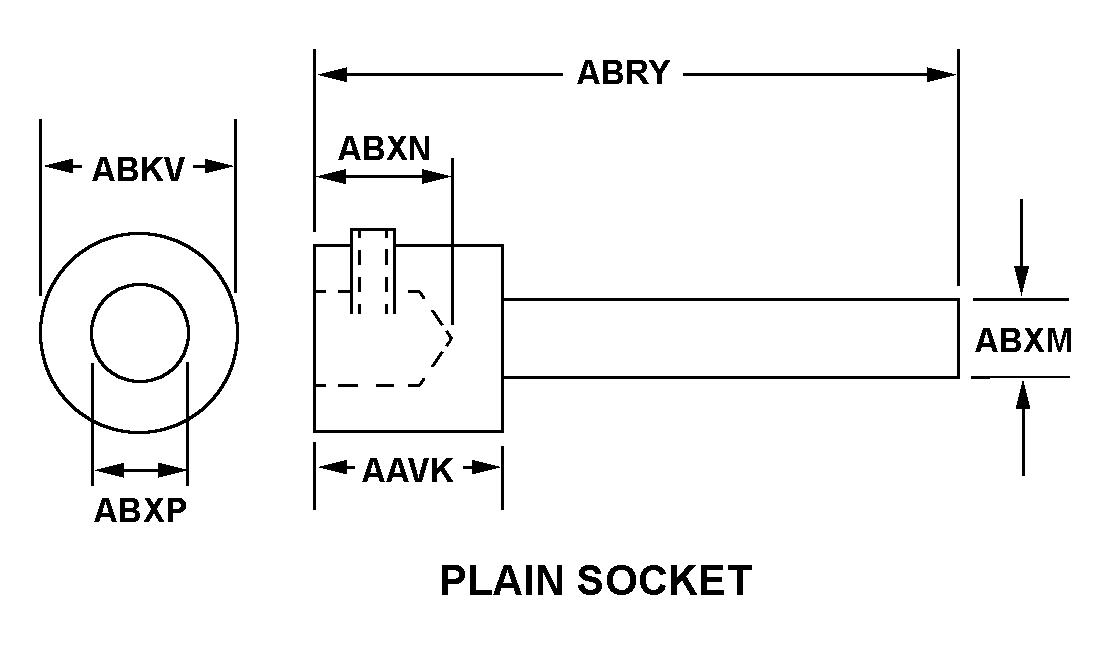

| STYLE DESIGNATOR | A201 PLAIN SOCKET |
| SHOULDER LENGTH | 4.190 INCHES NOMINAL |
| OUTSIDE DIAMETER | 3.250 INCHES NOMINAL |
| LENGTH | 6.250 INCHES NOMINAL |
| SHAFT END DIAMETER | 1.558 INCHES MINIMUM AND 1.560 INCHES MAXIMUM |
| SOCKET DEPTH | 2.310 INCHES NOMINAL |
| SOCKET DIAMETER | 1.562 INCHES MINIMUM AND 1.564 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNF SCREW HOLE |
| NOMINAL THREAD SIZE | 0.190 INCHES SCREW HOLE |
| THREAD QUANTITY PER INCH | 32 SCREW HOLE |
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI E4340 ANLD ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CADMIUM |
| END TYPE | INTEGRAL COUPLING |
| SHAFT END DESIGN | FEMALE |
| SHAFT END CONFIGURATION | ROUND W/KEYWAY |
| (NON-CORE DATA) SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 1 FED SPEC SINGLE TREATMENT RESPONSE |
Restrictions/Controls & Freight Information | NSN 3040-01-287-7796
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126900 | POWER TRANS SHAFTING/SHAFTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-01-287-7796
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
