NSN 3040-01-268-5341 4849911, 4849911 PIECE 3, 4849911PIECE3
Product Details | STRAIGHT SHAFT
3040-01-268-5341 A straight shaft having two or more of the following conditions: a specified surface finish designation in the range of 1 to 125 microinches (o.o25 to 3.2 micrometers), arithmetical average (aa), machined peripheral flat(s), circular groove (s), keyway(s), splines, threads, or holes. It is not designed for use in aligning by fitting into corresponding holes of another item. It may be drilled for lubricating holes. For items having an integral gear(s) or worm(s), see GEARSHAFT (as modified). For items designed to support rotating members see AXLE(1), STRAIGHT. For items not having the above conditions see PIN, STRAIGHT, HEADLESS. For items having machined ends which constitute steps see SHAFT(1), SHOULDERED; AXLE(1), SHOULDERED; and BOLT, FLUID PASSAGE.20310050000101500003040000000
Part Alternates: 4849911, 4849911 PIECE 3, 4849911PIECE3, 4849918, 48499182, 4849918-2, 3040-01-268-5341, 01-268-5341, 3040012685341, 012685341
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 02 DEC 1987 | 01-268-5341 | 22109 ( SHAFT, STRAIGHT ) |
Drawings & Photos | NSN 3040-01-268-5341
Demand History | NSN 3040-01-268-5341
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-01-268-5341 | 2020-10-292 | 5 | DIBBS |
| 3040-01-268-5341 | 2012-09-257 | 3 | DIBBS |
| 3040-01-268-5341 | 2012-03-87 | 3 | DIBBS |
Cross Reference | NSN 3040-01-268-5341
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4849911 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 4849911 PIECE 3 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 4849911 PIECE 3 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 4849911 PIECE 3 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 4849918 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 4849918-2 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-268-5341
Technical Data | NSN 3040-01-268-5341
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-766 CLASS 316 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE FINISH | 125.0 MICROINCHES |

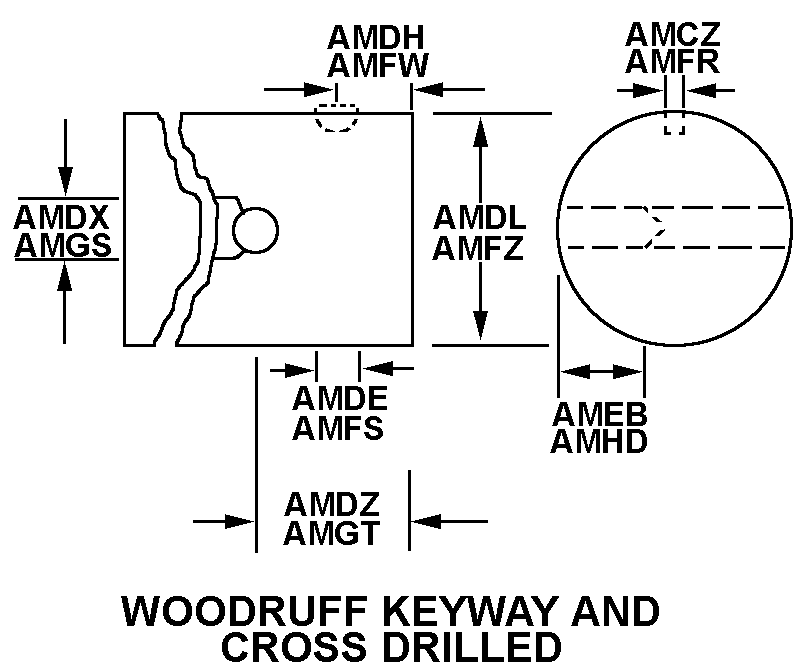

| FIRST END STYLE | 26 WOODRUFF KEYWAY AND CROSS DRILLED |
| FIRST END KEYWAY WIDTH | 0.0935 INCHES NOMINAL |
| FIRST END EXTERNAL KEYWAY LENGTH | 0.509 INCHES NOMINAL |
| FIRST END DISTANCE FROM KEYWAY CENTER TO END | 2.125 INCHES NOMINAL |
| FIRST END DIAMETER | 0.4995 INCHES NOMINAL |
| FIRST END HOLE DIAMETER | 0.2500 INCHES NOMINAL |
| FIRST END DISTANCE FROM HOLE CENTER TO END | 0.375 INCHES NOMINAL |
| END SIMILARITY | NOT IDENTICAL |

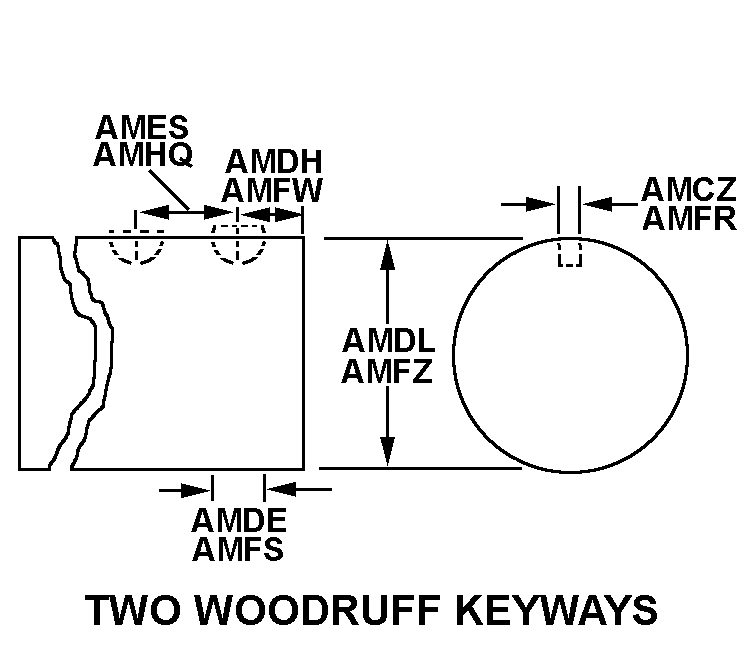

| SECOND END STYLE | 40 TWO WOODRUFF KEYWAYS |
