Product Details | SHOULDERED SHAFT
3040-01-264-3360 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: 4684681, 3040-01-264-3360, 01-264-3360, 3040012643360, 012643360
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 29 SEP 1987 | 01-264-3360 | 22914 ( SHAFT, SHOULDERED ) |
Drawings & Photos | NSN 3040-01-264-3360
Demand History | NSN 3040-01-264-3360
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-01-264-3360 | 2022-12-362 | 6 | DIBBS |
| 3040-01-264-3360 | 2022-11-317 | 6 | DIBBS |
| 3040-01-264-3360 | 2021-10-280 | 3 | DIBBS |
| 3040-01-264-3360 | 2021-07-182 | 3 | DIBBS |
| 3040-01-264-3360 | 2020-03-72 | 2 | DIBBS |
| 3040-01-264-3360 | 2016-06-154 | 4 | DIBBS |
| 3040-01-264-3360 | 2016-04-101 | 2 | DIBBS |
| 3040-01-264-3360 | 2015-08-221 | 2 | DIBBS |
| 3040-01-264-3360 | 2015-07-208 | 1 | DIBBS |
| 3040-01-264-3360 | 2015-07-196 | 1 | DIBBS |
Cross Reference | NSN 3040-01-264-3360
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4684681 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-264-3360
Technical Data | NSN 3040-01-264-3360
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-281 CL A MONEL 400 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE FINISH | 16.0 MICROINCHES |
| FIRST END STYLE | 9 INTERNAL THREADED |
| FIRST END DIAMETER | 2.3750 INCHES NOMINAL |
| FIRST END INTERNAL THREAD LENGTH | 4.812 INCHES NOMINAL |
| END SIMILARITY | NOT IDENTICAL |

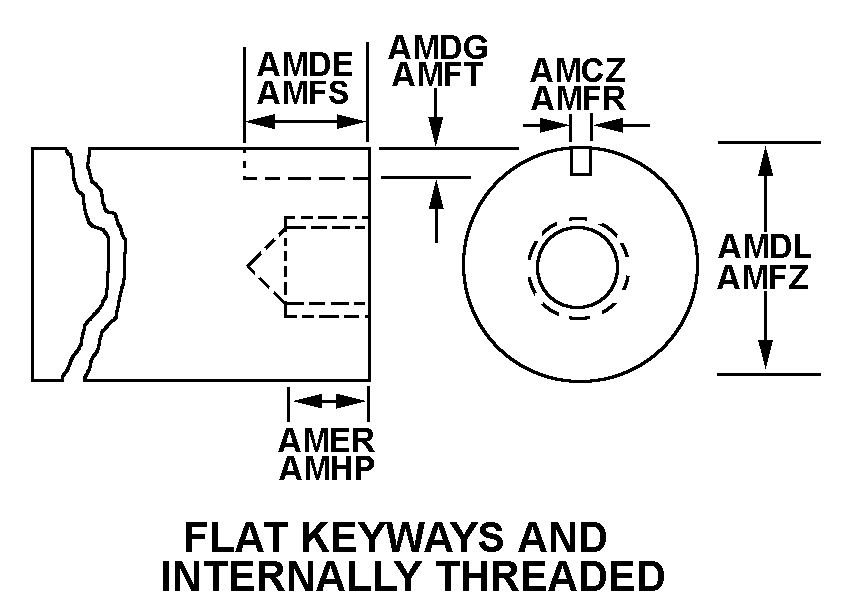

| SECOND END STYLE | 55 FLAT KEYWAY AND INTERNALLY THREADED |
| SECOND END KEYWAY WIDTH | 0.3770 INCHES MINIMUM AND 0.3790 INCHES MAXIMUM |
| SECOND END EXTERNAL KEYWAY LENGTH | 9.000 INCHES NOMINAL |
| SECOND END KEYWAY DEPTH | 0.077 INCHES NOMINAL |
| SECOND END DIAMETER | 2.3800 INCHES NOMINAL |
| SECOND END INTERNAL THREAD LENGTH | 1.500 INCHES NOMINAL |
| LARGEST STEP DIAMETER | 5.000 INCHES NOMINAL |
| OVERALL LENGTH | 43.250 INCHES NOMINAL |
| STEP QUANTITY | 7 |
| SPECIAL FEATURES | 3/8-18 NPT 2ND END,3/8-16 UNC-2B LOCATED IN SECOND END,5/16 IN. DIA BY 5 1/4 IN. DP THD 3/8-18 NPT FIRST END,3/16 IN. DIA THRU HOLE NEAR FIRST END |
Restrictions/Controls & Freight Information | NSN 3040-01-264-3360
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126900 | POWER TRANS SHAFTING/SHAFTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
