NSN 3040-01-249-3382 12354712, 01-249-3382, 012493382

Product Details | SHOULDERED SHAFT

3040-01-249-3382 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.

Part Alternates: 12354712, 3040-01-249-3382, 01-249-3382, 3040012493382, 012493382

Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
30	10 FEB 1987	01-249-3382	22914 ( SHAFT, SHOULDERED )

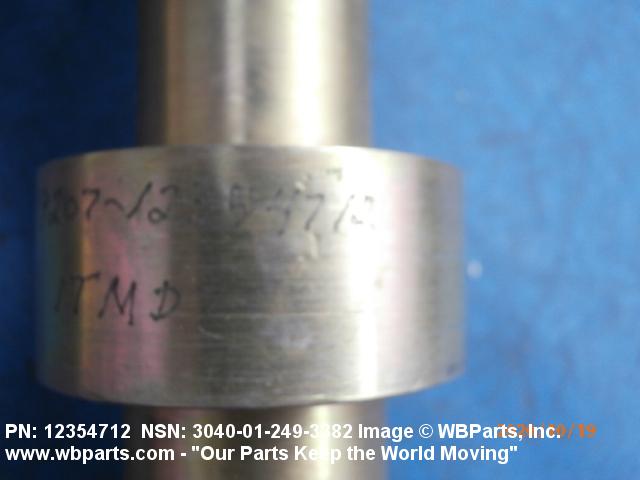

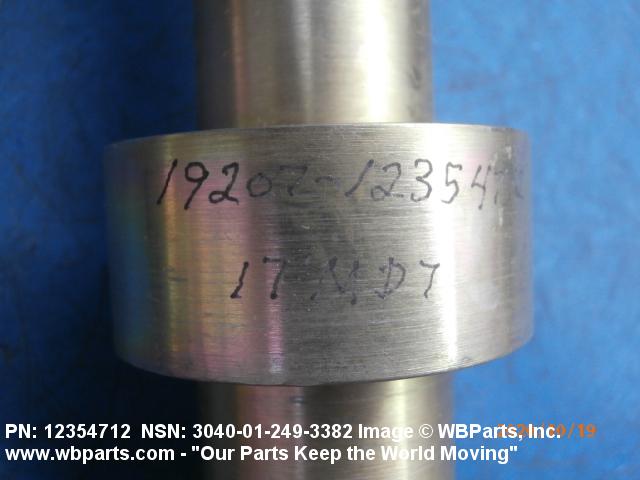

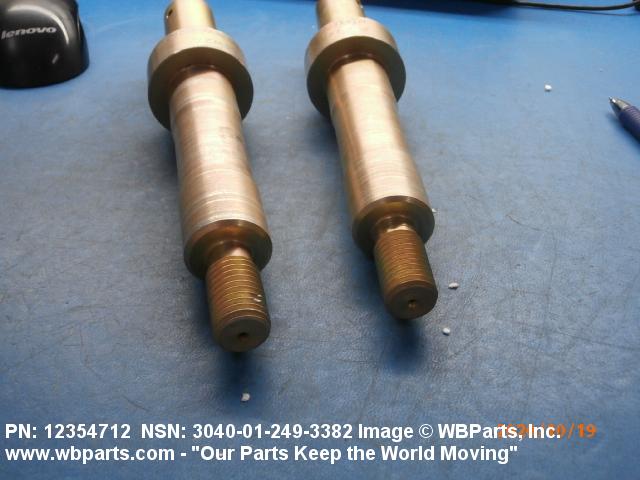

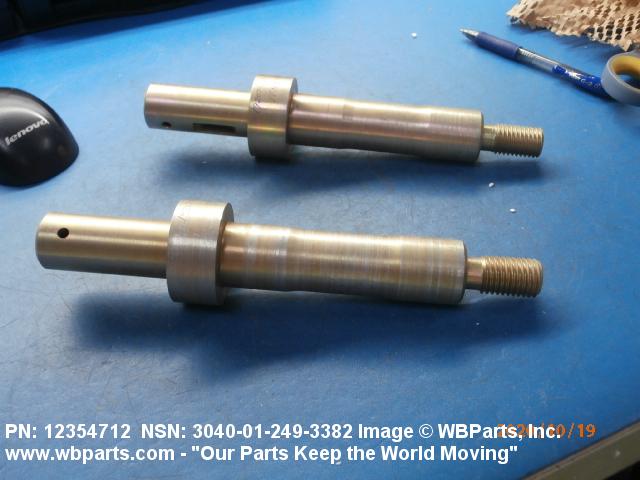

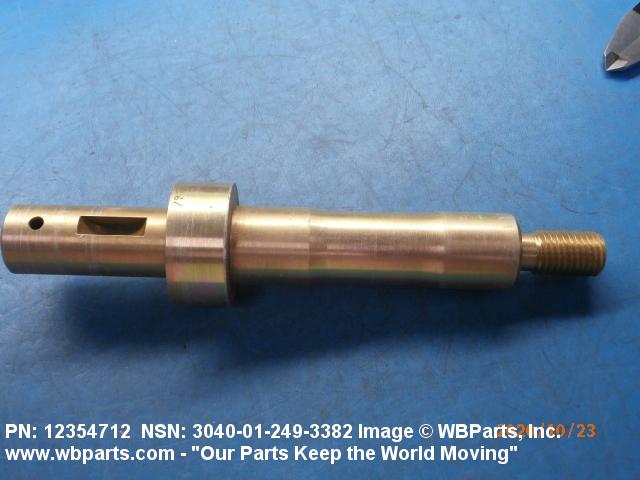

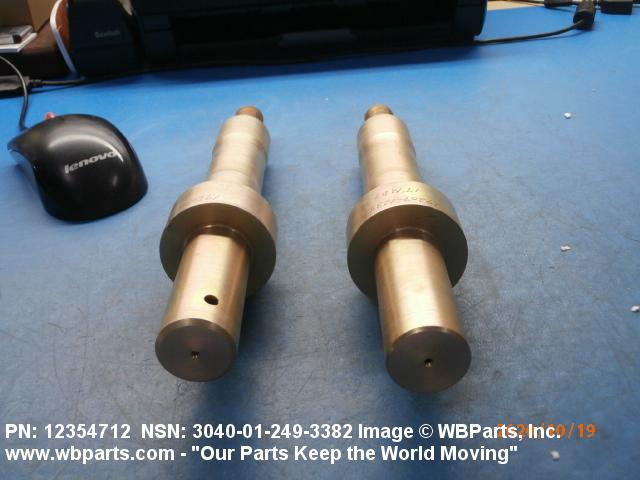

Drawings & Photos | NSN 3040-01-249-3382

Part Number	Request Date	QTY	Origin
3040-01-249-3382	2024-05-149	1	United States
3040-01-249-3382	2020-09-247	1	Malaysia
3040-01-249-3382	2020-01-30	67	DIBBS
3040-01-249-3382	2019-03-78	83	DIBBS
3040-01-249-3382	2014-07-212	130	DIBBS
3040-01-249-3382	2014-07-201	130	DIBBS
3040-01-249-3382	2013-08-234	114	DIBBS
3040-01-249-3382	2012-10-287	0	DIBBS
3040-01-249-3382	2012-10-278	62	DIBBS
3040-01-249-3382	2012-08-233	14	DIBBS
3040-01-249-3382	2009-10-302	5	DIBBS
3040-01-249-3382	2009-09-244	28	DIBBS
3040-01-249-3382	2009-06-156	5	DIBBS
3040-01-249-3382	2009-06-155	57	DIBBS
3040-01-249-3382	2009-04-99	42	DIBBS
3040-01-249-3382	2009-03-89	5	DIBBS
3040-01-249-3382	2007-11-310	136	DIBBS
3040-01-249-3382	2006-02-40	116	DIBBS
3040-01-249-3382	2005-12-341	76	DIBBS

Cross Reference | NSN 3040-01-249-3382

Part Number	Cage Code	Manufacturer
12354712	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
12354712	80212	BAE SYSTEMS LAND & ARMAMENTS L.P.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3040-01-249-3382

Compare

Related Products | NSN 3040-01-249-3382

3040-01-269-6665, 3040-01-282-0296, 2920-01-605-1026, 2920-01-605-2866, 2920-01-605-7907

Technical Data | NSN 3040-01-249-3382

Characteristic	Specifications
MATERIAL	STEEL COMP 4140 OR STEEL COMP 4142 OR STEEL COMP 4145 OR STEEL COMP 4150 OR STEEL COMP 4340
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM A322 ASSN STD ALL MATERIAL RESPONSES OR ASTM A331 ASSN STD ALL MATERIAL RESPONSES
SURFACE FINISH	63.0 MICROINCHES

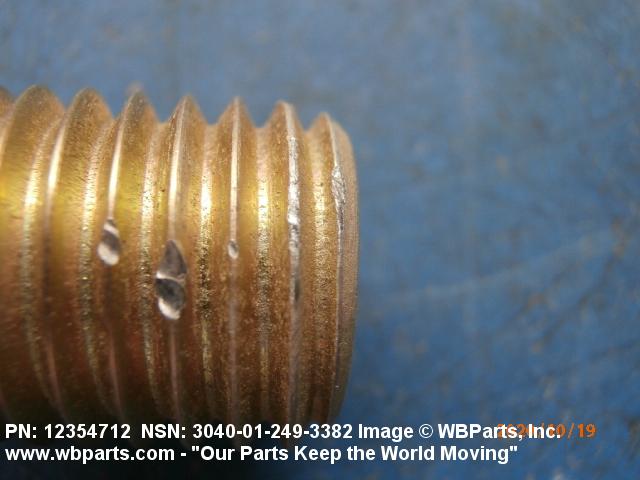

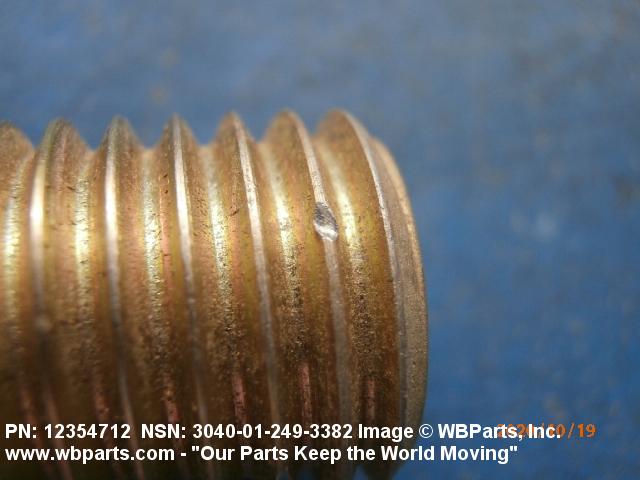

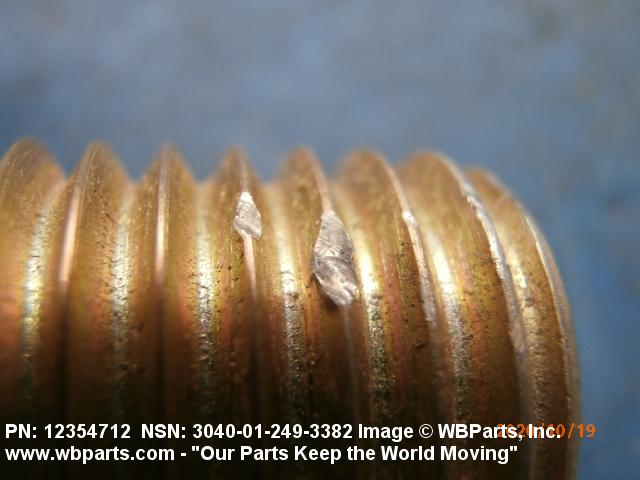

FIRST END STYLE	12 EXTERNAL THREADED

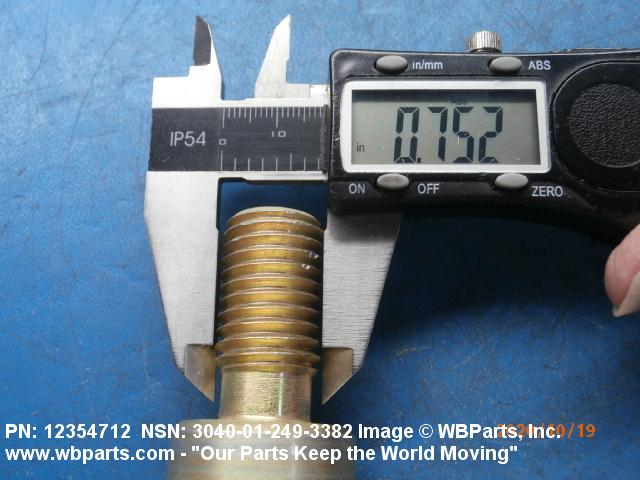

FIRST END DIAMETER	0.7500 INCHES NOMINAL

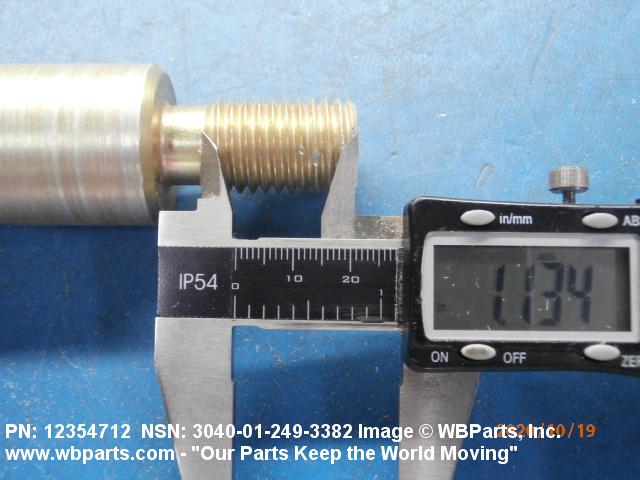

FIRST END EXTERNAL THREAD LENGTH	1.130 INCHES NOMINAL
END SIMILARITY	NOT IDENTICAL

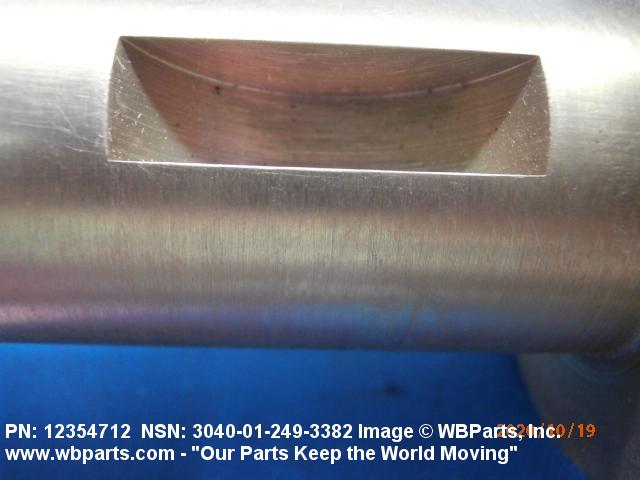

SECOND END STYLE	26 WOODRUFF KEYWAY AND CROSS DRILLED

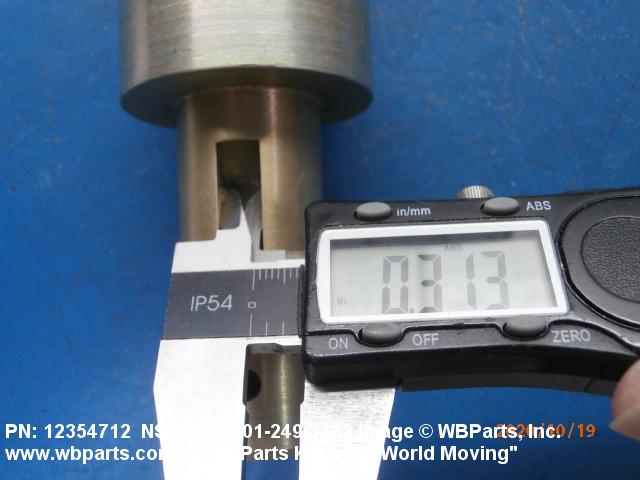

SECOND END KEYWAY WIDTH	0.3121 INCHES NOMINAL
SECOND END EXTERNAL KEYWAY LENGTH	0.5675 INCHES NOMINAL

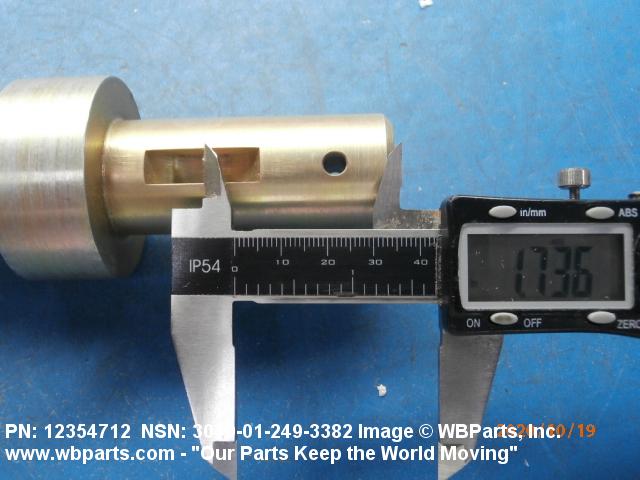

SECOND END DISTANCE FROM KEYWAY CENTER TO END	1.730 INCHES NOMINAL

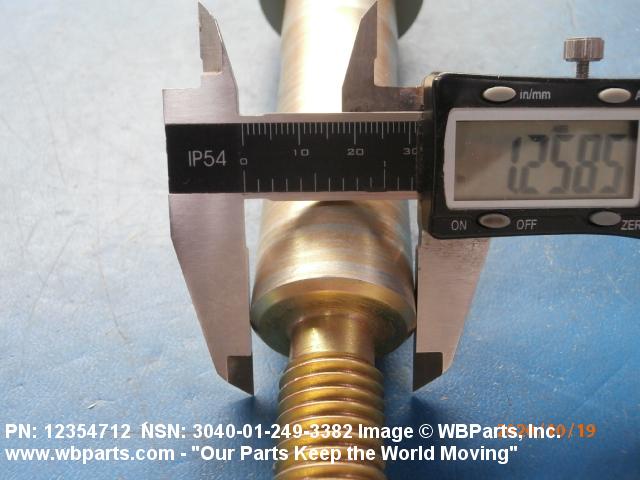

SECOND END DIAMETER	1.1245 INCHES NOMINAL

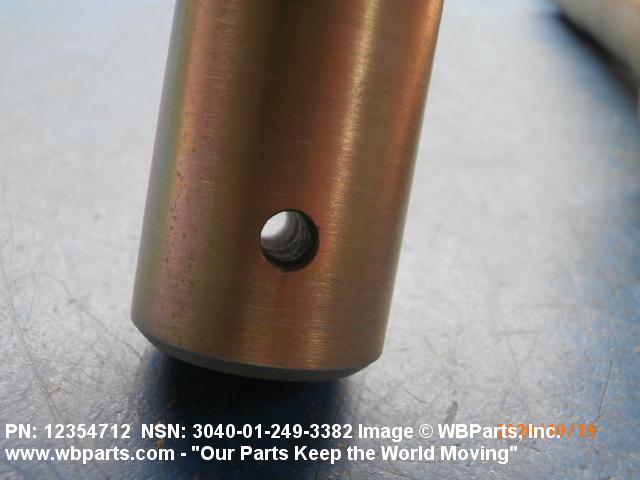

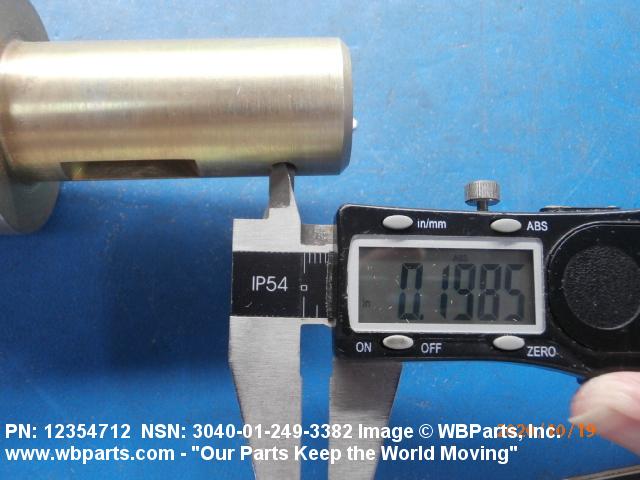

SECOND END HOLE DIAMETER	0.2080 INCHES NOMINAL

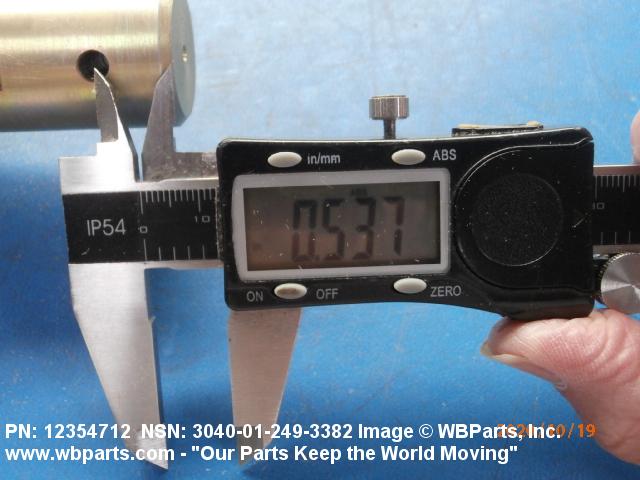

SECOND END DISTANCE FROM HOLE CENTER TO END	0.540 INCHES NOMINAL

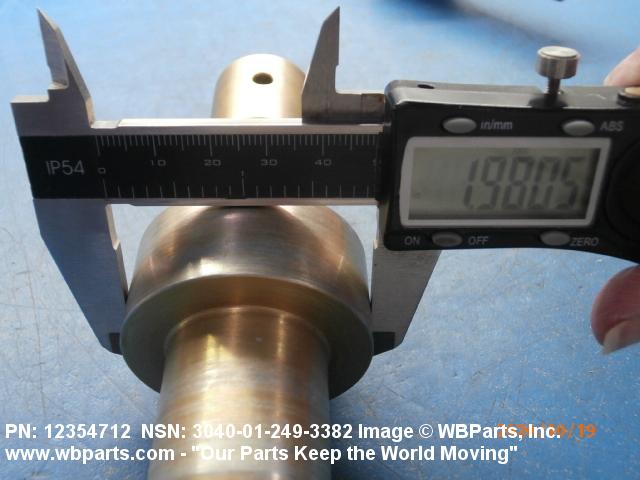

LARGEST STEP DIAMETER	2.000 INCHES NOMINAL

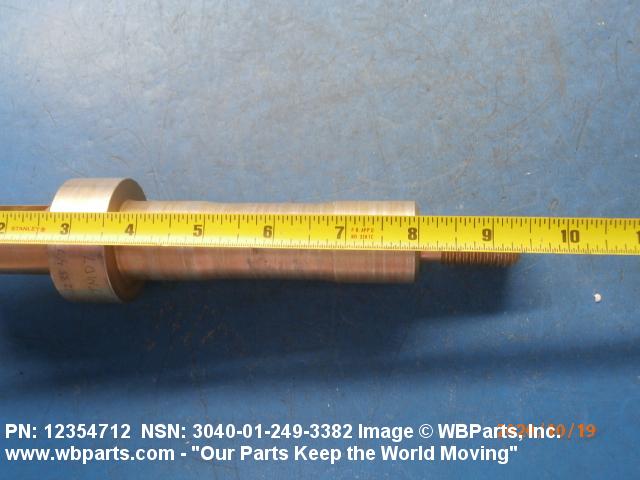

OVERALL LENGTH	9.500 INCHES NOMINAL
STEP QUANTITY	6

Restrictions/Controls & Freight Information | NSN 3040-01-249-3382

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	126900	POWER TRANS SHAFTING/SHAFTS
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	593	unknown
Originating Activity Code	AH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3040-01-249-3382

Army
Navy

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
