NSN 3040-01-205-0577 9344320, 01-205-0577, 012050577
Product Details | LINEAR ACTUATING CYLINDER
3040-01-205-0577 A cylinder designed to house a piston and other necessary component parts of a CYLINDER ASSEMBLY, ACTUATING, LINEAR. Do not use if a more specific name applies.20411900057Specialized Test and Handling Equipment, Nuclear Ordnance16500058Aircraft Hydraulic, Vacuum, and De-icing System Components1710000030400042Miscellaneous Power Transmission Equipment
Part Alternates: 9344320, 3040-01-205-0577, 01-205-0577, 3040012050577, 012050577
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 04 APR 1985 | 01-205-0577 | 22017 ( CYLINDER, ACTUATING, LINEAR ) |
Drawings & Photos | NSN 3040-01-205-0577
Cross Reference | NSN 3040-01-205-0577
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9344320 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-205-0577
Technical Data | NSN 3040-01-205-0577
| Characteristic | Specifications |
|---|---|
| OVERALL WIDTH | 84.500 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 6.375 INCHES NOMINAL |
| BODY MATERIAL | STEEL, AISI 4140 AND STEEL, AISI 8640 |
| BORE DIAMETER | 5.393 INCHES NOMINAL |
| (NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| (NON-CORE DATA) SECOND PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| MOUNTING TYPE AND LOCATION | FLANGE CYLINDER HEAD END BOSS PISTON ROD END |
| MOUNTING PROVISION | SLOT |

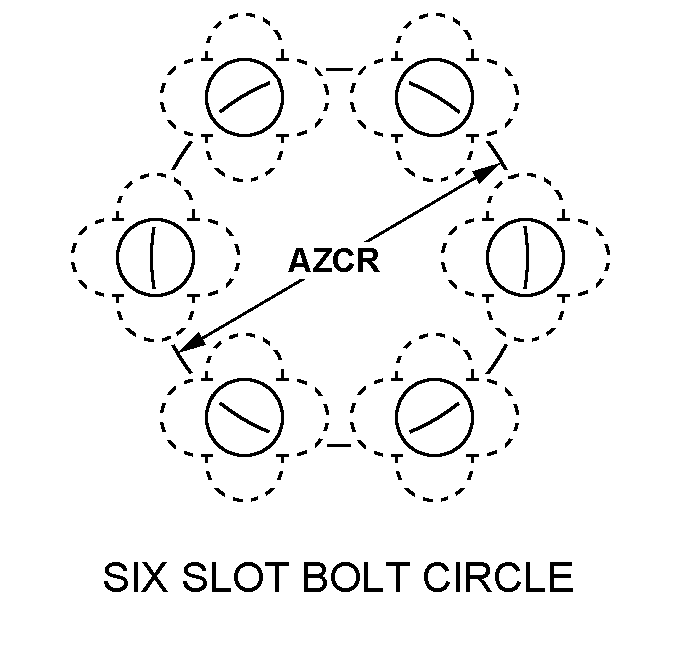

| MOUNTING PROVISION ARRANGEMENT STYLE | 33 SIX SLOT BOLT CIRCLE |
| MOUNTING FACILITY CIRCLE DIAMETER | 6.344 INCHES NOMINAL |
| SLOT WIDTH | 0.625 INCHES NOMINAL |
| SLOT LENGTH | 1.750 INCHES NOMINAL |
| SPECIAL FEATURES | HEAD END THREAD 6.500-8UNS-3A PITCH DIA 6.4188 X 1.312 LG; ROD END THREAD 5.7480D-0.2362P-MOD 6 DEG-NR X 1.188 LG; 32AA BORE SPARE PARTS ONLY |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 9344320 |
Restrictions/Controls & Freight Information | NSN 3040-01-205-0577
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | FF | |
| Type of Cargo | Z | No special type of cargo code applicable |
