NSN 3040-01-106-8197 12295273, 01-106-8197, 011068197
Product Details | SPUR GEARSHAFT
3040-01-106-8197 A gearshaft with a single complement of spur gear teeth. For items with more than one complement of teeth, see GEARSHAFT (1), MULTIPLE GEARS.
Part Alternates: 12295273, 3040-01-106-8197, 01-106-8197, 3040011068197, 011068197
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 25 JAN 1981 | 01-106-8197 | 60541 ( GEARSHAFT, SPUR ) |

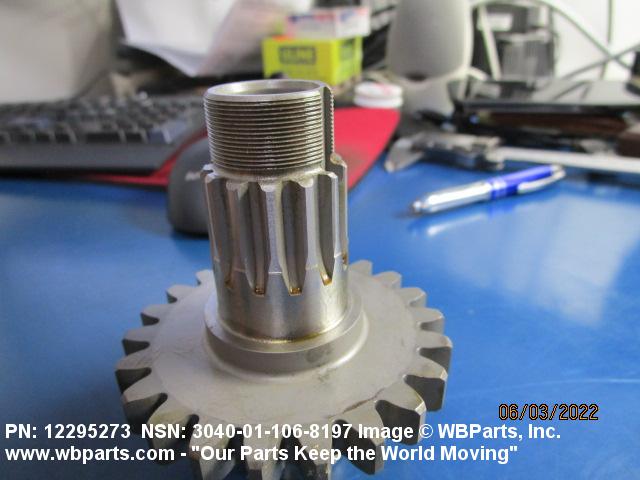

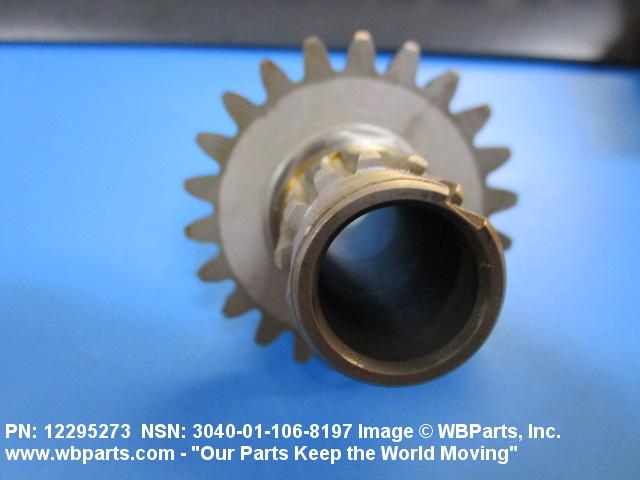

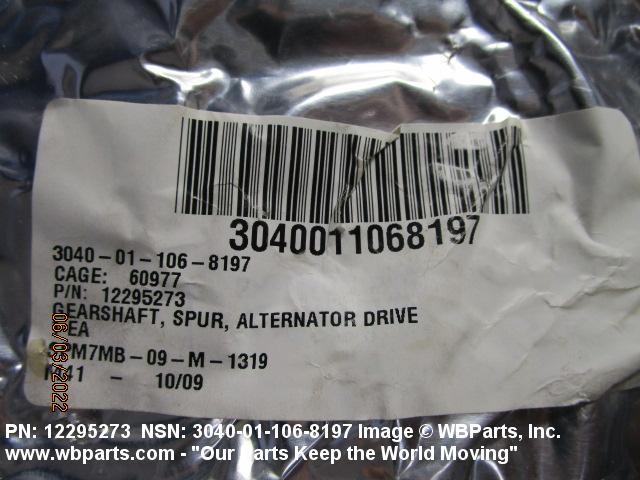

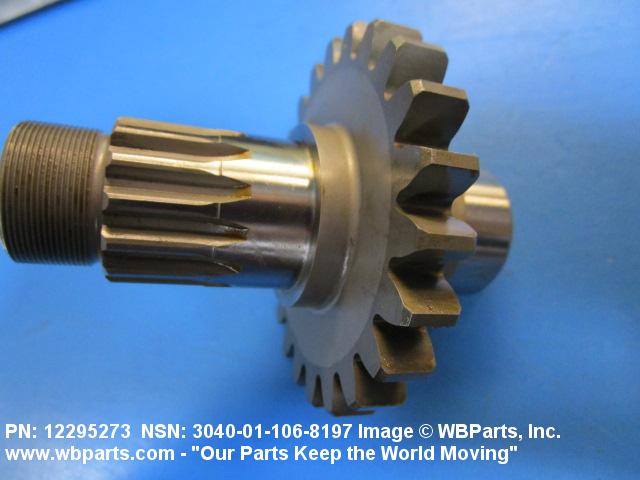

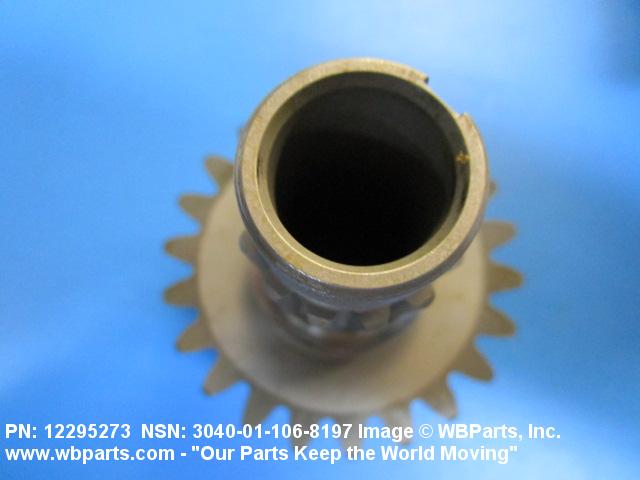

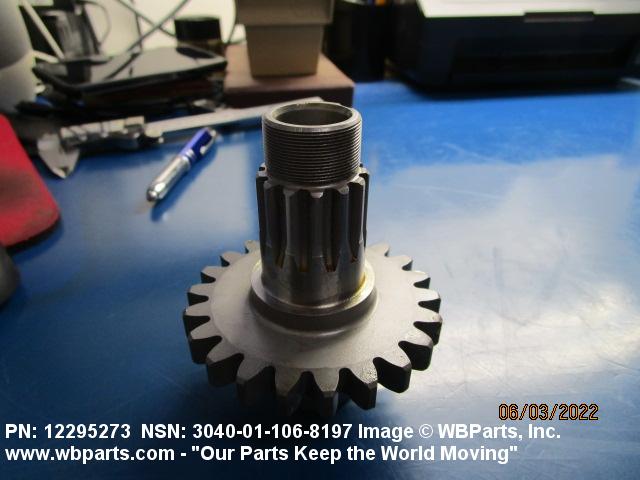

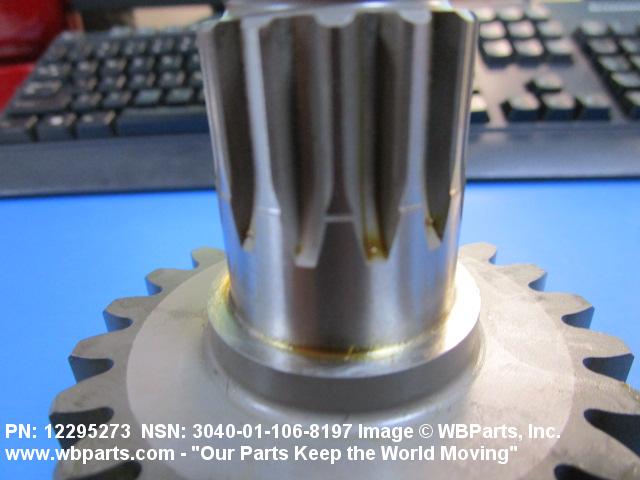

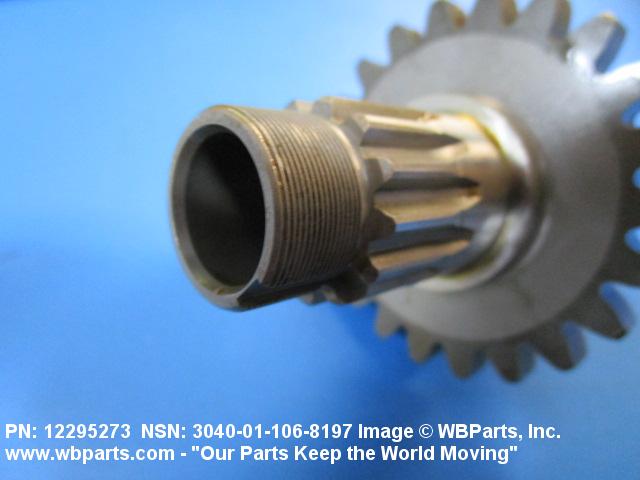

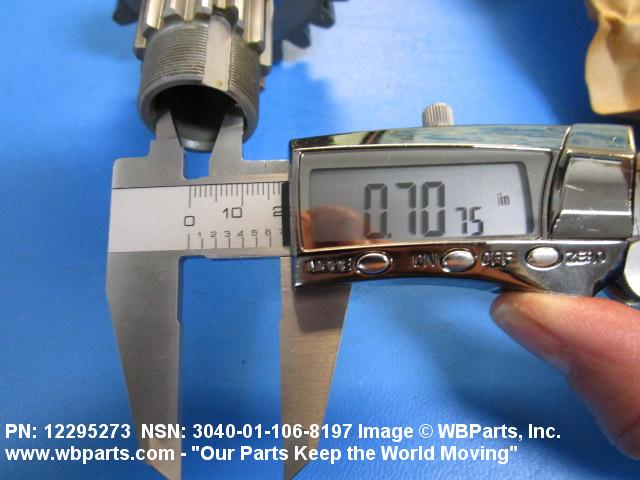

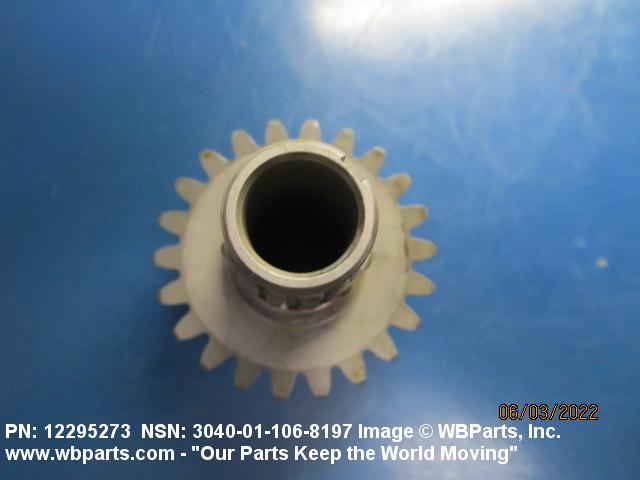

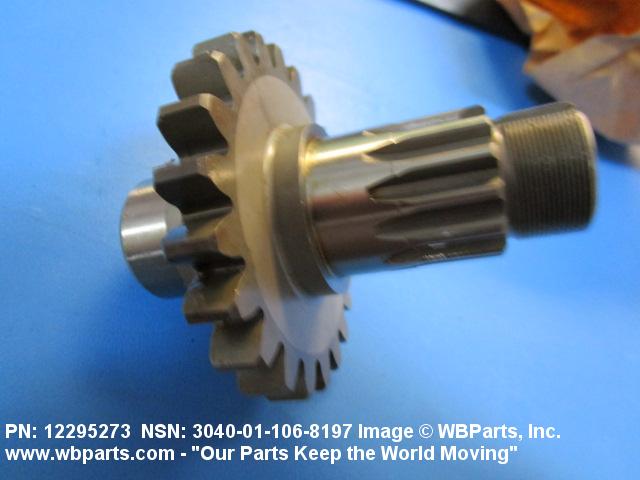

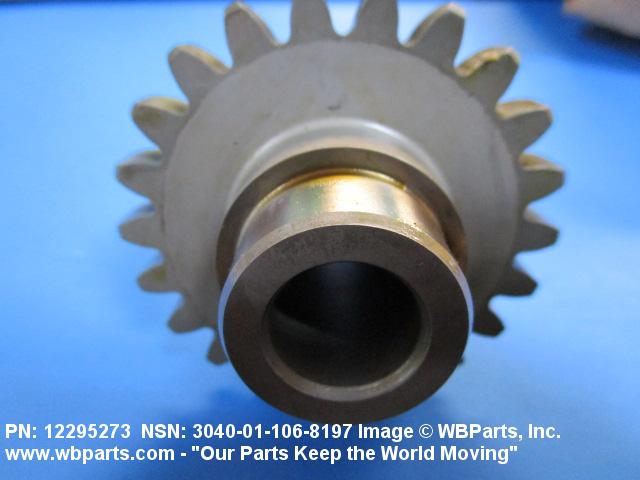

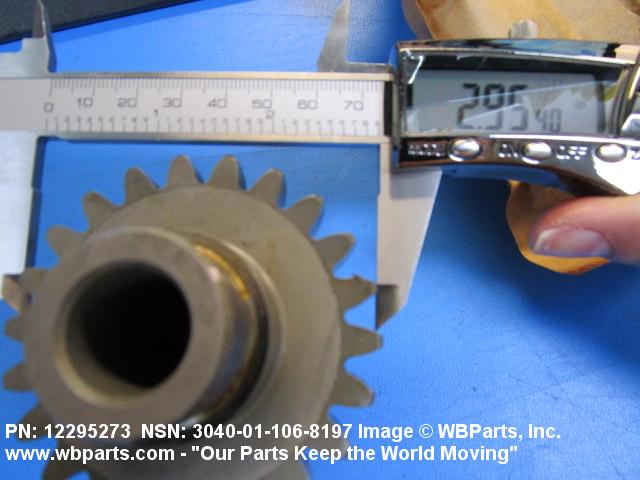

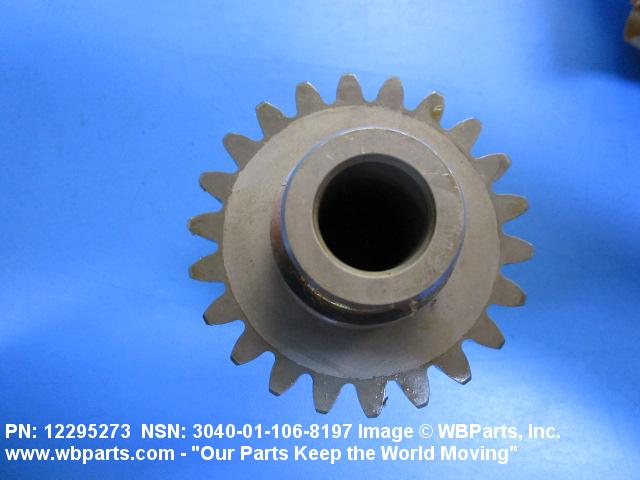

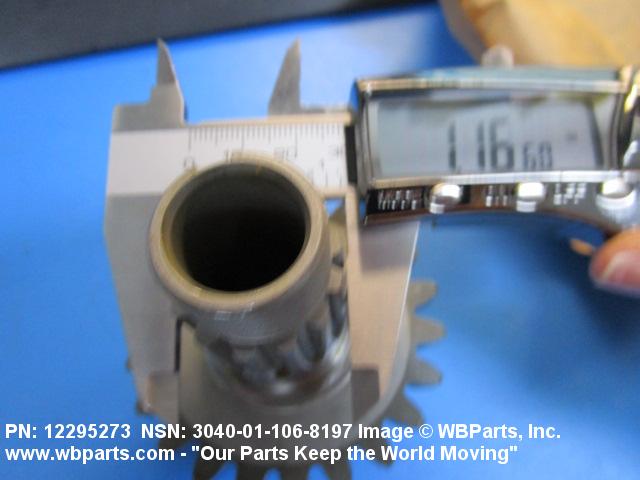

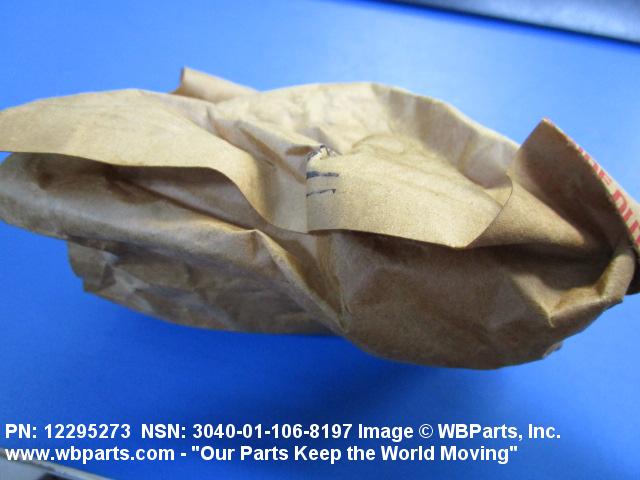

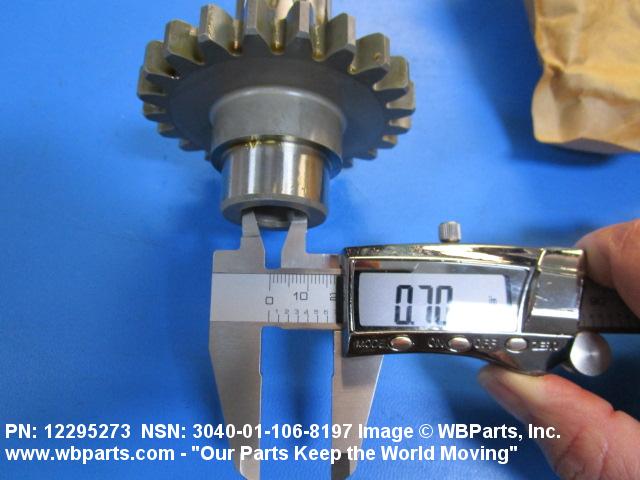

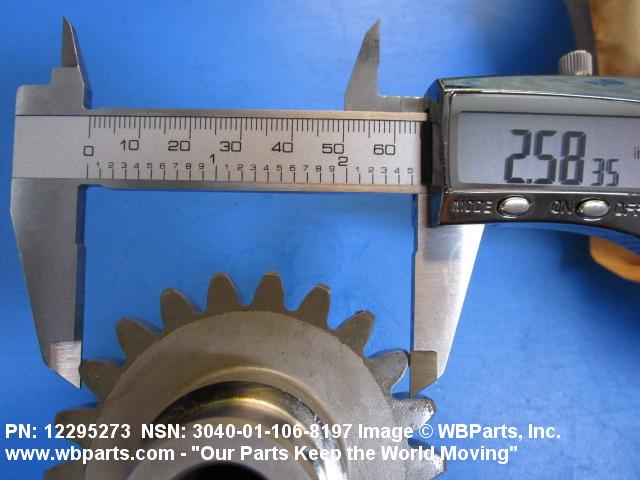

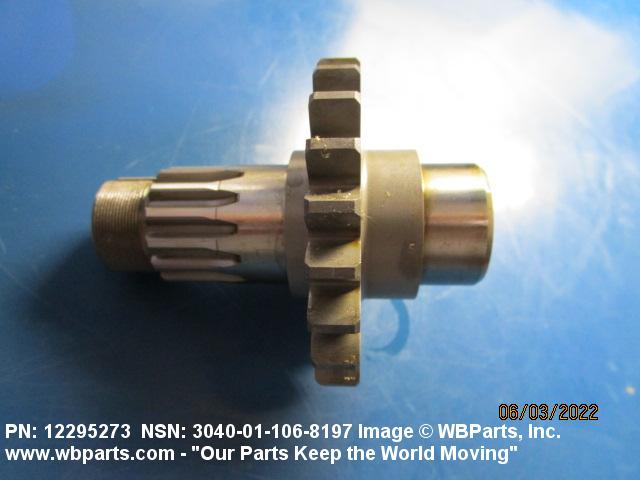

Drawings & Photos | NSN 3040-01-106-8197
Demand History | NSN 3040-01-106-8197
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-01-106-8197 | 2024-03-81 | 1 | Germany |
| 3040-01-106-8197 | 2022-05-151 | 1 | Germany |
| 3040-01-106-8197 | 2021-08-237 | 1 | Germany |
| 3040-01-106-8197 | 2021-04-119 | 1 | Germany |
| 3040-01-106-8197 | 2009-05-125 | 58 | DIBBS |
| 3040-01-106-8197 | 2009-03-72 | 35 | DIBBS |
| 3040-01-106-8197 | 2009-01-02 | 139 | DIBBS |
| 3040-01-106-8197 | 2008-10-288 | 61 | DIBBS |
| 3040-01-106-8197 | 2008-09-268 | 3 | DIBBS |
| 3040-01-106-8197 | 2008-08-241 | 48 | DIBBS |
| 3040-01-106-8197 | 2007-06-169 | 326 | DIBBS |
| 3040-01-106-8197 | 2007-01-31 | 111 | DIBBS |
| 3040-01-106-8197 | 2006-05-142 | 147 | DIBBS |
Cross Reference | NSN 3040-01-106-8197
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12295273 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3040-01-106-8197
Related Products | NSN 3040-01-106-8197
Technical Data | NSN 3040-01-106-8197
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | FORGING STEEL,ALLOY PER MIL-S-46172;EXTERNAL INVOLUTE SPLINE HAS 13 TEETH W/MAX EFFECTIVE THK .1294 IN.;SPLINE BASE DIA OF .9381 IN.;EXTERNAL INVOLUTE SPUR GEAR HAS 22 TEETH W/DIAMETRAL PITCH 8;GEAR BASE DIA IS 2.5841 IN. W/NOM WHOLE DEPTH .2938 IN.;FUNCTIONAL DESC:GEARSHAFT SPUR ALTERNATOR DRIVE |
| III END ITEM IDENTIFICATION | FOR PCCN C921V92 CARRIER,MLRS |
Restrictions/Controls & Freight Information | NSN 3040-01-106-8197
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126900 | POWER TRANS SHAFTING/SHAFTS S |
| Less than car load rating | M | 85 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-01-106-8197
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | M | Armored Carriers |
| Weapons Systems/End Item or Homogeneous Group | MM | Infantry Fighting Vehicle (M2, M2A1, M2A2), Cavelry Fighting Vehicle (M3, M3A1, M3A2) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
