NSN 3040-01-106-8083 011068083

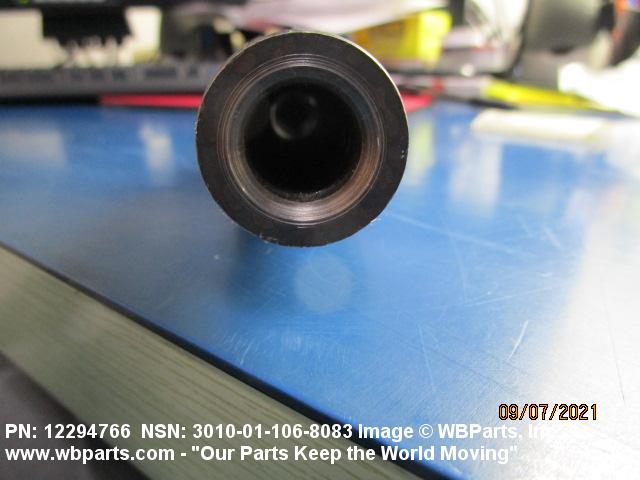

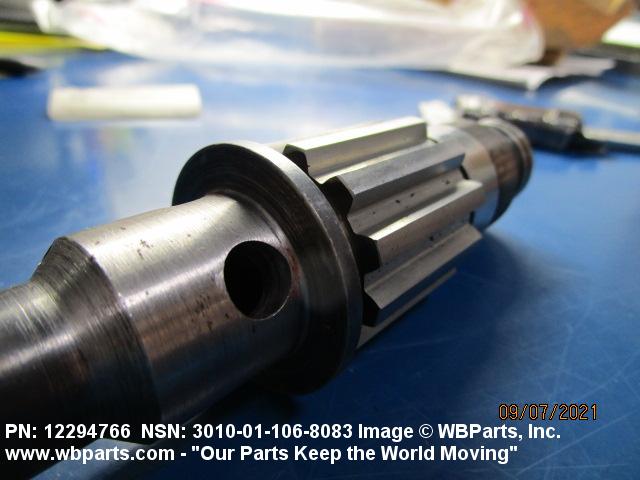

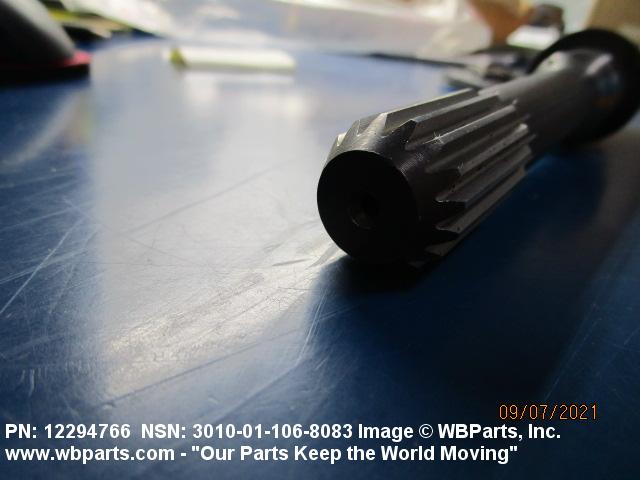

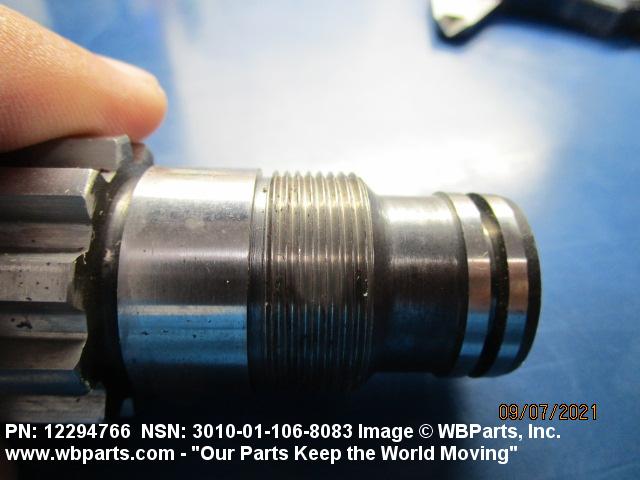

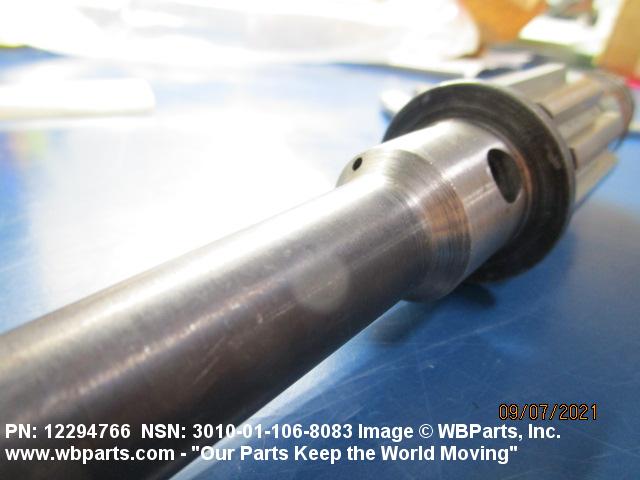

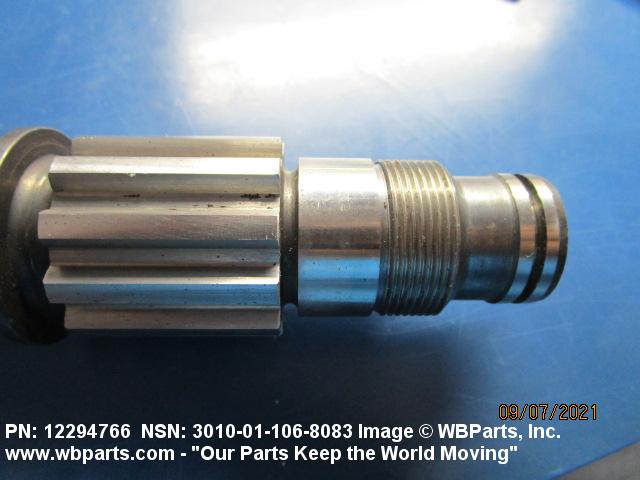

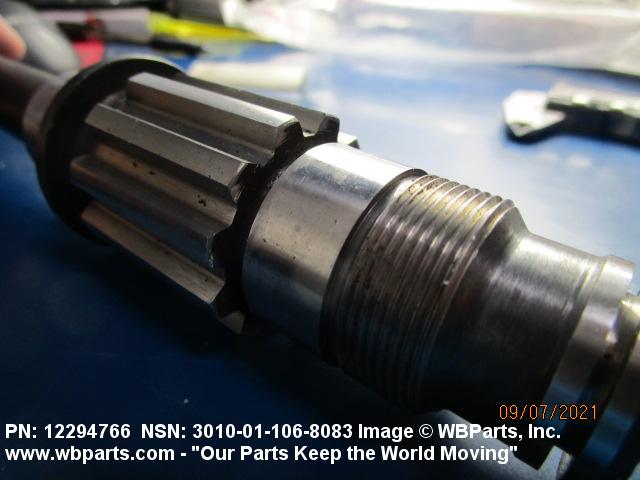

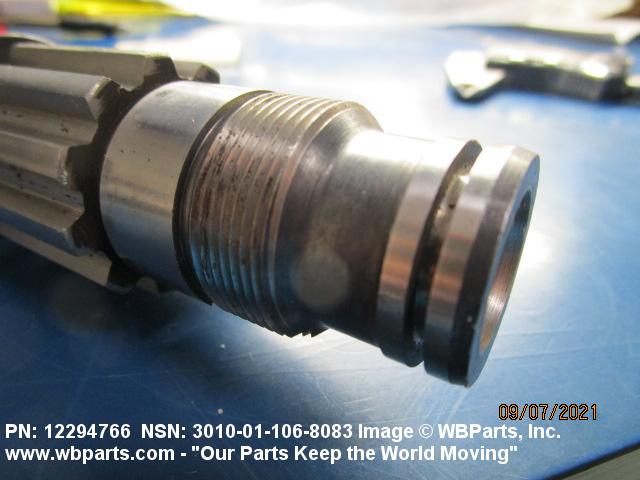

Product Details | SHOULDERED SHAFT
3040-01-106-8083 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: 011068083
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
30 | 01-106-8083 | 22914 ( SHAFT, SHOULDERED ) |
Demand History | NSN 3040-01-106-8083
Part Number | Request Date | QTY | Origin |
---|---|---|---|
3010-01-106-8083 | 2021-08-237 | 1 | Germany |
3010-01-106-8083 | 2021-04-119 | 1 | Germany |
3010-01-106-8083 | 2009-01-20 | 102 | DIBBS |
3010-01-106-8083 | 2007-06-157 | 36 | DIBBS |
3010-01-106-8083 | 2006-05-136 | 58 | DIBBS |
3010-01-106-8083 | 2006-02-39 | 60 | DIBBS |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 3040-01-106-8083
Technical Data | NSN 3040-01-106-8083

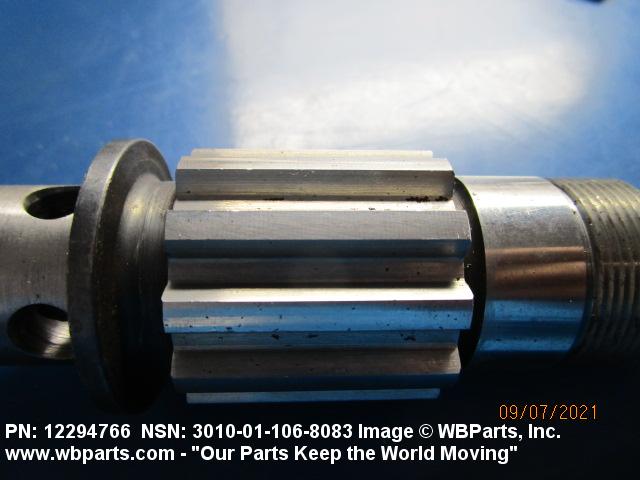

Characteristic | Specifications |
---|---|
MATERIAL | STEEL COMP 4130 |
FIRST END STYLE | 18 SPLINED |

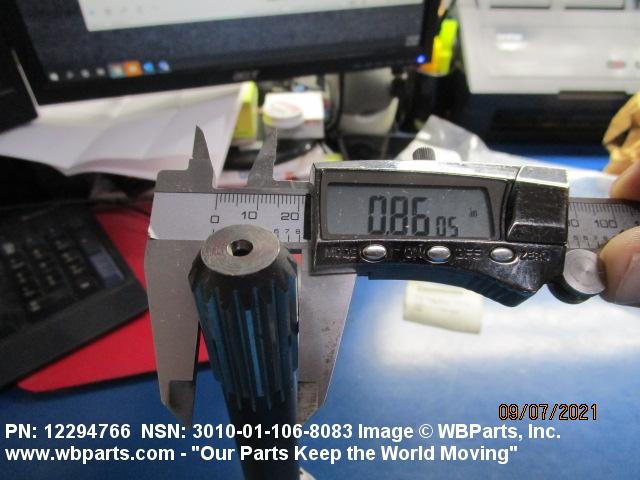

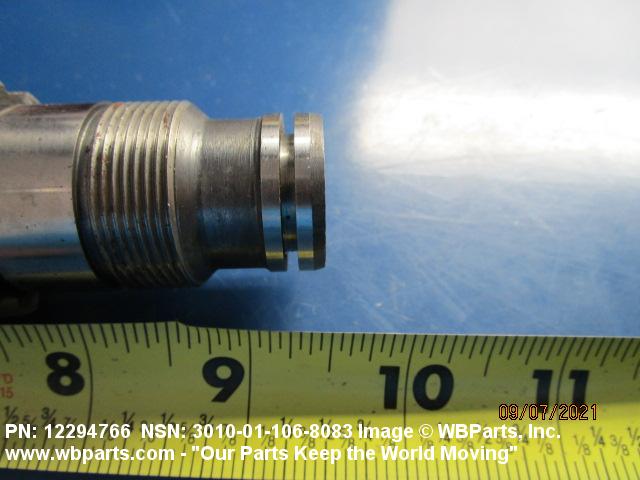

FIRST END DIAMETER | 0.8670 INCHES NOMINAL |
FIRST END SPLINE LENGTH | 1.1800 INCHES NOMINAL |
FIRST END SPLINE MINOR DIAMETER | 0.6930 INCHES NOMINAL |
FIRST END SPLINE MAJOR DIAMETER | 0.8670 INCHES NOMINAL |
FIRST END PITCH DIAMETER | 0.8000 INCHES NOMINAL |
FIRST END PRESSURE ANGLE | 30.0 DEGREES NOMINAL |
FIRST END SPLINE QUANTITY | 16 |
END SIMILARITY | NOT IDENTICAL |
SECOND END STYLE | 18 SPLINED |
SECOND END DIAMETER | 1.4710 INCHES NOMINAL |
SECOND END SPLINE LENGTH | 1.410 INCHES NOMINAL |
SECOND END SPLINE MINOR DIAMETER | 1.2030 INCHES NOMINAL |
SECOND END SPLINE MAJOR DIAMETER | 1.4710 INCHES NOMINAL |
SECOND END PITCH DIAMETER | 1.3750 INCHES NOMINAL |
SECOND END PRESSURE ANGLE | 30.0 DEGREES NOMINAL |
SECOND END SPLINE QUANTITY | 11 |
LARGEST STEP DIAMETER | 1.190 INCHES NOMINAL |
OVERALL LENGTH | 9.460 INCHES NOMINAL |
STEP QUANTITY | 10 |
Restrictions/Controls & Freight Information | NSN 3040-01-106-8083
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Category | Code | Description |
---|---|---|
No Freight Information |
