NSN 3040-01-099-6458 SR11714A, 70400-02268-044, 2029044
Product Details | RIGID CONNECTING LINK
3040-01-099-6458 An item of various cross-sectional shapes which may be of solid or hollow construction. It is specifically designed for attachment to a lever(s) and/or control(s) to actuate various remote mechanisms. It is one of the following: (1) A one-piece item with or without eyes and/or holes in each end which may have bushings or bearings pressed in the eyes; (2) A one-piece item with both ends processed for terminations, excluding threaded end(s); (3) A two-piece construction type item consisting of a body with both ends processed for terminations and a single end attachment; or (4) A three-piece construction type item consisting of a body and two end attachments. Excludes internal combustion engine type piston connecting rods; DRAG LINK, STEERING; LINK, ANCHOR, BRAKE SHOE; TIE ROD, STEERING; and TURNBUCKLE. For cylindrical shaped externally threaded items without end attachments, see ROD, THREADED END and STUD (as modified).
Part Alternates: SR11714A, 70400-02268-044, 2029044, 2029-044, 3040-01-099-6458, 01-099-6458, 3040010996458, 7040002268044, 010996458
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 22 AUG 1980 | 01-099-6458 | 21988 ( CONNECTING LINK, RIGID ) |

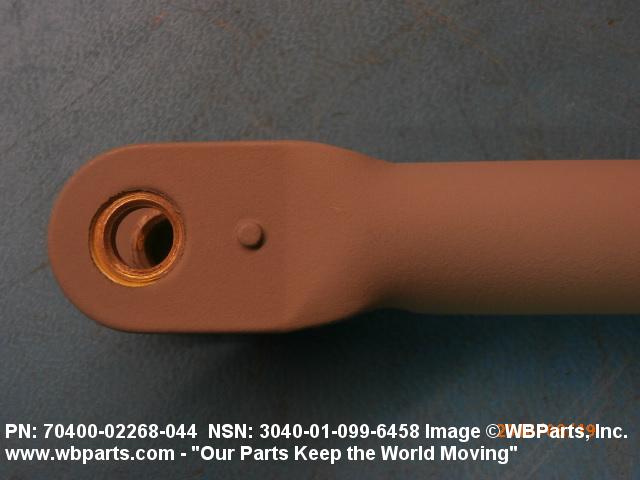

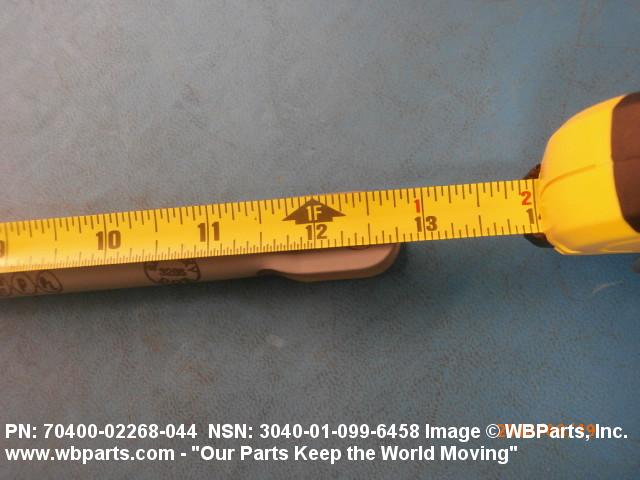

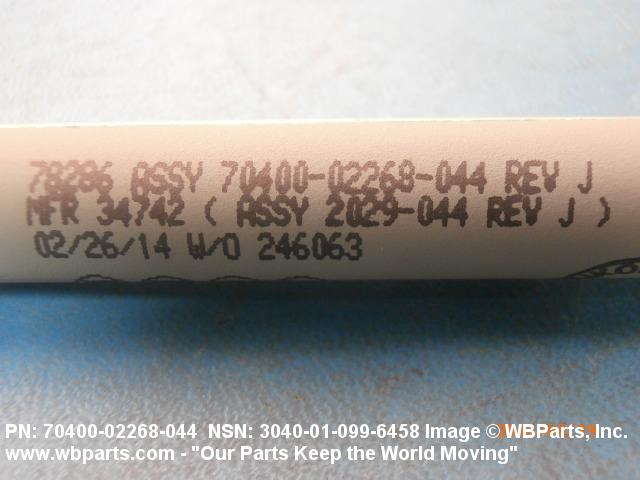

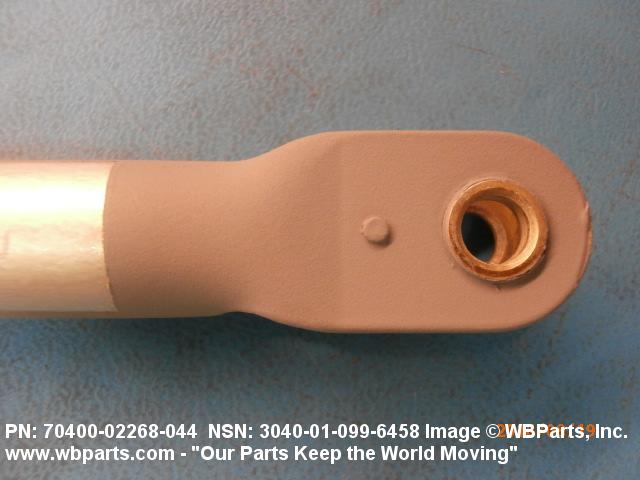

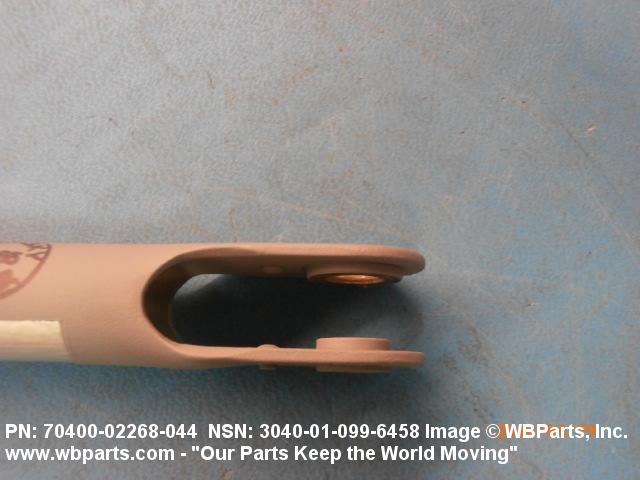

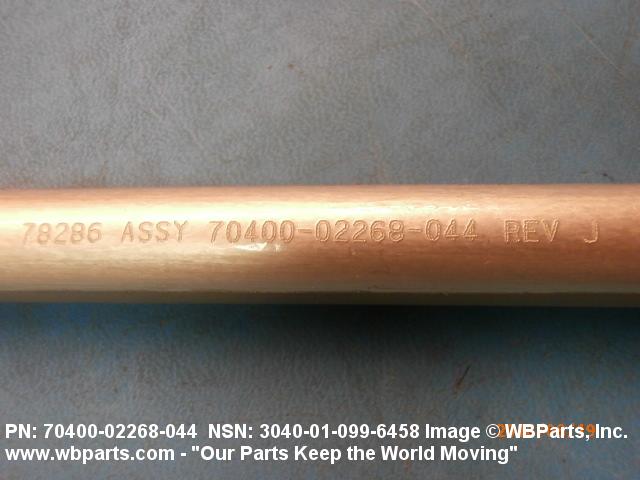

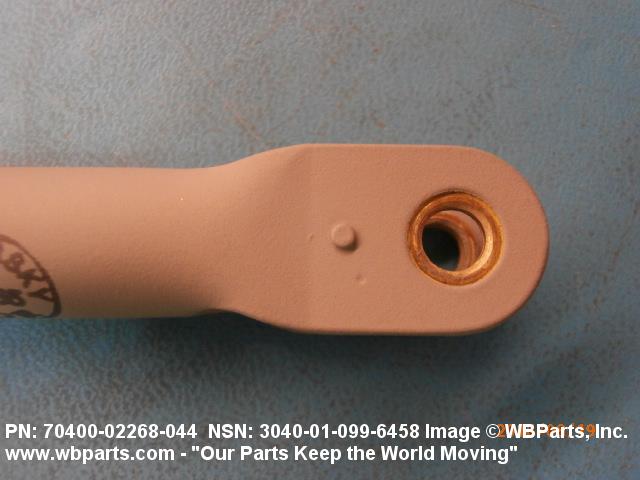

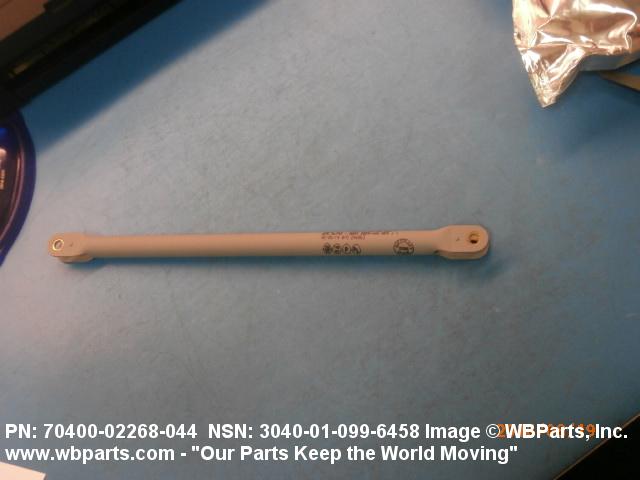

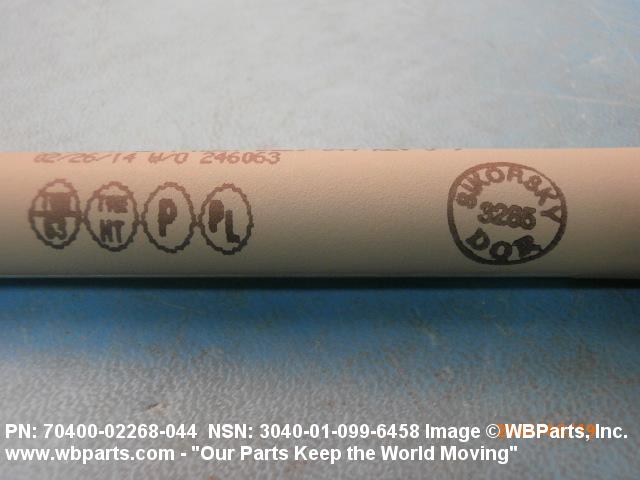

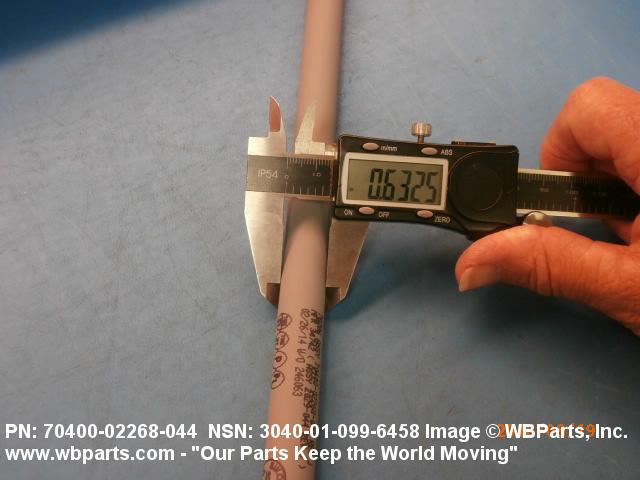

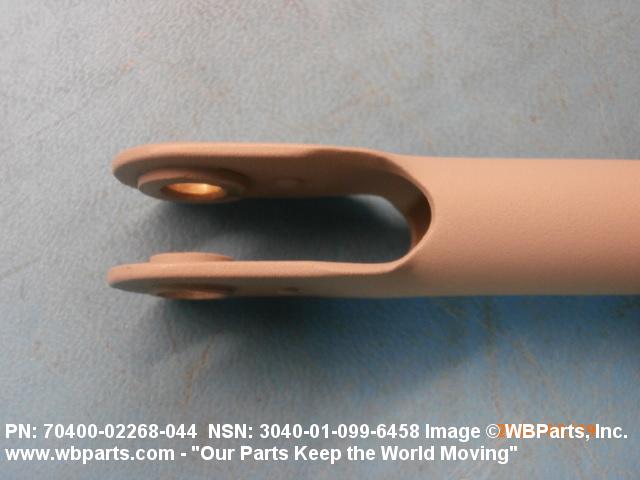

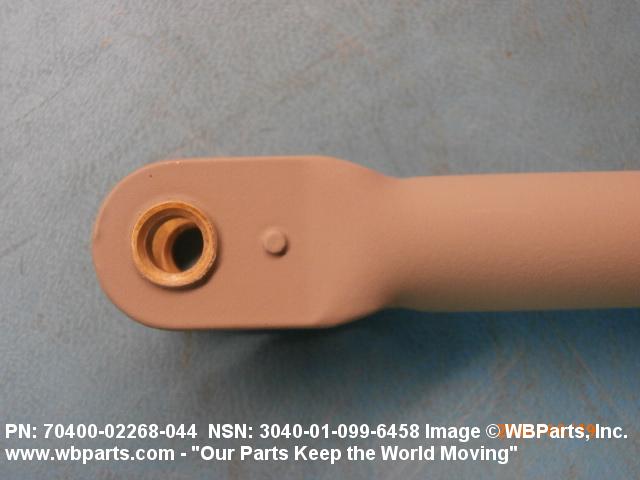

Drawings & Photos | NSN 3040-01-099-6458
Demand History | NSN 3040-01-099-6458
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SR11714A | 2022-05-123 | 1 | US |
| 7040-00-226-8044 | 2016-07-203 | 1 | United States |
| 3040-01-099-6458 | 2015-08-243 | 1 | MANUAL |
| 70400-02268-044 | 2015-08-243 | 1 | US |
| 3040-01-099-6458 | 2013-07-191 | 1 | DIBBS-RFPs |
| 3040-01-099-6458 | 2013-06-156 | 150 | DIBBS |
| 3040-01-099-6458 | 2013-03-87 | 400 | DIBBS |
| 3040-01-099-6458 | 2013-01-08 | 370 | DIBBS |
| 3040-01-099-6458 | 2012-08-229 | 17 | DIBBS |
| 3040-01-099-6458 | 2012-05-122 | 9 | DIBBS |
| 3040-01-099-6458 | 2012-03-86 | 1 | MANUAL |
| 70400-02268-044 | 2012-03-86 | 1 | US |
| 3040-01-099-6458 | 2012-01-18 | 18 | DIBBS |
| 3040-01-099-6458 | 2011-12-347 | 19 | DIBBS |
| 3040-01-099-6458 | 2011-02-55 | 16 | DIBBS |
| 3040-01-099-6458 | 2010-08-242 | 20 | DIBBS |
| 3040-01-099-6458 | 2010-07-210 | 19 | DIBBS |
| SR11714A | 2009-09-253 | 1 | United States |
| 3040-01-099-6458 | 2006-07-188 | 23 | DIBBS |
Cross Reference | NSN 3040-01-099-6458
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2029-044 | 34742 | WESTERN SKY INDUSTRIES, LLC DBA TYEE AIRCRAFT |
| 70400-02268-044 | 3U613 | SKF COMPONENT SYSTEMS INC |
| 70400-02268-044 | 52676 | SKF USA INC. |
| 70400-02268-044 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
| 70400-02268-044 | 97393 | SHUR-LOK CORPORATION DBA SPS FASTENER DIVISION, A PCC |
| 70400-02268-044 | F0222 | SKF AEROSPACE FRANCE |
| SR11714A | 97393 | SHUR-LOK CORPORATION DBA SPS FASTENER DIVISION, A PCC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3040-01-099-6458
Related Products | NSN 3040-01-099-6458
Technical Data | NSN 3040-01-099-6458
| Characteristic | Specifications |
|---|---|
| BODY CONSTRUCTION | SOLID |
| LINK STYLE | A12 CLEVIS ENDS |
| OVERALL LENGTH | 12.796 INCHES NOMINAL |
| BODY DIAMETER | 0.620 INCHES NOMINAL |
| (NON-CORE DATA) MATERIAL | ALUMINUM ALLOY,WW-T-700/103 |
Restrictions/Controls & Freight Information | NSN 3040-01-099-6458
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095630 | LAP/CONNECTING LINKS/RINGS STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-01-099-6458
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
