Product Details | SHOULDERED SHAFT
3040-01-096-4578 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: 1709857 , 729521, 3040-01-096-4578, 01-096-4578, 3040010964578, 010964578
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 20 JUN 1980 | 01-096-4578 | 22914 ( SHAFT, SHOULDERED ) |
Drawings & Photos | NSN 3040-01-096-4578
Demand History | NSN 3040-01-096-4578
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-01-096-4578 | 2015-11-334 | 3 | DIBBS |
| 3040-01-096-4578 | 2015-10-286 | 46 | DIBBS |
| 3040-01-096-4578 | 2015-09-263 | 18 | DIBBS |
| 3040-01-096-4578 | 2014-04-106 | 75 | DIBBS |
| 3040-01-096-4578 | 2014-03-82 | 26 | DIBBS |
| 3040-01-096-4578 | 2014-02-44 | 24 | DIBBS |
| 3040-01-096-4578 | 2014-01-30 | 1 | DIBBS |
| 3040-01-096-4578 | 2014-01-22 | 1 | DIBBS |
| 3040-01-096-4578 | 2014-01-07 | 26 | DIBBS |
| 3040-01-096-4578 | 2013-10-294 | 37 | DIBBS |
| 3040-01-096-4578 | 2013-10-288 | 1 | DIBBS |
| 3040-01-096-4578 | 2013-08-233 | 10 | DIBBS |
| 3040-01-096-4578 | 2013-05-139 | 72 | DIBBS |
| 3040-01-096-4578 | 2013-02-55 | 39 | DIBBS |
| 3040-01-096-4578 | 2013-02-39 | 39 | DIBBS |
| 3040-01-096-4578 | 2012-10-278 | 41 | DIBBS |
| 3040-01-096-4578 | 2012-09-249 | 19 | DIBBS |
| 3040-01-096-4578 | 2008-05-133 | 68 | DIBBS |
| 3040-01-096-4578 | 2007-09-256 | 70 | DIBBS |
| 3040-01-096-4578 | 2007-06-159 | 51 | DIBBS |
| 3040-01-096-4578 | 2007-05-136 | 27 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3040-01-096-4578
Related Products | NSN 3040-01-096-4578
Technical Data | NSN 3040-01-096-4578
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QC13.01-03,CLASS 4 MFR REF SINGLE MATERIAL RESPONSE |
| SURFACE FINISH | 125.0 MICROINCHES |
| FIRST END STYLE | 5 CIRCULAR GROOVED |
| FIRST END GROOVE WIDTH | 0.0420 INCHES NOMINAL |
| FIRST END GROOVE DIAMETER | 1.0830 INCHES NOMINAL |
| FIRST END DISTANCE FROM END TO GROOVE | 0.030 INCHES NOMINAL |
| FIRST END DIAMETER | 1.1250 INCHES NOMINAL |
| END SIMILARITY | NOT IDENTICAL |

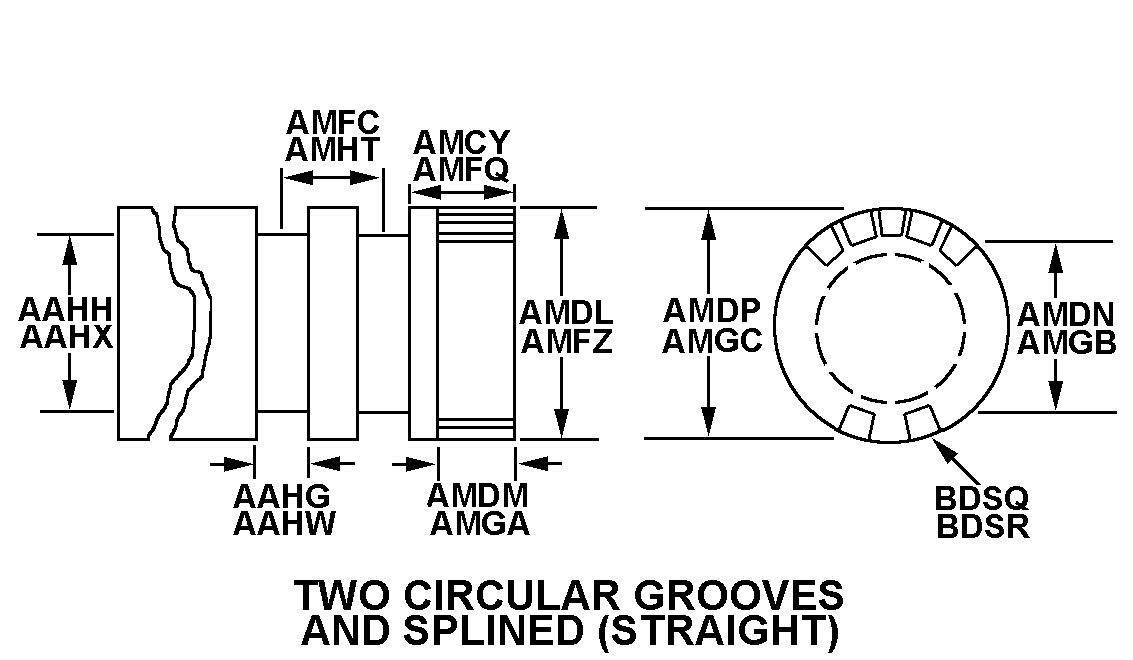

| SECOND END STYLE | 73 TWO CIRCULAR GROOVES AND SPLINED |
| SECOND END GROOVE WIDTH | 0.6250 INCHES NOMINAL |
| SECOND END GROOVE DIAMETER | 1.1450 INCHES NOMINAL |
| SECOND END DISTANCE FROM END TO GROOVE | 0.952 INCHES NOMINAL |
| SECOND END DIAMETER | 1.1450 INCHES NOMINAL |
| SECOND END SPLINE LENGTH | 0.703 INCHES NOMINAL |
| SECOND END SPLINE MINOR DIAMETER | 0.0690 INCHES NOMINAL |
| SECOND END SPLINE MAJOR DIAMETER | 0.0703 INCHES NOMINAL |
| SECOND END DISTANCE BETWEEN FIRST AND SECOND GROOVE CENTERS | 0.563 INCHES NOMINAL |
| SECOND END SPLINE QUANTITY | 24 |
| LARGEST STEP DIAMETER | 1.688 INCHES NOMINAL |
| OVERALL LENGTH | 4.396 INCHES NOMINAL |
| STEP QUANTITY | 3 |
| III END ITEM IDENTIFICATION | U/O CONSTANT SPEED DRIVE P/N 7115953 AIRCRAFT F15A |
| MANUFACTURERS CODE | 99167 |
| DESIGN CONTROL REFERENCE | 729521 |
