NSN 3040-01-096-1620 PL852T06ITEM7, PL-8-52T-06ITEM7, 852430
Product Details | SHOULDERED SHAFT
3040-01-096-1620 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: PL852T06ITEM7, PL-8-52T-06ITEM7, 852430, 8-52-430, 852B26, 8-52B-26, 852B262, 8-52B-26-2, 8-52T-06 ITEM 7, 852T06ITEM7, 3040-01-096-1620, 01-096-1620, 3040010961620, 010961620
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 14 JUN 1980 | 01-096-1620 | 22914 ( SHAFT, SHOULDERED ) |
Drawings & Photos | NSN 3040-01-096-1620
Demand History | NSN 3040-01-096-1620
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-01-096-1620 | 2017-07-201 | 9 | DIBBS |
| 3040-01-096-1620 | 2017-07-190 | 9 | DIBBS |
| 3040-01-096-1620 | 2016-05-129 | 9 | DIBBS |
Cross Reference | NSN 3040-01-096-1620
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8-52-430 | 32386 | ILLINOIS TOOL WKS INC LINAC DIV |
| 8-52-430 | 9U023 | ITW HEARTLAND COMPONENTS INC |
| 8-52B-26 | 32386 | ILLINOIS TOOL WKS INC LINAC DIV |
| 8-52B-26-2 | 32386 | ILLINOIS TOOL WKS INC LINAC DIV |
| 8-52B-26-2 | 9U023 | ITW HEARTLAND COMPONENTS INC |
| 8-52T-06 ITEM 7 | 9U023 | ITW HEARTLAND COMPONENTS INC |
| PL-8-52T-06ITEM7 | 32386 | ILLINOIS TOOL WKS INC LINAC DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-096-1620
Technical Data | NSN 3040-01-096-1620
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-764,CLASS 303,COND A FED SPEC SINGLE MATERIAL RESPONSE OR QQ-S-764,CLASS 304,COND A FED SPEC SINGLE MATERIAL RESPONSE OR QQ-S-766,CLASS 303,COND A FED SPEC SINGLE MATERIAL RESPONSE OR QQ-S-766,CLASS 304,COND A FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE FINISH | 16.0 MICROINCHES |
| FIRST END STYLE | 17 HEXAGONAL |
| FIRST END DIAMETER | 1.9000 INCHES NOMINAL |
| FIRST END WIDTH ACROSS FLATS | 1.720 INCHES MINIMUM AND 1.730 INCHES MAXIMUM |
| FIRST END STEP LENGTH | 2.540 INCHES NOMINAL |
| END SIMILARITY | NOT IDENTICAL |

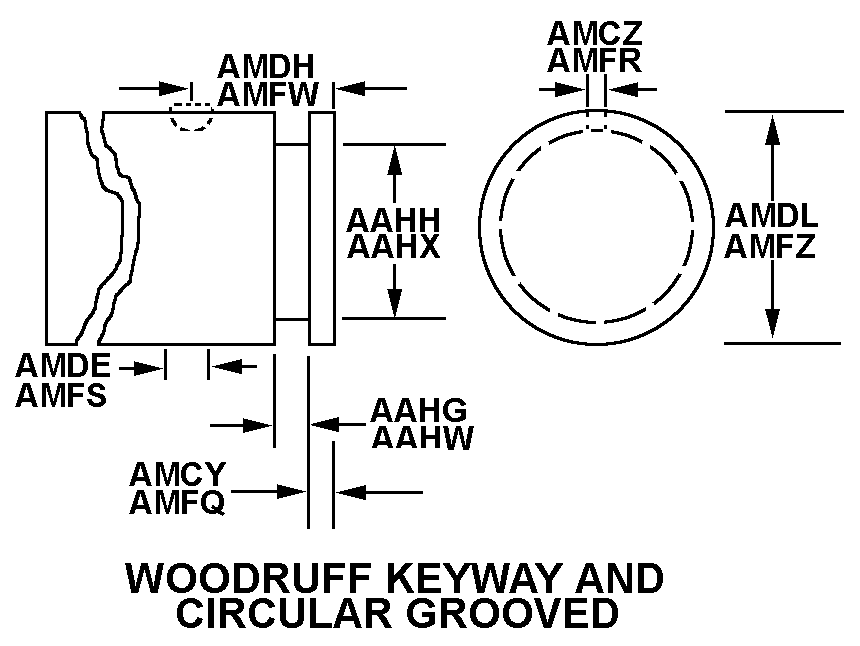

| SECOND END STYLE | 27 WOODRUFF KEYWAY AND CIRCULAR GROOVED |
| SECOND END GROOVE WIDTH | 0.0580 INCHES NOMINAL |
| SECOND END GROOVE DIAMETER | 1.4050 INCHES NOMINAL |
| SECOND END DISTANCE FROM END TO GROOVE | 0.192 INCHES NOMINAL |
| SECOND END KEYWAY WIDTH | 0.2500 INCHES NOMINAL |
| SECOND END EXTERNAL KEYWAY LENGTH | 1.000 INCHES NOMINAL |
| SECOND END DISTANCE FROM KEYWAY CENTER TO END | 1.240 INCHES NOMINAL |
| SECOND END DIAMETER | 1.4990 INCHES MINIMUM AND 1.5000 INCHES MAXIMUM |
| LARGEST STEP DIAMETER | 1.900 INCHES NOMINAL |
| OVERALL LENGTH | 6.280 INCHES NOMINAL |
| STEP QUANTITY | 2 |
| SPECIAL FEATURES | BORE LG OF SHAFT 0.490 IN. NOM DIA |
Restrictions/Controls & Freight Information | NSN 3040-01-096-1620
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126900 | POWER TRANS SHAFTING/SHAFTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-01-096-1620
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
