NSN 3040-01-088-9170 CA113677, CA11367-7, CA12696A PIECE
Product Details | SHOULDERED SHAFT
3040-01-088-9170 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: CA113677, CA11367-7, CA12696A PIECE, CA12696APIECE, 3040-01-088-9170, 01-088-9170, 3040010889170, 010889170
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 23 JAN 1980 | 01-088-9170 | 22914 ( SHAFT, SHOULDERED ) |
Drawings & Photos | NSN 3040-01-088-9170
Demand History | NSN 3040-01-088-9170
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-01-088-9170 | 2006-05-144 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-088-9170
Technical Data | NSN 3040-01-088-9170
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-281 FED SPEC SINGLE MATERIAL RESPONSE |
| FIRST END STYLE | 9 INTERNAL THREADED |
| FIRST END DIAMETER | 1.3300 INCHES NOMINAL |
| FIRST END INTERNAL THREAD LENGTH | 0.750 INCHES NOMINAL |
| END SIMILARITY | NOT IDENTICAL |

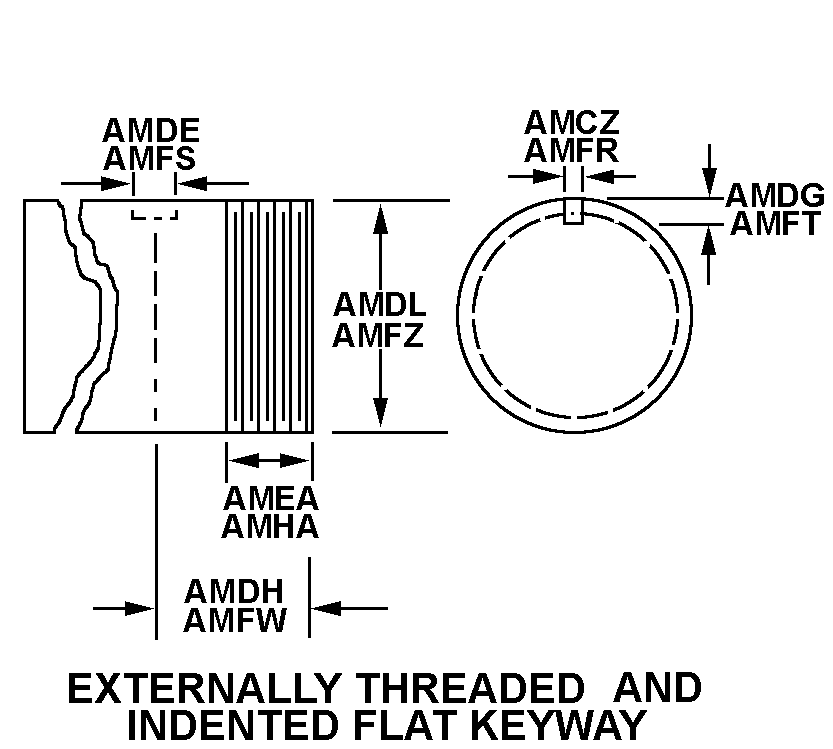

| SECOND END STYLE | 38 EXTERNALLY THREADED AND INDENTED FLAT KEYWAY |
| SECOND END KEYWAY WIDTH | 0.3125 INCHES NOMINAL |
| SECOND END EXTERNAL KEYWAY LENGTH | 1.000 INCHES NOMINAL |
| SECOND END KEYWAY DEPTH | 0.094 INCHES NOMINAL |
| SECOND END DISTANCE FROM KEYWAY CENTER TO END | 0.500 INCHES NOMINAL |
| SECOND END DIAMETER | 1.5585 INCHES NOMINAL |
| SECOND END EXTERNAL THREAD LENGTH | 0.750 INCHES NOMINAL |
| LARGEST STEP DIAMETER | 1.751 INCHES NOMINAL |
| OVERALL LENGTH | 31.313 INCHES NOMINAL |
| STEP QUANTITY | 9 |
