NSN 3040-01-053-2445 12266640, 6558422, 6558-422
Product Details | HUB CLAMP
3040-01-053-2445 An item designed to be mounted around the extended hub portion of a gear, wheel, or the like, to retain it securely to a shaft by compressing the slotted hub body. The item may also be used to clamp around a shaft, or the like, to prevent end motion or to retain it in position. Its compression quality is derived from a screw(s) or bolt(s) which may be a part of the item of supply. For items designed to secure directly to a shaft by use of setscrews, pins, or the like, see COLLAR, SHAFT. Excludes CLAMP, LOOP.
Part Alternates: 12266640, 6558422, 6558-422, 3040-01-053-2445, 01-053-2445, 3040010532445, 010532445
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 31 DEC 1977 | 01-053-2445 | 27781 ( CLAMP, HUB ) |
Drawings & Photos | NSN 3040-01-053-2445
Demand History | NSN 3040-01-053-2445
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-01-053-2445 | 2018-07-200 | 8 | DIBBS |
| 3040-01-053-2445 | 2014-03-82 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3040-01-053-2445
Related Products | NSN 3040-01-053-2445
Technical Data | NSN 3040-01-053-2445
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |

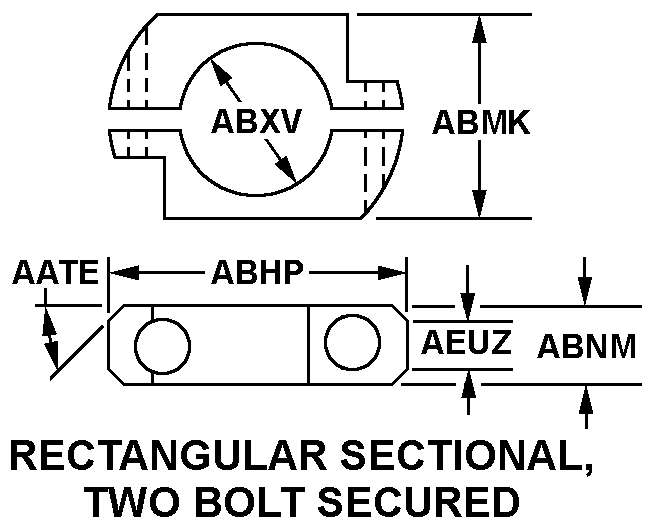

| STYLE DESIGNATOR | B18 RETANGULAR SECTIONAL TWO BOLT SECURED |
| CHAMFER ANGLE IN DEG | ANY ACCEPTABLE |
| THICKNESS | 0.500 INCHES NOMINAL |
| OVERALL LENGTH | 8.400 INCHES NOMINAL |
| OVERALL WIDTH | 6.640 INCHES NOMINAL |
| BORE DIAMETER | 5.4920 INCHES NOMINAL |
| LARGEST DIAMETER LENGTH | ANY ACCEPTABLE |
| CLAMP SECURING HOLE STYLE | 1 UNTHREADED |
| PLAIN HOLE DIAMETER | 0.4020 INCHES MINIMUM AND 0.4100 INCHES MAXIMUM |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 12266640 |
