NSN 3040-01-043-9883 1213041, 1213041101, 1213041-101
Product Details | RIGID CONNECTING LINK
3040-01-043-9883 An item of various cross-sectional shapes which may be of solid or hollow construction. It is specifically designed for attachment to a lever(s) and/or control(s) to actuate various remote mechanisms. It is one of the following: (1) A one-piece item with or without eyes and/or holes in each end which may have bushings or bearings pressed in the eyes; (2) A one-piece item with both ends processed for terminations, excluding threaded end(s); (3) A two-piece construction type item consisting of a body with both ends processed for terminations and a single end attachment; or (4) A three-piece construction type item consisting of a body and two end attachments. Excludes internal combustion engine type piston connecting rods; DRAG LINK, STEERING; LINK, ANCHOR, BRAKE SHOE; TIE ROD, STEERING; and TURNBUCKLE. For cylindrical shaped externally threaded items without end attachments, see ROD, THREADED END and STUD (as modified).
Part Alternates: 1213041, 1213041101, 1213041-101, 3040-01-043-9883, 01-043-9883, 3040010439883, 010439883
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 05 JUL 1977 | 01-043-9883 | 21988 ( CONNECTING LINK, RIGID ) |
Drawings & Photos | NSN 3040-01-043-9883
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-043-9883
Technical Data | NSN 3040-01-043-9883
| Characteristic | Specifications |
|---|---|
| BODY CONSTRUCTION | TUBULAR |

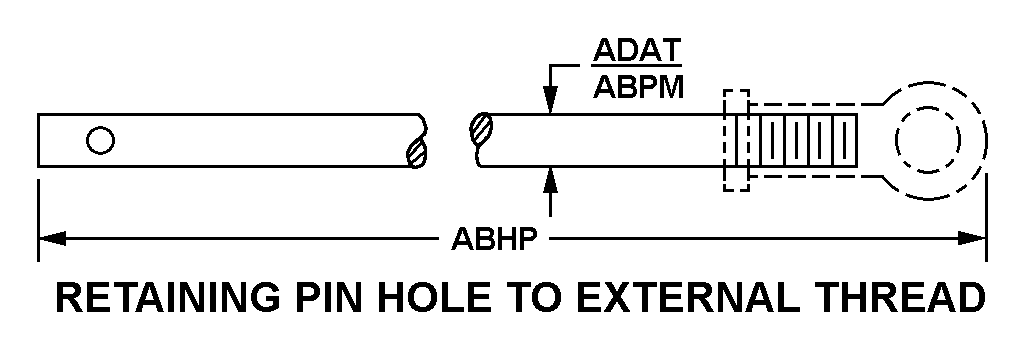

| LINK STYLE | A30 RETAINING PIN HOLE TO EXTERNAL THREAD |
| BODY DIAMETER | 0.500 INCHES NOMINAL |
| END ATTACHMENT STYLE | B1 EYE FIRST END |
| (NON-CORE DATA) MATERIAL | ALUMINUM ALLOY, WW-T-700/3, T42 |
Restrictions/Controls & Freight Information | NSN 3040-01-043-9883
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095630 | LAP/CONNECTING LINKS/RINGS STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-01-043-9883
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
