NSN 3040-01-043-3735 28909611, 2890961-1, 01-043-3735
Product Details | HUB CLAMP
3040-01-043-3735 An item designed to be mounted around the extended hub portion of a gear, wheel, or the like, to retain it securely to a shaft by compressing the slotted hub body. The item may also be used to clamp around a shaft, or the like, to prevent end motion or to retain it in position. Its compression quality is derived from a screw(s) or bolt(s) which may be a part of the item of supply. For items designed to secure directly to a shaft by use of setscrews, pins, or the like, see COLLAR, SHAFT. Excludes CLAMP, LOOP.
Part Alternates: 28909611, 2890961-1, 3040-01-043-3735, 01-043-3735, 3040010433735, 010433735
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 23 JUN 1977 | 01-043-3735 | 27781 ( CLAMP, HUB ) |
Drawings & Photos | NSN 3040-01-043-3735
Cross Reference | NSN 3040-01-043-3735
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2890961-1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-043-3735
Technical Data | NSN 3040-01-043-3735
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-764, TYPE 416, COND B-CANCELED |
| SURFACE TREATMENT | PASSIVATED, QQ-P-35 |

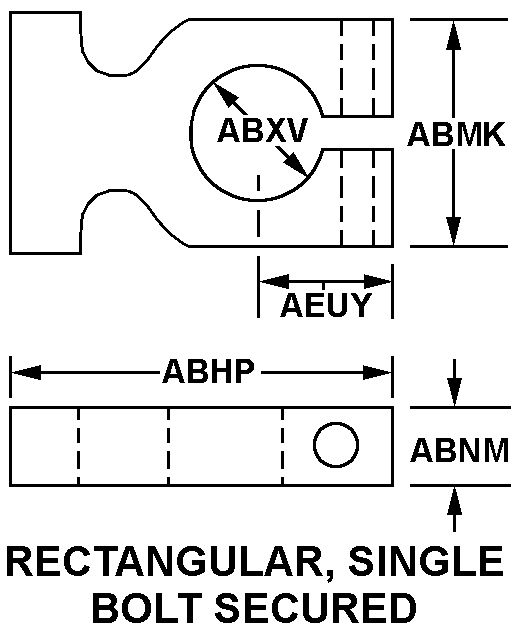

| STYLE DESIGNATOR | B12 RECTANGULAR, SINGLE BOLT SECURED |
| THICKNESS | 0.245 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| OVERALL LENGTH | 0.812 INCHES NOMINAL |
| OVERALL WIDTH | 0.437 INCHES NOMINAL |
| BORE DIAMETER | 0.3130 INCHES MINIMUM AND 0.3140 INCHES MAXIMUM |
| DISTANCE FROM BORE CENTERLINE TO END | 0.248 INCHES MINIMUM AND 0.252 INCHES MAXIMUM |

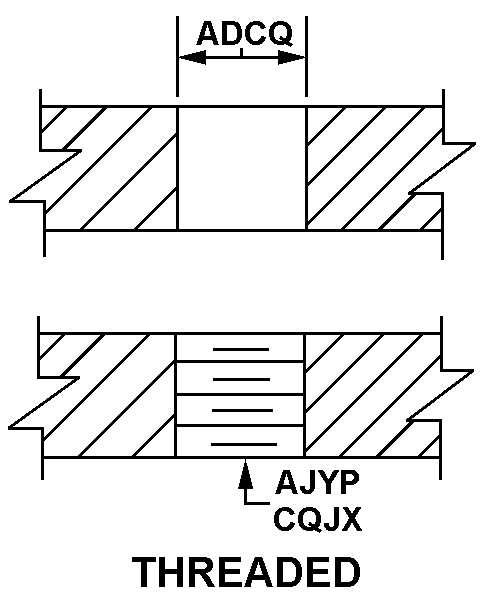

| CLAMP SECURING HOLE STYLE | 2 THREADED |
| PLAIN HOLE DIAMETER | 0.1380 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| BALANCE TYPE | DYNAMIC |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 2890961-1 |
